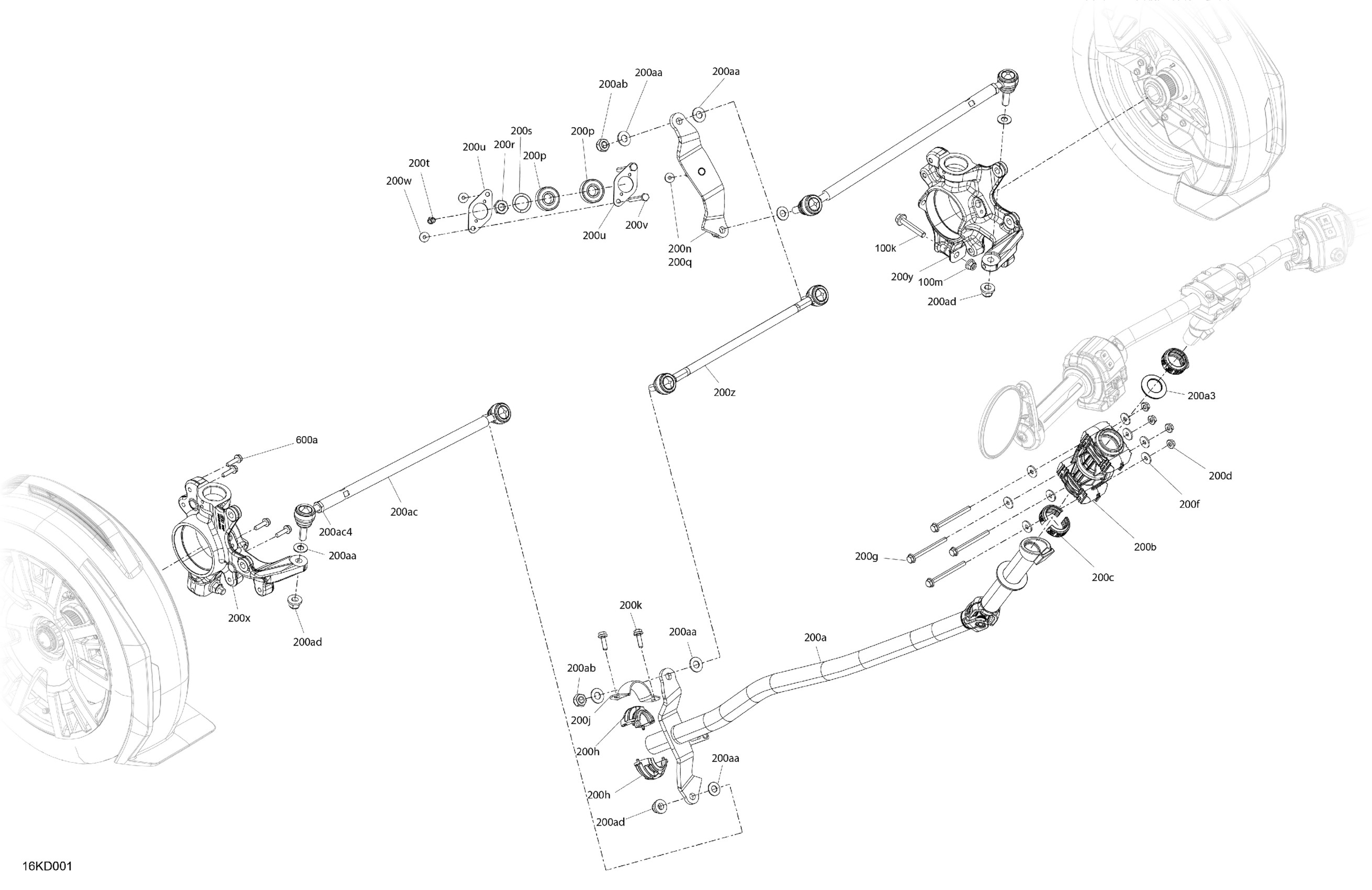

Can-Am North America - RYKER 600 ACE - F1RC - STD - CARB - Deep Black, 2024 03- Mechanic - Steering Column Diagram

Description

Price

600a

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

100k

Hex. Flange Screw M10 X 55

207605554

$7.62

100m

Flange Elastic Nut M10

233201466

$3.17

200a

Steering Shaft | Included 10 to 10a

709401876

$199.99

200a3

Washer

709402509

Unavailable

200b

Steering Bushing

709403149

$9.75

200c

Upper Vibration Damper

709402920

$5.39

200d

Hex. Flange Nut M6

233161414

$2.11

200f

Flat washer M6

250200164

$1.01

200g

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

200h

Half Bushing

709402919

$4.12

200j

RH Lower Column Attachment

709401969

$4.59

200k

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

200n

Pitman Arm Kit | Included 150 to 150a

219800520

$33.99

200p

Bearing

709402450

$6.88

200q

Pitman Arm Kit | Included 150 to 150a

219800520

$33.99

200r

Hex. Jam Nut M12

250100216

$2.40

200s

Spring Washer

250001192

$1.19

200t

Sensor Sleave

709401527

$3.09

200u

Sensor Support

709402096

$3.89

200v

Hex. Screw M6 X 65

207066544

$0.46

200w

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

200x

LH Knuckle

709401922

$179.99

200y

RH Knuckle

709401923

$179.99

200z

Tie Rod Ass'y

709401954

$116.49

200aa

Washer

506152582

$4.55

200ab

Elastic Flange Nut M10

232501416

$1.48

200ac

Tie Rod Ass'y | Included 300 to 300a

709401953

$116.49

200ac4

RH Threaded Hex. Jam Nut M10

732610010

$0.74

200ad

Hex. Flange Elastic Nut M10

250100165

$0.85
