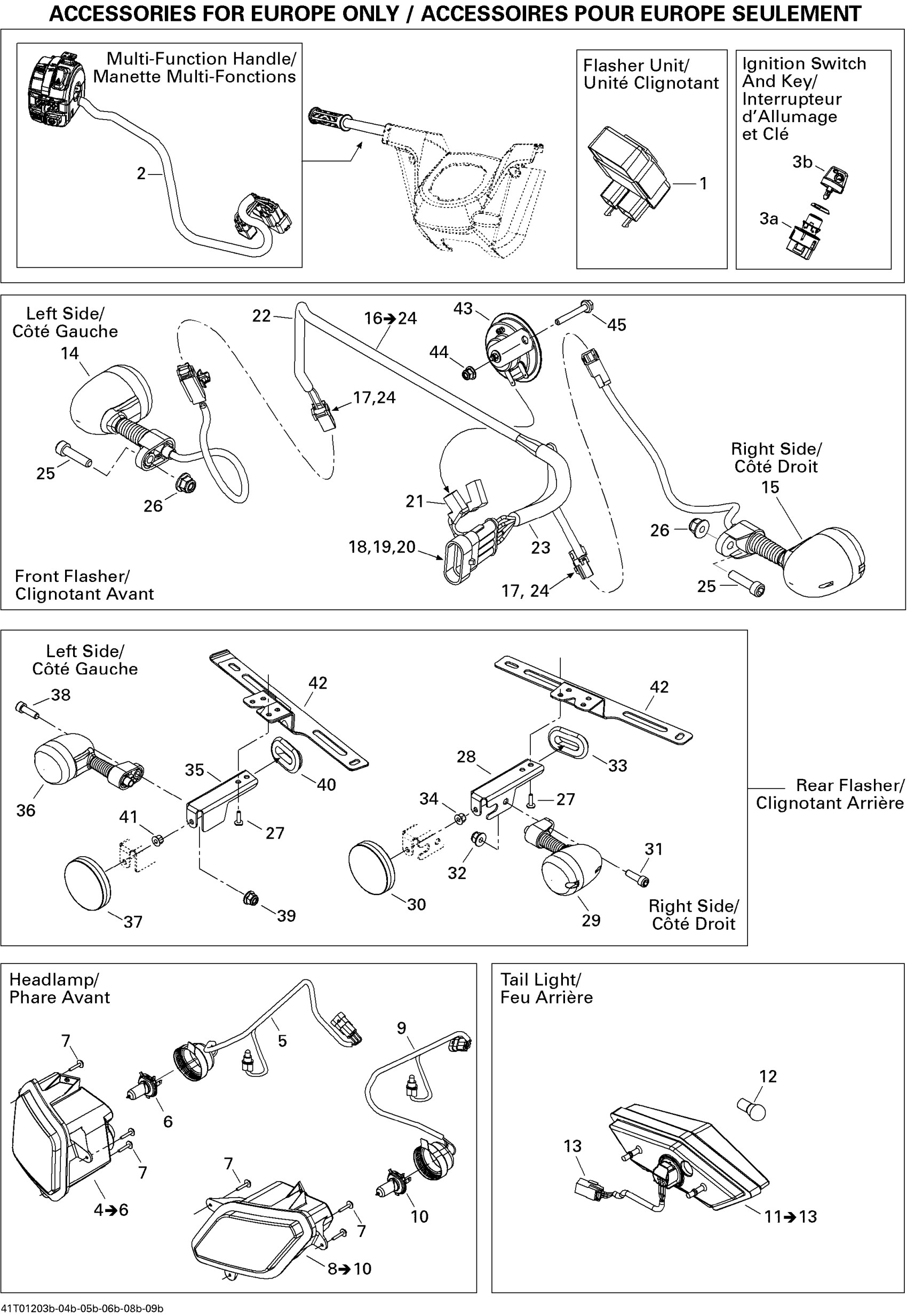

Can-Am Outlander MAX 500EFI STD & XT, 2012 10- Electrical Accessories Europe Diagram

#

Description
Price

1

Flasher Unit

710003239

$78.49

2

Multi-Function Handle

710004040

$179.99

3a

Ignition Switch | Includes 16 to 17

710002324

$79.49

3b

Black, Electronic Key

710000817

$63.49

4

RH Headlamp Ass'y | Includes 11 to 13

710000861

$134.99

5

Headlamp Harness

710000923

$48.99

6

Bulb, 12V 35/35W

710000871

$34.99

7

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

8

LH Headlamp Ass'y | Includes 14 to 16

710000862

$134.99

9

Headlamp Harness

710000923

$48.99

10

Bulb, 12V 35/35W

710000871

$34.99

11

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$56.99

12

Bulb

520000758

$9.10

13

Male Housing, 3 Circuits

515175494

$16.18

14

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

15

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

16

FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26

710001495

Unavailable

17

Female Terminal

515175231

$4.39

18

Male Terminal | Europe Models

409012900

$3.28

19

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

20

Wire Seal

278001013

$3.28

21

Female Terminal

409010300

$4.39

22

Tubing 6 Mm 3000Mm Long

219704425

$13.75

23

Was 409901700 Tubing (9 mm)

219704399

$84.99

24

Female Terminal Housing, 2 Circuits

515176296

$5.89

25

Socket Head Screw M6 X 25

205062544

$1.15

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Pop Rivet 3/16"

390402400

$0.35

28

BRACKET - Call your local BRP dealership

710001329

Unavailable

29

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

30

Red Reflector

705011221

$14.49

31

Socket Head Screw M6 X 20

205062044

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Oblong Grommet

705003668

$5.79

34

Hex. Flange Elastic Nut M5

233251414

$1.04

35

BRACKET - Call your local BRP dealership

710001330

Unavailable

36

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

37

Red Reflector

705011221

$14.49

38

Socket Head Screw M6 X 20

205062044

$1.26

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Oblong Grommet

705003668

$5.79

41

Hex. Flange Elastic Nut M5

233251414

$1.04

42

BRACKET - Call your local BRP dealership

710001241

Unavailable

43

Horn

710004791

$38.99

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

Hex. Flange Screw M6 X 45

207664544

$1.46
