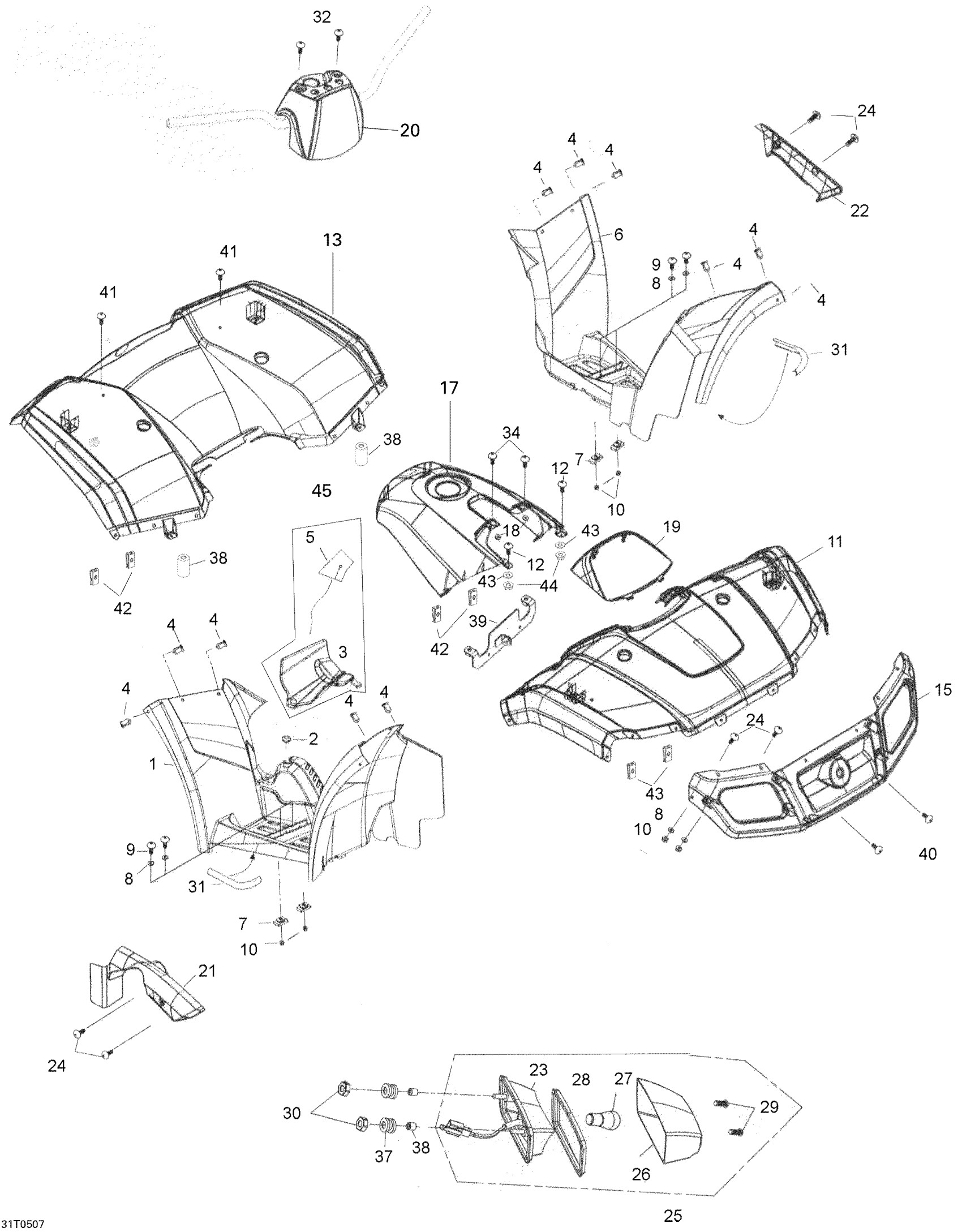

Can-Am Rally 175, 2005 09- Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Black

A64312179000

Unavailable

2

REAR COVER RUBBER - Call your local BRP dealership

A83406179000

Unavailable

3

CHAIN COVER - Call your local BRP dealership

705000870

Unavailable

4

Tuflok Plastic Rivet

A90663179000

Unavailable

5

Reflective Sheet

705000563

Unavailable

6

LH Footboard, Black

A64313179000

Unavailable

7

Rubber Stopper

705000407

Unavailable

8

Washer M6

250200029

$2.50

9

PAN HEAD SCREW PHILLIPS M6 X 32 - Call your local BRP dealership

A9380006032k

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Front Fender- Luggage Rack (green(b-204)

A64301179000DG

Unavailable

11

Front Fender, Red

A64301179000RD

Unavailable

11

Front Fender, Yellow

A64301179000YL

Unavailable

12

PAN HEAD SCREW PHILLIPS M6 X 25 - Call your local BRP dealership

A9370106025k

Unavailable

13

Rear Fender (green (b-204))

A83400179000DG

Unavailable

13

REAR FENDER, RED - Call your local BRP dealership

A83400179000RD

Unavailable

13

Rear Fender, Yellow

A83400179000YL

Unavailable

14

Hex. Flange Nut M8

233081416

$1.15

15

Front Fascia, green, b-204

A64321179000DG

Unavailable

15

Front Fascia, Red

A64321179000RD

Unavailable

15

Front Fascia, Yellow

A64321179000YL

Unavailable

16

Flat Washer

224060201

$1.26

17

Dash Board (green (b-204))

A64501179000DG

Unavailable

17

Viper Red, Dashboard

A64501179000RD

Unavailable

17

Dash Board, yellow, b-190)

A64501179000YL

Unavailable

18

Oval Washer

705005156

$4.97

19

CONSOLE COVER (GREEN (B-204)) - Call your local BRP dealership

A64502179000DG

Unavailable

19

CONSOLE COVER, RED - Call your local BRP dealership

A64502179000RD

Unavailable

19

CONSOLE COVER, YELLOW - Call your local BRP dealership

A64502179000YL

Unavailable

20

Steering Cover

A64211179000

Unavailable

21

RH PANEL - Call your local BRP dealership

A83505179000

Unavailable

22

LH PANEL - Call your local BRP dealership

A83506179000

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

PHILLIPS SCREW M6 X 18 - Call your local BRP dealership

A9370106018KL

Unavailable

25

Tail Light Housing | Includes 25 To 29

A33700179000

Unavailable

26

TAIL LIGHT LENS, RED - Call your local BRP dealership

A33702179000

Unavailable

27

Bulb

520000758

$9.10

28

Gasket

A33717179000

Unavailable

29

Screw M4 X 35

A9390304035

Unavailable

30

Nut-flange Elastic M4

A9405004000

Unavailable

31

Gasket, Neoprene 2000Mm Long

219704476

$15.36

32

PAN HEAD SCREW PHILLIPS M6 X 15 - Call your local BRP dealership

A9370106015k13

Unavailable

33

Phillips Tapping Screw M5 X 16 | Not Illustrated

A9390305016k

Unavailable

34

Hexagonal Head Screw

210262050

$2.11

35

Hex. Flange Screw M6 X 10 | Not Illustrated

A9600006010

$2.19

36

Hex. Flange Screw M6 X 16

207661644

$0.74

37

Tail Light Rubber Ring

A33713179000

Unavailable

38

Tail Light Rubber Ring Spacer

A33718179000

Unavailable

39

Dash Board Bracket

A64504179000

Unavailable

40

Phillips Screw M6 X 18

A9370106018k

Unavailable

41

PHILLIPS SCREW M6 X 60 - Call your local BRP dealership

A9370106060

Unavailable

42

U Plate Nut

A903440600B

Unavailable

43

Washer M6

250200029

$2.50

44

NYLON NUT M6 - Call your local BRP dealership

A9035006000

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable
