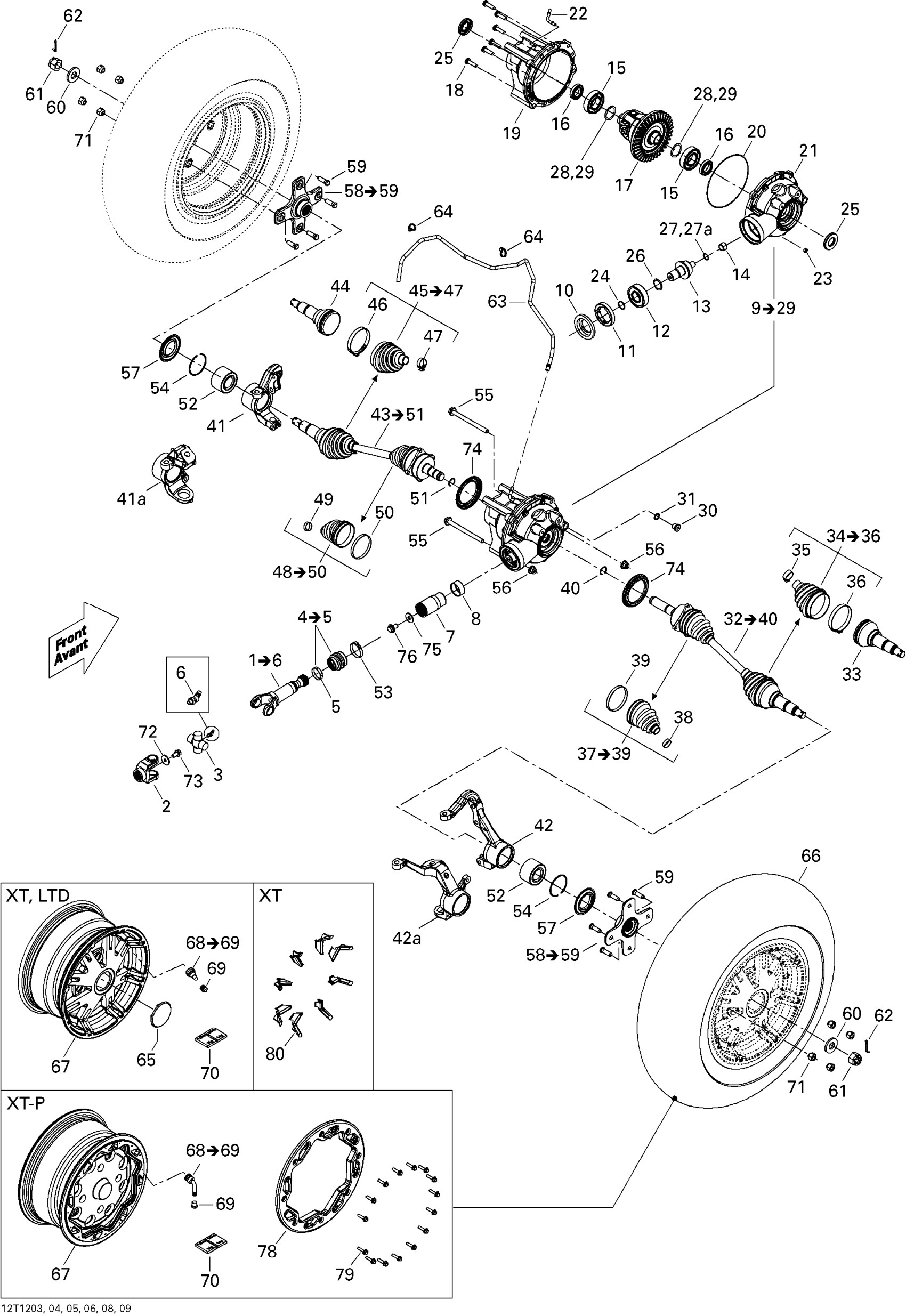

Can-Am Outlander MAX 500EFI STD & XT, 2012 07- Drive System, Front Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$270.49

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

6

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

7

Front Bushing Shaft Kit | 4X4

703500678

$114.99

8

Wear Ring | 4X4

705400036

$26.49

9

Front Differential | Includes 8 to 31

703500907

$1,579.99

9

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

10

Oil Seal | 4X4

705401481

$19.49

11

Nut | 4X4

705401603

$35.99

12

Ball Bearing | 4X4

705500260

$31.99

13

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

14

Needle Bearing

705501408

$69.99

15

Ball Bearing | 4X4

705401606

$51.99

16

Ball Bearing | 4X4

293350044

$31.99

17

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

17

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

18

Screw | 4X4

705401601

$10.49

19

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

20

Seal | 4X4

705500265

$18.76

21

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

22

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

23

Drain Plug | 4X4

705500894

$11.49

24

O-Ring | 4X4

705500267

$7.65

25

Gasket | 4X4

705401618

$18.49

26

Pinion Gear Shim 1.67 mm

705502061

$18.99

27

Pinion Gear Shim .022"

705500075

Unavailable

27a

Pinion Gear Shim

705501162

$16.49

28

Shim | 4X4

705401604

$57.99

29

Shim | 4X4

705401604

$57.99

30

Fill Level Plug | 4X4

705500504

$10.01

31

Copper Washer | 4X4

705500506

$0.45

32

RH Half Shaft | Includes 34 to 39

705401579

$243.99

33

CV Joint

705500560

Unavailable

34

Wheel Boot Kit

705400511

$42.49

35

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

36

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

37

Differential Boot Kit

705400512

$42.49

38

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

39

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH Knuckle

705400816

$206.49

41a

Not Available As Spare Parts

XXX

Unavailable

42

RH Knuckle

705400818

$206.49

42a

Not Available As Spare Parts

XXX

Unavailable

43

LH Half Shaft | Includes 42 to 47

705401578

$243.99

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$42.49

46

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

47

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

48

Differential Boot Kit

705400512

$42.49

49

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

50

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$52.99

53

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

54

Circlip

293370019

$4.68

55

Hex. Flange Screw M10 X 125

230602546

$7.41

56

Hex. Flange Elastic Nut M10

233201436

$2.11

57

Wear Sleeve | 4X4

705501121

$7.90

58

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

59

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

60

Conical Spring Washer M18

250200171

$7.65

61

Hex. Flange Castellated Nut M18

232291413

$7.98

62

Cotter Pin

250400036

$2.11

63

Polyurethane Hose 10000Mm Long

219704410

$56.99

64

Tie-Rap 180 mm

414115200

$0.11

65

WHEEL CAP - Call your local BRP dealership

705400680

$15.49

66

Tire 205 X 80 R12

705402890

$153.49

66

Front Tire | XT

705400606

$134.99

66

Front Tire | XT

705400326

$134.99

67

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400853

Unavailable

67

RIM_12 INCH X 6 - Call your local BRP dealership | XT Camo, XT-P

705400687

Unavailable

67

RIM_12 INCH X 6 - Call your local BRP dealership | XT (Except Camo)

705400648

Unavailable

68

Rim Valve With Cap

705400193

$8.69

69

Valve Cap

293000110

$1.59

70

1/2 Oz Weight

219704465

$3.89

71

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

71

Black, Wheel Nut M10 X 1.25

250100184

$4.51

72

Flat Washer M12

250200102

$2.11

73

Hex Flange Screw M12 X 16

250001039

$2.11

74

Wear Sleeve

705400780

$7.90

75

Flat Washer M12

250200102

$2.11

76

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

78

Not Available As Spare Parts

XXX

Unavailable

79

Not Available As Spare Parts

XXX

Unavailable

80

Not Available As Spare Parts

XXX

Unavailable
