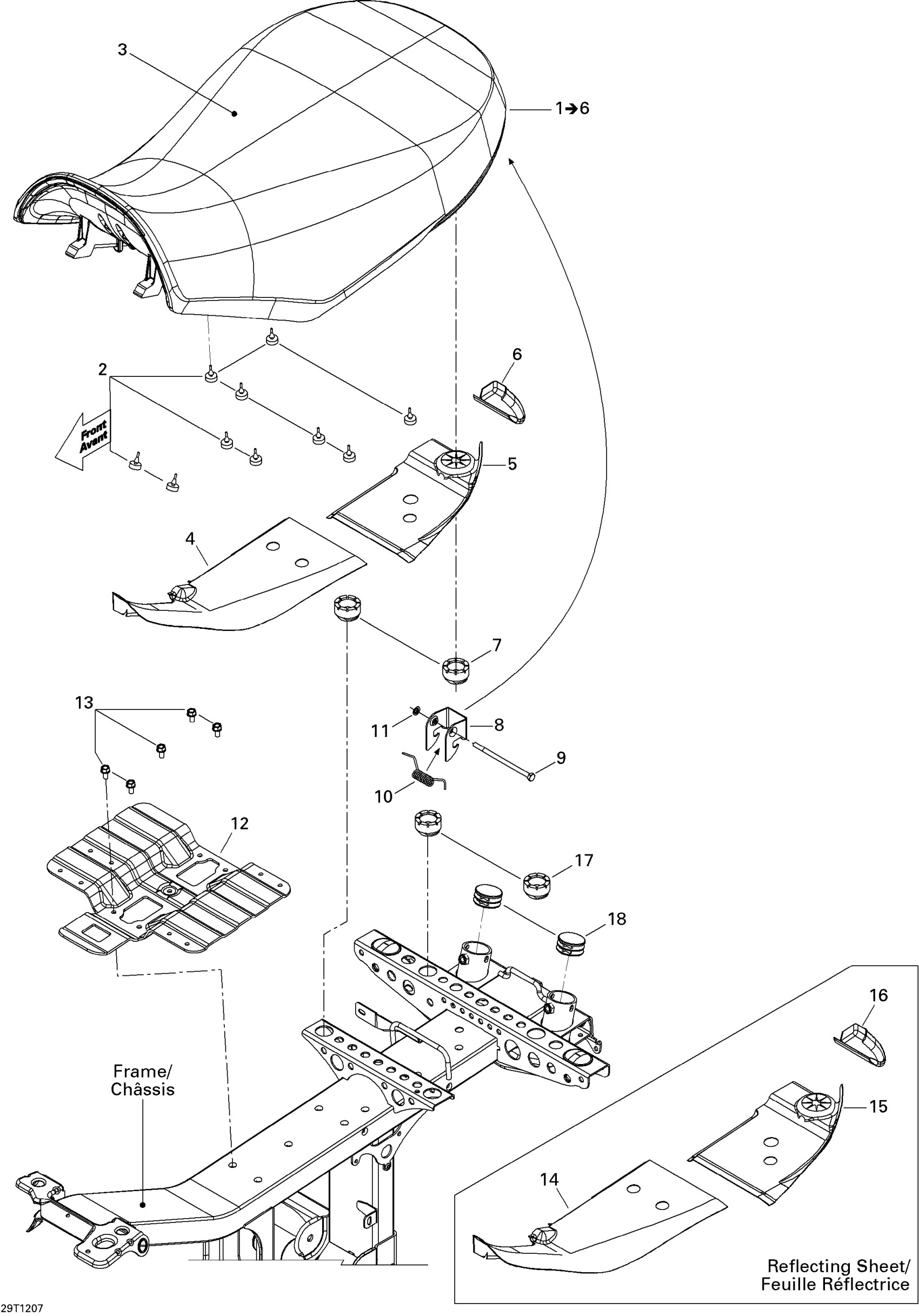

Can-Am Outlander 800REFI Xmr, 2012 09- Seat Diagram

#

Description
Price

1

SEAT ASSEMBLY - Call your local BRP dealership | Includes 1 to 3

708001736

Unavailable

2

Rubber Stopper

708000759

$4.19

3

Seat Cover

708000731

$99.49

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000955

Unavailable

6

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

7

Bumper Rubber

708000760

$10.49

8

Latch, Black

708000144

$11.99

9

Hex. Screw M6 X 110

230061034

$2.11

10

Spring

708000369

$9.19

11

Push Nut

732610072

$2.19

12

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.90

14

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

15

REFLECTING SHEET - Call your local BRP dealership

708000955

Unavailable

16

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

17

Bumper Rubber

708000760

$10.49

18

Cap

705202455

$5.69
