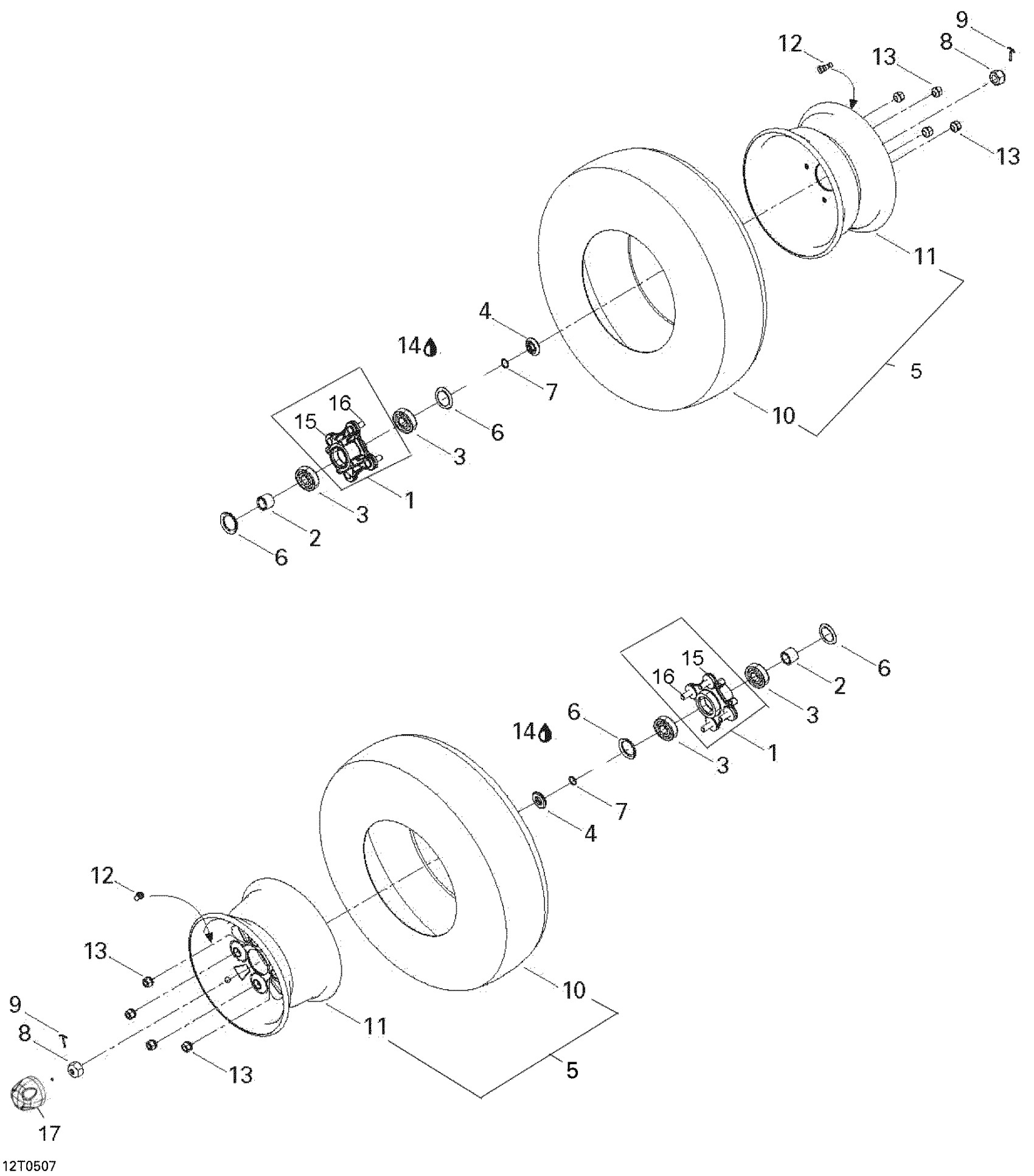

Can-Am Rally 175, 2005 07- Drive System, Front Diagram

#

Description
Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership

A42709179000

Unavailable

2

INSIDE BUSHING - Call your local BRP dealership

705400113

Unavailable

3

BALL BEARING - Call your local BRP dealership

293350036

Unavailable

4

OUTSIDE BUSHING - Call your local BRP dealership

705400235

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

SEAL - Call your local BRP dealership

293250094

Unavailable

7

O-RING - Call your local BRP dealership

293300058

Unavailable

8

Elastic Stop Nut M18

232591414

$4.39

9

Cotter Pin

250400036

$2.11

10

TIRE-FRONT - Call your local BRP dealership

A42711179000

$98.99

11

Front Rim

705400242

Unavailable

12

Rim Valve With Cap

705400193

$8.69

13

Steel Wheel Nut

250100042

$3.98

14

Synthetic Grease, 400 G

293550010

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Wheel Stud

250300013

$3.19

17

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable
