Description

Price

1

Cylinder Head Gasket | 400HO

420630195

$80.49

2a

Cylinder Head | Includes 2 to 3

420413397

$660.49

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$14.22

4

Intake Valve 31MM

420254359

$35.99

5

Exhaust Valve 27MM

420254368

$69.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.18

8

Valve Spring

420239295

$14.28

9

Valve Spring Retainer

420254132

$14.28

10

Cotter Valve

420254120

$4.12

11

Torx Screw M10X140

420641551

$14.28

12

Torx Flange Screw M6 X 85

420641228

$7.41

13

Camshaft

420620027

Unavailable

14

Torx Screw M6 X 16

420241529

$2.11

15

Holding Strip

420627743

$18.49

16

Bearing Screw M6

420240943

$5.24

17

Chain Tension Guide

420436015

$29.49

18

Chain Guide

420236584

$7.51

19

Chain Guide

420236351

$14.81

20

Silent Chain

420297063

$65.49

21

Camshaft Sprocket

420254434

$36.99

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.41

23

Temperature Sensor

278002895

$39.99

24

Chain Tensioner Housing

420236510

$11.63

25

O-Ring

420430373

$3.17

26

Torx Flange Screw M6 X 25

420641238

$3.27

27

Chain Tensioner Plunger

420236521

$14.83

28

Spring

420238120

$7.41

29

O-Ring

420250890

$3.06

30

Plug Screw

420641150

$7.41

31

Pin #12, Small, M6 X 90

420229712

$15.89

32

Shim

420944382

$4.12

33

Inlet Rocker Arm

420254907

$142.99

34

Exhaust Rocker Arm

420254911

$147.99

35

Adjustment Screw M6 X 0.75

420241337

$5.07

36

Hex Nut M6

420242913

$0.53

37

Allen Screw M6 x 30,5

420440561

$4.44

38

Gasket

420630260

$26.49

39

Valve Cover

420610393

$26.49

40

Spacer Ass'y | Includes 40 to 41

420927837

$7.41

41

Thermostat Gasket

420650300

$8.57

42

Thermostat Cover

420222696

$3.17

43

Gasket Ring

420650255

$4.12

44

Screw M5 X 16

420441621

$3.17

45

Torx Flange Screw M6 X 25

420641238

$3.27

46

Spark Plug, NGK DCP-R8E

715900637

$6.35

47

Valve Guide

420254374

$27.99

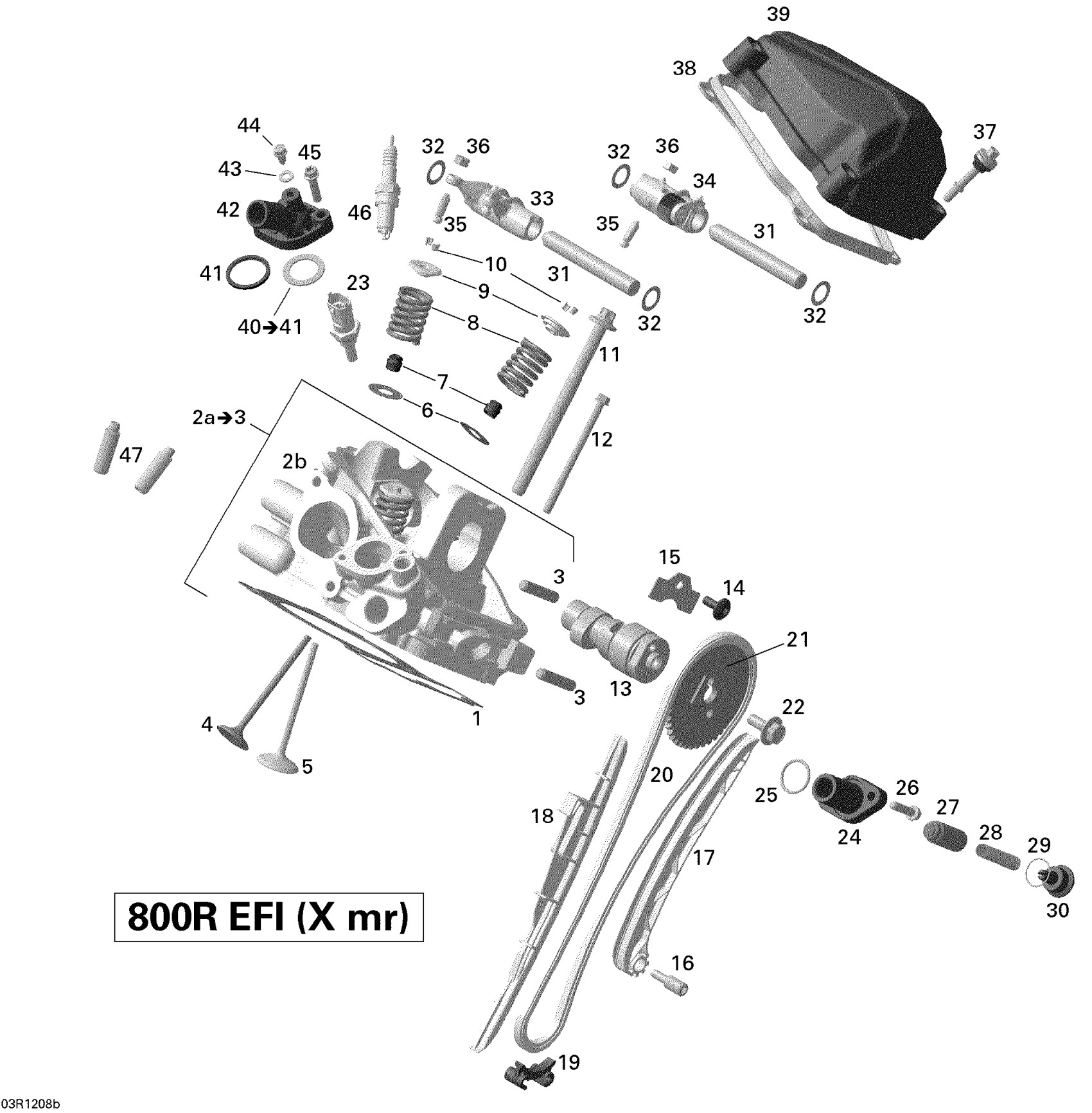

Can-Am Outlander 800REFI Xmr, 2012 01- Cylinder Head, Rear Diagram

Cylinder Head Gasket | 400HO

Cylinder Head | Includes 2 to 3

Not Available As Spare Part - Friction Washer

Stud M8 x 26

Intake Valve 31MM

Exhaust Valve 27MM

Thrust Washer

Valve Stem Seal

Valve Spring

Valve Spring Retainer

Cotter Valve

Torx Screw M10X140

Torx Flange Screw M6 X 85

Camshaft

Torx Screw M6 X 16

Holding Strip

Bearing Screw M6

Chain Tension Guide

Chain Guide

Chain Guide

Silent Chain

Camshaft Sprocket

Hex. Collar Screw M8 X 20 | 330HO

Temperature Sensor

Chain Tensioner Housing

O-Ring

Torx Flange Screw M6 X 25

Chain Tensioner Plunger

Spring

O-Ring

Plug Screw

Pin #12, Small, M6 X 90

Shim

Inlet Rocker Arm

Exhaust Rocker Arm

Adjustment Screw M6 X 0.75

Hex Nut M6

Allen Screw M6 x 30,5

Gasket

Valve Cover

Spacer Ass'y | Includes 40 to 41

Thermostat Gasket

Thermostat Cover

Gasket Ring

Screw M5 X 16

Torx Flange Screw M6 X 25

Spark Plug, NGK DCP-R8E

Valve Guide
