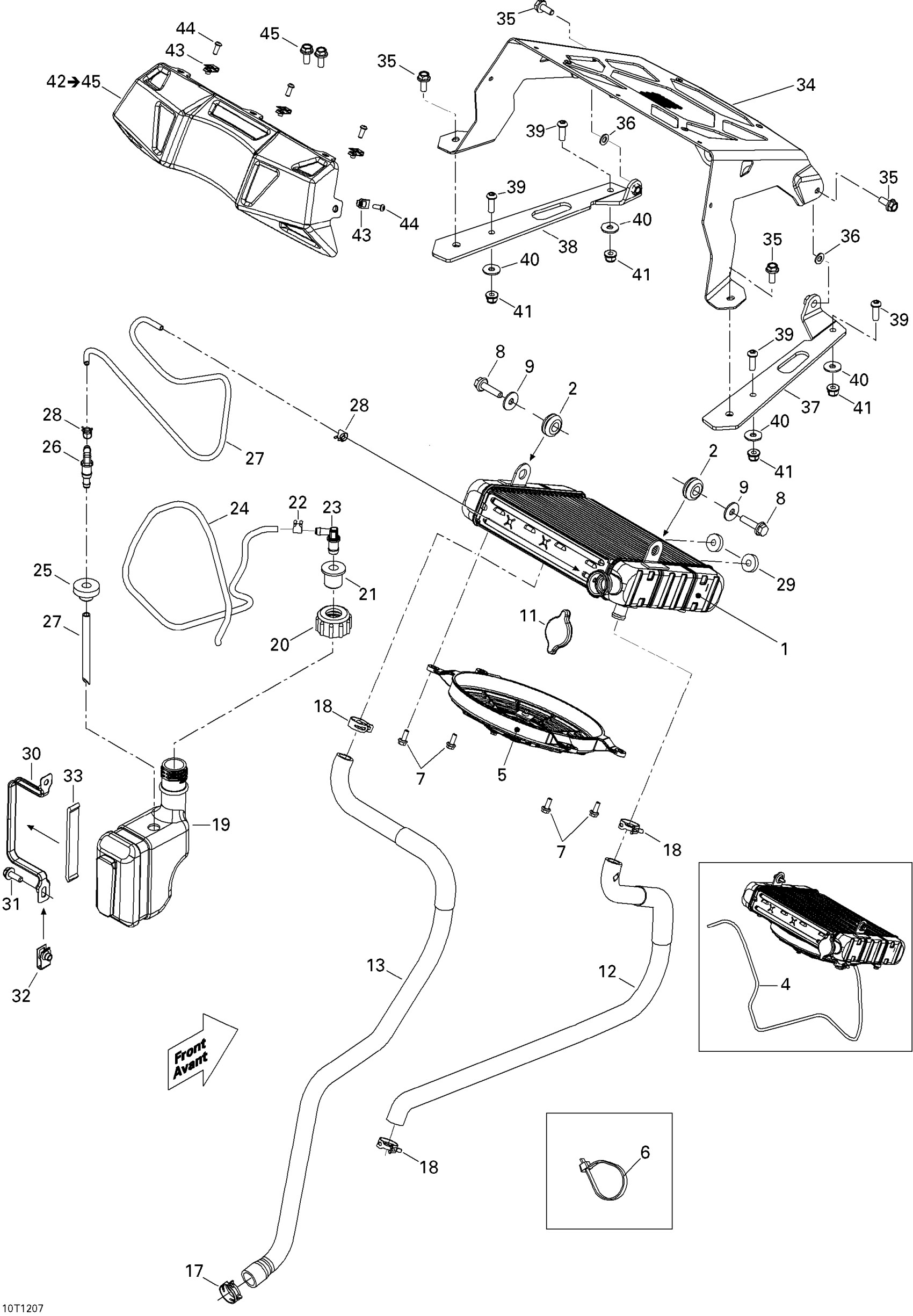

Can-Am Outlander 800REFI Xmr, 2012 01- Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200410

Unavailable

2

Grommet

293720062

$5.39

4

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

5

FAN - Call your local BRP dealership

709200332

Unavailable

6

Tie-Rap 180 mm

414115200

$0.11

6

Tie Wrap 368 mm

293750008

$1.04

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

Hex. Flange Screw M6 X 25

207562544

$1.69

9

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

11

Radiator Pressure Cap

709200207

$25.49

12

RADIATOR INLET HOSE - Call your local BRP dealership

709200334

Unavailable

13

OUTLET HOSE - Call your local BRP dealership

709200335

Unavailable

17

Norma Spring Clamp

293650108

$4.12

18

Norma Spring Clamp

293650109

$4.12

19

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

20

Cap

709200586

$11.11

21

Grommet

293830136

$10.07

22

Spring Clamp

414554800

$0.88

23

Male Connector

414580700

$4.12

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Grommet

709200285

$9.69

26

Elbow Male Connector

414580600

$4.23

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

28

Spring Clamp

414554800

$0.88

29

Grommet

709200285

$9.69

30

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

31

Hex. Flange Screw M6 X 16

210261650

$1.67

32

Panel Nut M6 X 1.0

250100198

$2.11

33

Gasket, Neoprene 2000Mm Long

219704476

$15.36

34

RADIATOR SUPPORT - Call your local BRP dealership

709200349

Unavailable

35

Hex Screw Washer Head M8 X 20

207582054

$3.17

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

R.H. SUPPORT - Call your local BRP dealership

709200353

Unavailable

38

L.H. SUPPORT - Call your local BRP dealership

709200354

Unavailable

39

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

40

Washer

211200041

$3.17

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

COVER PACKAGE ASS'Y - Call your local BRP dealership | Includes 42 to 45

703100288

Unavailable

43

Panel Nut M6 X 1.0

250100198

$2.11

44

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

45

Hex Screw Washer Head M8 X 20

207582054

$3.17
