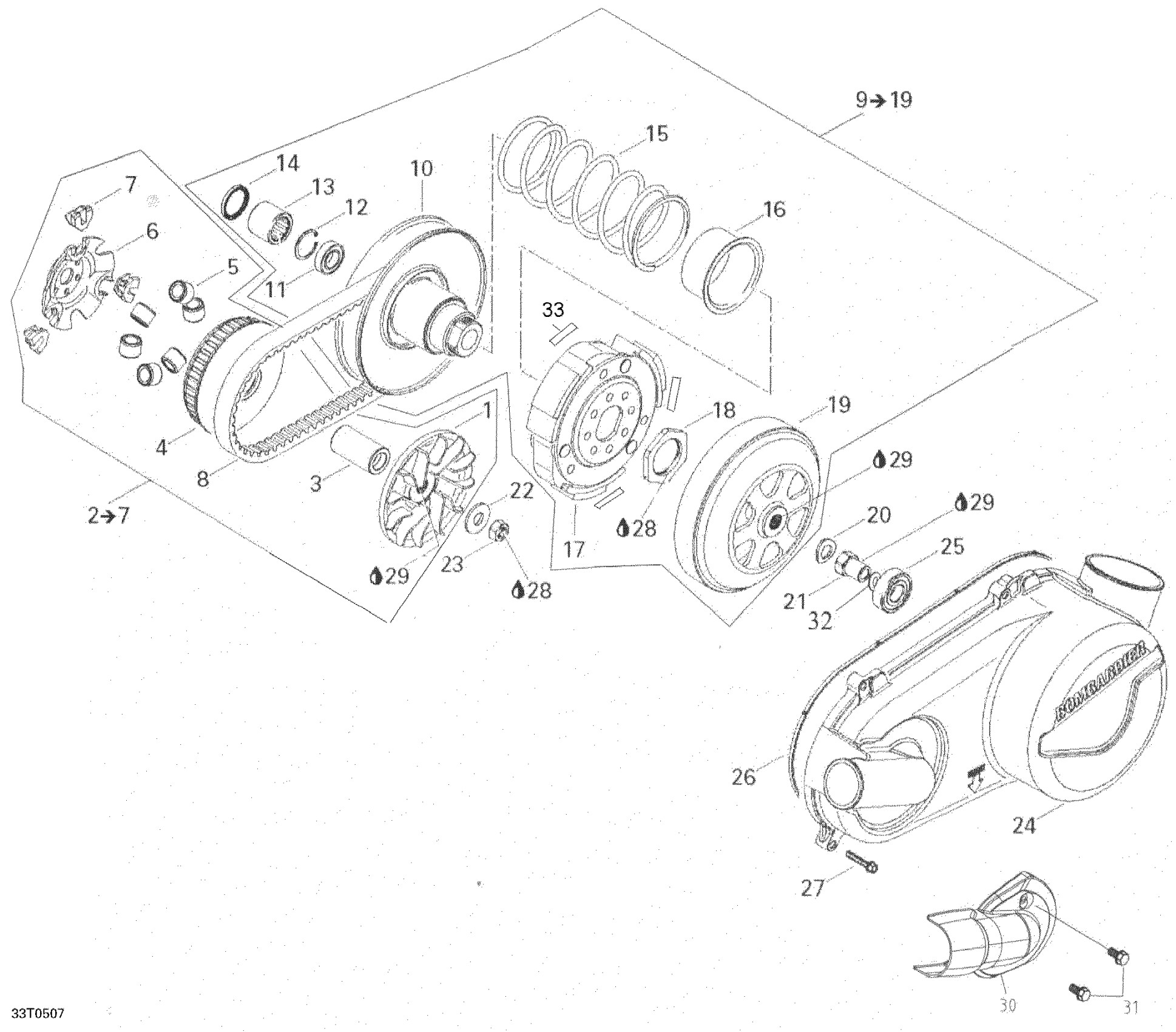

Can-Am Rally 175, 2005 05- Pulley System Diagram

#

Description
Price

1

Fixed Pulley

420280092

Unavailable

2

CVT DRIVE UNIT ASS?Y - Call your local BRP dealership | Includes 2 To 7

420296785

Unavailable

3

Spacer

420233779

Unavailable

4

Primary Drive Pulley

420280117

Unavailable

5

ROLLER KIT - Call your local BRP dealership

420281310

Unavailable

6

Ramp Plate

420259657

Unavailable

7

SLIDE PIECE, 3 PIECES - Call your local BRP dealership

420281320

Unavailable

8

BELT-V - Call your local BRP dealership

A23100179000

Unavailable

9

CVT Driven Unit Ass’y | Includes 9 To 19

420684010

Unavailable

10

CVT DRIVEN UNIT - Call your local BRP dealership

420684011

Unavailable

11

BALL BEARING - Call your local BRP dealership

420632420

Unavailable

12

RETAINING RING - Call your local BRP dealership

420945615

Unavailable

13

Sprag Clutch

420659400

Unavailable

14

OIL SEAL - Call your local BRP dealership

420631090

Unavailable

15

SPRING - Call your local BRP dealership

420239402

Unavailable

16

Spring Seat

420627172

Unavailable

17

CLUTCH ASS?Y - Call your local BRP dealership

420659252

Unavailable

18

HEX. NUT M10 - Call your local BRP dealership

420242040

Unavailable

19

CLUTCH DRUM - Call your local BRP dealership

420259664

Unavailable

20

LOCK WASHER - Call your local BRP dealership

420945754

Unavailable

21

NUT M12 - Call your local BRP dealership

420242230

Unavailable

22

Thrust Washer

420227180

$12.71

23

HEX. NUT M12 - Call your local BRP dealership

420242515

Unavailable

24

Transmission Cover

A11341179000

Unavailable

25

BALL BEARING - Call your local BRP dealership

A961006203LLU

Unavailable

26

Rubber Gasket

A11359179000

Unavailable

27

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

28

Loctite 243, 10 ml

293800060

$21.49

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

CVT Cover

A11347179000

Unavailable

31

Torx Screw M6 X 12

A9151006012

Unavailable

32

O-RING - Call your local BRP dealership

293300058

Unavailable

33

SPRING PLATE - Call your local BRP dealership

A22540201000

Unavailable
