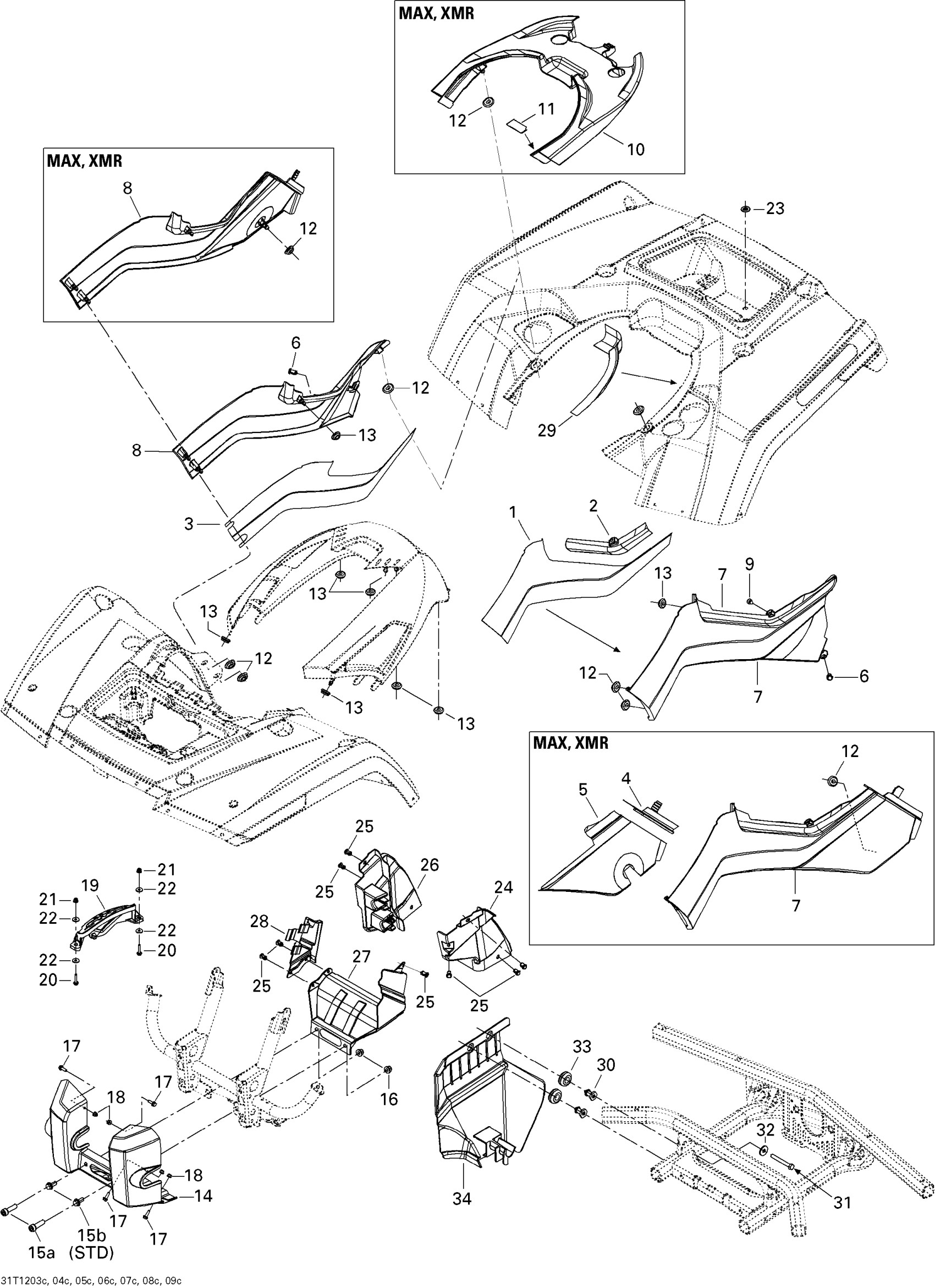

Can-Am Outlander 650EFI STD & XT, 2012 09- Body And Accessories 3 Diagram

#

Description
Price

1

Reflective Sheet

705005620

$12.99

2

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

705005623

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Reflective Sheet | Outlander

705005622

$3.89

6

Tuflok Plastic Rivet

293150230

$1.47

7

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

7

LH LATERAL PANEL, RED - Call your local BRP dealership | Viper Red

705002948

Unavailable

7

Black, LH Lateral Panel

705002958

$43.99

7

LH LATERAL PANEL, CAMO - Call your local BRP dealership | Camo Model

705005061

Unavailable

7

PANEL_BODY LH B-321 - Call your local BRP dealership | Outlander Magnesium

705005045

Unavailable

8

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

8

RH LATERAL PANEL, RED - Call your local BRP dealership | Viper Red

705002951

Unavailable

8

Black, RH Side Panel

705002959

$43.99

8

RH LATERAL PANEL, CAMO - Call your local BRP dealership | Camo Model

705005062

Unavailable

8

RH Lateral Panel, Magnesium Painted | Outlander Magnesium

705005048

Unavailable

9

Rubber Bumper

293830005

$8.09

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Oval Washer

705000321

$5.61

13

Grommet

705003264

$4.09

14

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

14

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

15a

Socket Screw M10 X 35

205003544

$1.69

15b

Hex. Flange Screw M10 X 25

207602544

$1.69

16

Hex. Flange Elastic Nut M10

233201414

$1.58

17

Hex. Flange Screw M6 X 20

207662044

$2.00

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Lever Indicator

705003838

$28.99

20

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Flat Washer

224061201

$1.37

23

CAP - Call your local BRP dealership

414859400

Unavailable

24

LH INNER FENDER - Call your local BRP dealership

705003634

Unavailable

25

Tuflok Plastic Rivet

293150230

$1.47

26

RH INNER FENDER - Call your local BRP dealership

705002124

Unavailable

27

LH DEFLECTOR - Call your local BRP dealership

705002988

Unavailable

28

RH DEFLECTOR - Call your local BRP dealership

705002135

Unavailable

29

Reflective Sheet

705002085

$12.99

30

Knob

517303439

$4.55

31

Hex. Screw K50 X 45

241154540

$2.11

32

Washer | DS 650 X

391301600

$0.48

33

Grommet

709000582

$4.69

34

Thread Cover

705004036

$20.99
