Description

Price

1

LH SWING ARM - Call your local BRP dealership

706001185

Unavailable

2

Rh Swing Arm

706003425

$296.99

3

Sway Bar

706001078

$95.49

4

Ball Bearing

293350037

$139.99

5

Circlip

293370041

$9.26

6

Nut

706000221

$20.99

7

Cover

706000749

$16.49

8

Circlip 45 mm

293370027

$4.14

9

Lever

706000548

$38.99

10

Washer

250200045

$7.73

11

Elastic Stop Nut M18

232591414

$4.39

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706000792

$129.99

15

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership

706000651

Unavailable

16

Adjuster Ring

706002356

$18.49

17

Spring Stopper

706200881

$12.99

18

Cap

706200785

$4.69

19

Hex. Flange Screw M10 X 55

207605544

$3.38

20

Hex. Flange Elastic Nut M10

233201414

$1.58

21

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

23

Oetiker Clamp

293650162

$9.79

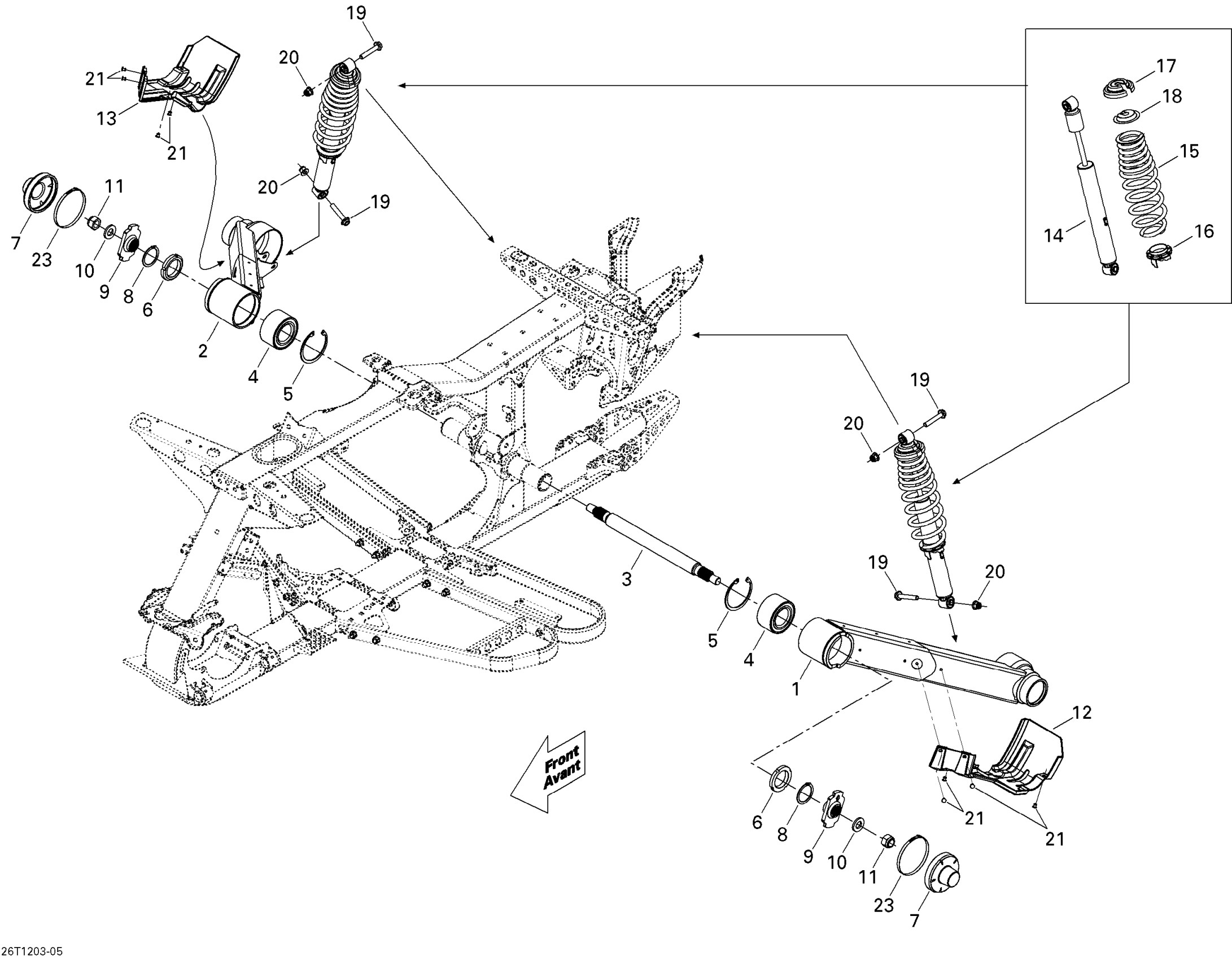

Can-Am Outlander 650EFI STD & XT, 2012 08- Rear Suspension Diagram

LH SWING ARM - Call your local BRP dealership

Rh Swing Arm

Sway Bar

Ball Bearing

Circlip

Nut

Cover

Circlip 45 mm

Lever

Washer

Elastic Stop Nut M18

LH PROTECTOR - Call your local BRP dealership

RH PROTECTOR - Call your local BRP dealership

REAR SHOCK - Call your local BRP dealership

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership

Adjuster Ring

Spring Stopper

Cap

Hex. Flange Screw M10 X 55

Hex. Flange Elastic Nut M10

Pop Rivet 3/16" | DS 650 X

Oetiker Clamp
