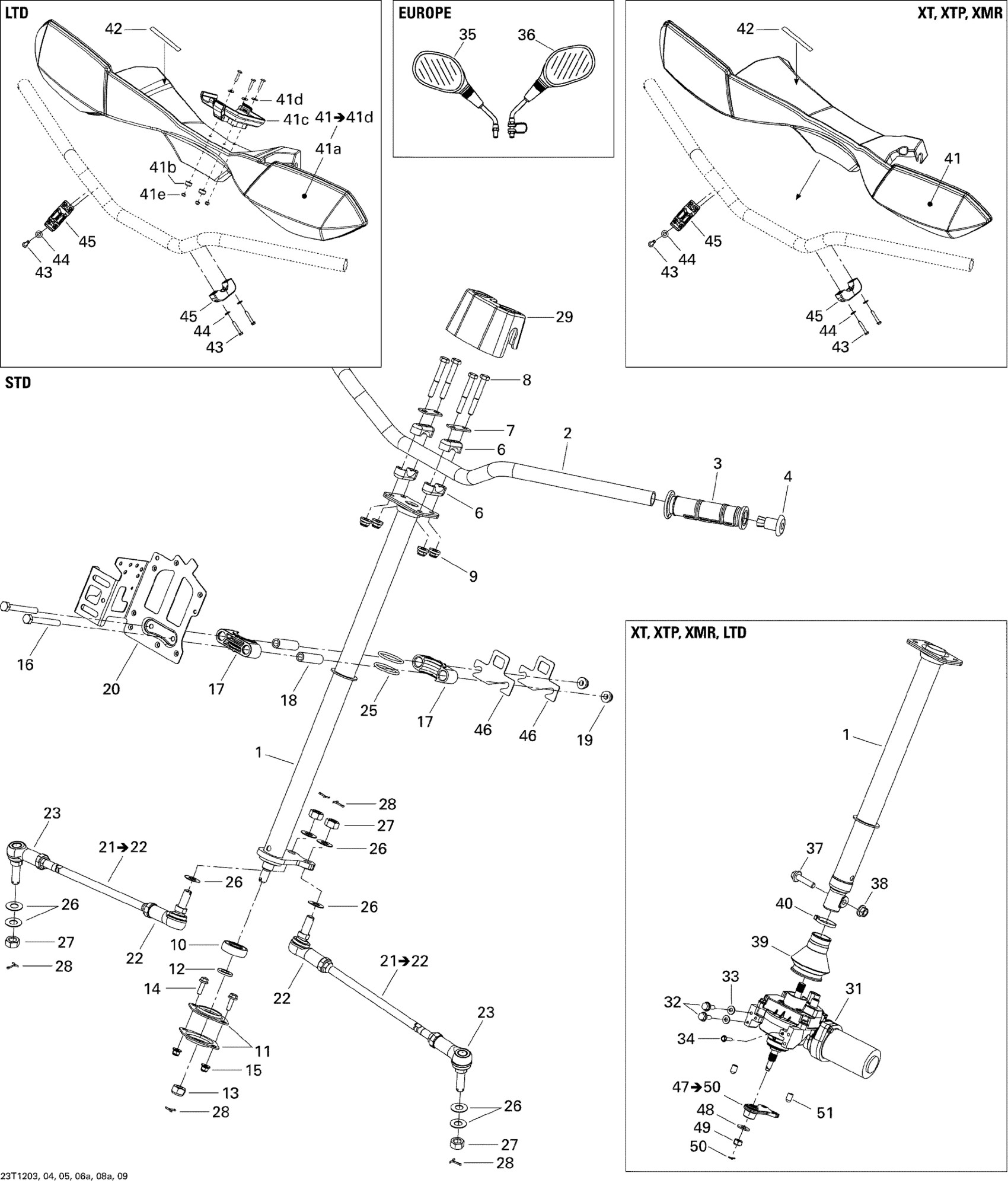

Can-Am Outlander 650EFI STD & XT, 2012 07- Steering Diagram

#

Description
Price

1

Tube-Main

715900573

$129.99

1

Main Tube, Black

709400971

$184.99

2

Black, Handle Bar

709401240

$69.99

3

Handle Grip

709400493

$14.83

4

End Piece

709400449

$8.49

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Screw M8 X 70

207087044

$2.19

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

21

Tie Rod Ass'y

709401059

$68.99

22

LH Ball Joint

709402303

$36.99

23

Ball Joint, RH Threads

709400487

$52.99

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

Steering Cover | STD

709400278

$13.99

31

Power Steering

709401608

$1,010.49

32

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

33

Conical Spring Washer M8

234281474

$1.48

34

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$2.00

35

LH Mirror | Europe

709400406

$32.99

36

RH Mirror | Europe

709400407

$47.49

37

Hex. Flange Screw M8 X 35

207683544

$1.69

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Bellows

709400674

$18.99

40

Tie-Rap 180 mm

414115200

$0.11

41

Handle Guard Ass'y, XT

703100352

$98.49

41a

Not Available As Spare Parts

XXX

Unavailable

41b

Not Available As Spare Parts

XXX

Unavailable

41c

Not Available As Spare Parts

XXX

Unavailable

41d

Not Available As Spare Parts

XXX

Unavailable

41e

Not Available As Spare Parts

XXX

Unavailable

42

Decal "Dynamic Power Steering"

704905284

$14.49

43

Hex. Flange Screw K40 X 25

241142560

$2.64

44

Flat Washer | XT

211200035

$0.55

45

U-Clamp | XT

517303264

$11.99

46

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

46

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable

47

LOWER MAIN TUBE KIT - Call your local BRP dealership | Includes 25 to 27

703500784

$50.99

48

Hardened Washer

706200281

$2.85

49

Hex. Flange Elastic Nut M12

250000047

$1.90

50

Cotter Pin

250400034

$2.11

51

CAP - Call your local BRP dealership | XT

709401032

Unavailable
