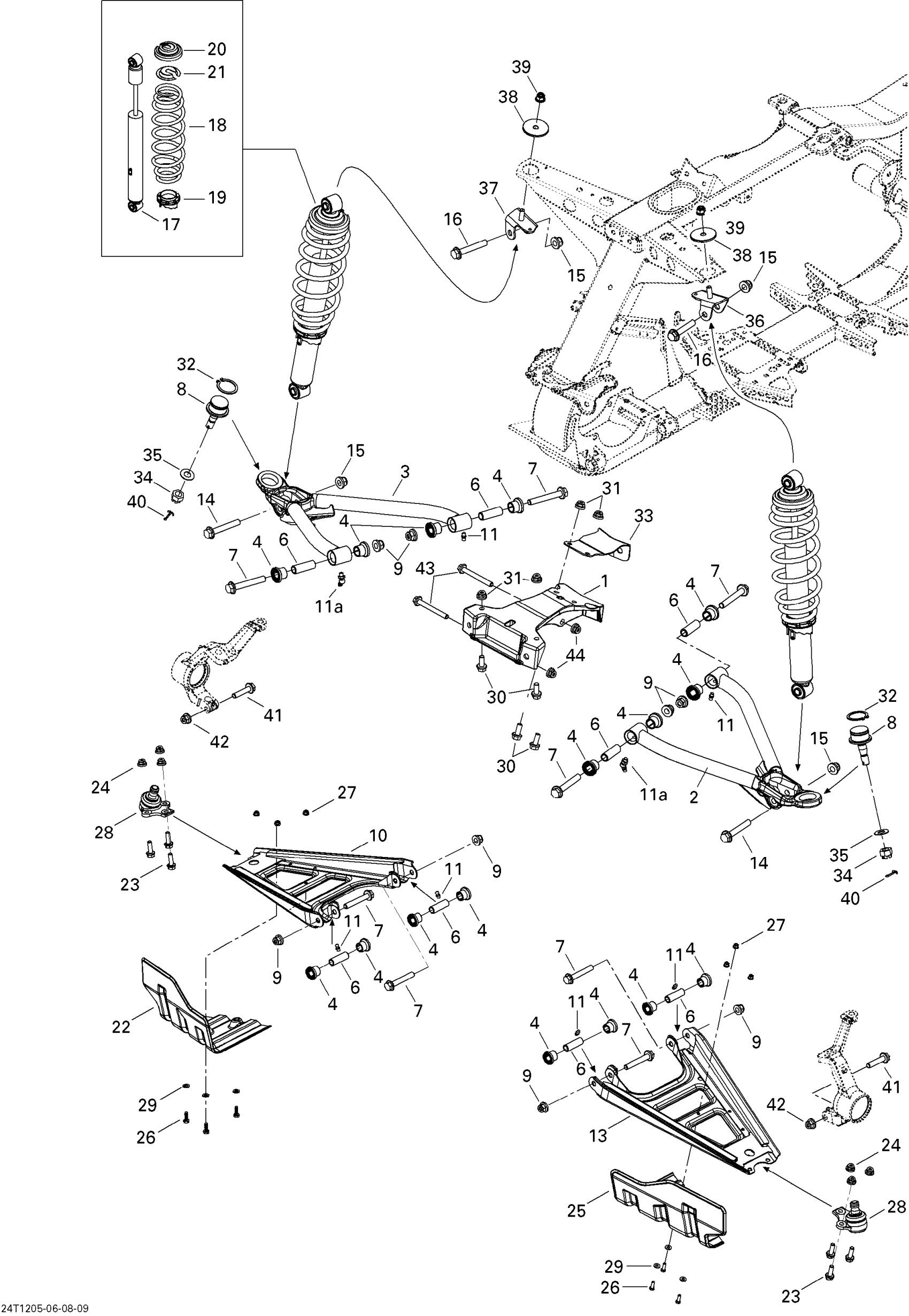

Can-Am Outlander 650EFI STD & XT, 2012 07- Front Suspension Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

$158.99

2

L.H. ARM - Call your local BRP dealership

706201016

Unavailable

3

R.H. ARM - Call your local BRP dealership

706201022

Unavailable

4

Bushing

706200181

$3.14

6

Sleeve

706201587

$3.79

7

Hex. Flange Screw M10 X 70

207607046

$2.96

8

Ball Joint

706200653

$44.99

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

Suspension Arm

706205905

$158.99

11

Grease Fitting

408200700

$3.49

11a

GREASE FITTING - Call your local BRP dealership

408200600

Unavailable

13

Suspension Arm

706205905

$158.99

14

Hex. Flange Screw M10 X 65

207606536

$4.44

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M10 X 55

207605544

$3.38

17

Front Shock

706201110

$158.99

18

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | STD

706200820

Unavailable

18

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | XT

706200823

Unavailable

19

Adjuster Ring

706002356

$18.49

20

Spring Stopper

706200881

$12.99

21

Cap

706200785

$4.69

22

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$11.49

23

Hex. Flange Screw M8 X 25

207682544

$1.35

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

$11.49

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Hex. Flange Elastic Nut M5

233251414

$1.04

28

Joint Attachment

706200444

$51.99

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

$1.15

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Circlip 32 mm

293370009

$1.39

33

BRACKET - Call your local BRP dealership

706201014

Unavailable

34

Nut M12

250100099

$2.09

35

Hardened Washer

706200281

$2.85

36

L.H. BRACKET - Call your local BRP dealership

706201035

Unavailable

37

R.H. BRACKET - Call your local BRP dealership

706201036

Unavailable

38

SPACER - Call your local BRP dealership

706200724

Unavailable

39

Hex. Elastic Flange Nut M8

233281416

$1.48

40

Cotter Pin

211400017

$0.33

41

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

42

Hex. Flange Elastic Nut M10

233201414

$1.58

43

Hex. Flange Screw M8 X 70

207687044

$7.41

44

Hex. Flange Elastic Nut M8

233281414

$1.47
