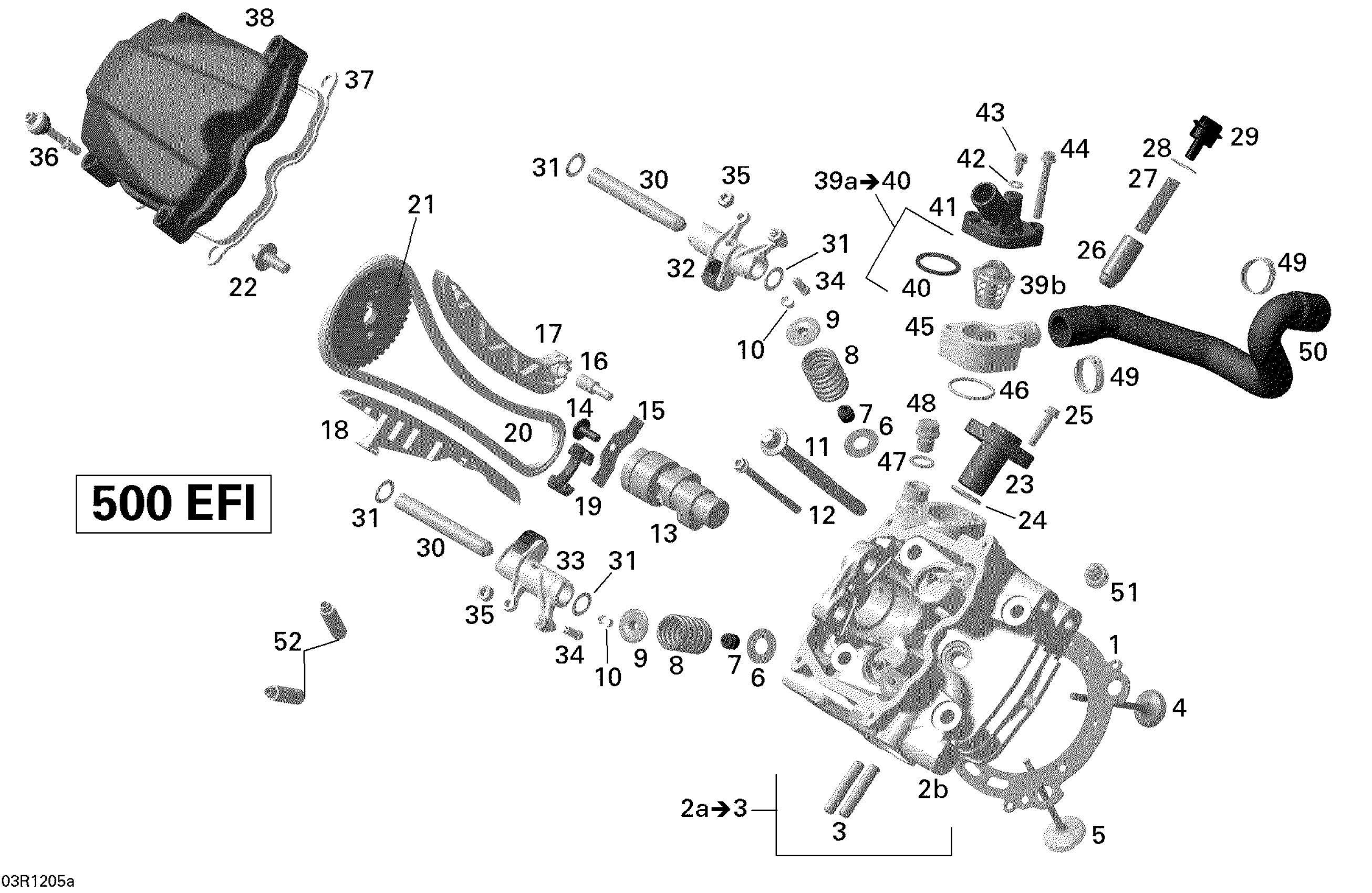

Can-Am Outlander 500EFI STD & XT, 2012 01- Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 330HO

420630850

$62.49

2a

Cylinder Head | Includes 2a to 3

420623941

$660.49

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$14.22

4

Intake Valve 31MM

420254359

$35.99

5

Exhaust Valve 27MM

420254368

$69.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.18

8

Valve Spring

420239295

$14.28

9

Valve Spring Retainer

420254132

$14.28

10

Cotter Valve

420254120

$4.12

11

Torx Screw M10X140

420641551

$14.28

12

Torx Flange Screw M6 X 85

420641228

$7.41

13

CAMSHAFT - Call your local BRP dealership

420620747

Unavailable

14

Torx Screw M6 X 16

420241529

$2.11

15

Holding Strip

420627743

$18.49

16

Bearing Screw M6

420240943

$5.24

17

Chain Tension Guide

420436015

$29.49

18

Chain Guide

420236584

$7.51

19

Chain Guide

420236351

$14.81

20

Silent Chain

420297063

$65.49

21

Camshaft Sprocket

420254434

$36.99

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.41

23

Chain Tensioner Housing

420236510

$11.63

24

O-Ring

420430373

$3.17

25

Torx Flange Screw M6 X 25

420641238

$3.27

26

Chain Tensioner Plunger

420236521

$14.83

27

Spring

420238120

$7.41

28

O-Ring

420250890

$3.06

29

Plug Screw

420641150

$7.41

30

Pin #12, Small, M6 X 90

420229712

$15.89

31

Shim

420944382

$4.12

32

Inlet Rocker Arm

420254907

$142.99

33

Exhaust Rocker Arm

420254911

$147.99

34

Adjustment Screw M6 X 0.75

420241337

$5.07

35

Hex Nut M6

420242913

$0.53

36

Allen Screw M6 x 30,5

420440561

$4.44

37

Gasket

420630260

$26.49

38

Valve Cover

420610393

$26.49

39a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

39b

Not Available As Spare Part - Friction Washer

Unavailable

40

Thermostat Gasket

420650300

$8.57

41

Thermostat Cover

420222696

$3.17

42

Gasket Ring

420650255

$4.12

43

Screw M5 X 16

420441621

$3.17

44

Torx Flange Screw M6 X 45

420641198

$4.12

45

Connection Socket

420222894

$48.49

46

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

47

Copper Washer

420250640

$0.98

48

Plug screw

420841924

$14.28

49

Clamp

420251578

$8.57

50

Water Tube

420822353

$21.99

51

Spark Plug, NGK DCP-R8E

715900637

$6.35

52

Valve Guide

420254374

$27.99
