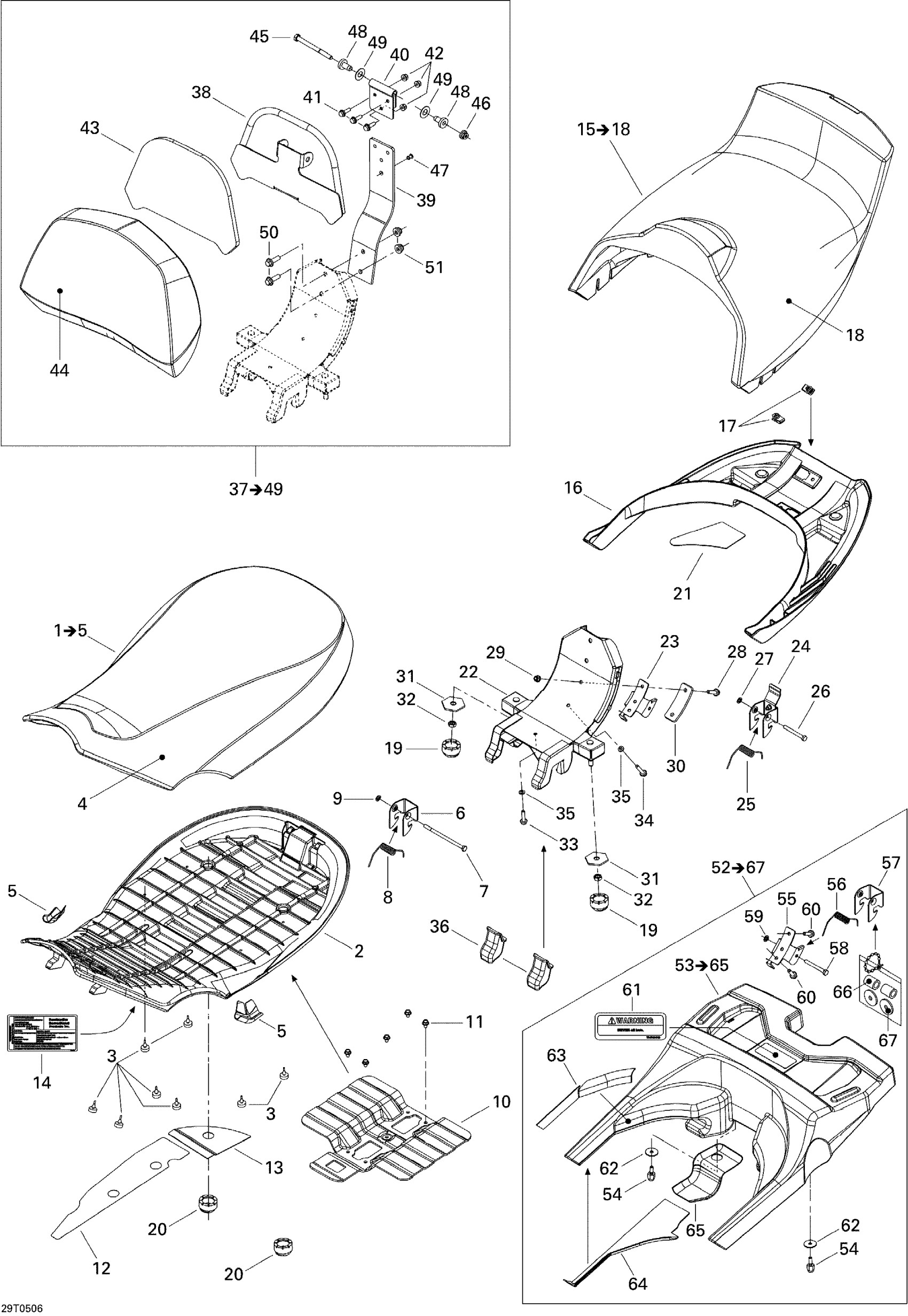

Can-Am Outlander MAX 400, 2005 09- Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$459.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.19

4

Seat Cover

708000556

$126.99

5

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

6

Latch, Black

708000144

$11.99

7

HEX. SCREW M6 X 110 - Call your local BRP dealership

230061060

Unavailable

8

Spring

708000369

$9.19

9

Push Nut

732610072

$2.19

10

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

11

Hex. Forming Screw M6 X 10

210261050

$1.69

12

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

13

Reflecting Sheet

708000322

Unavailable

14

Emission Label | 400 H.O.

704900874

Unavailable

15

Rear Seat Ass'y | Includes 15 to 18

708000382

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Seat Cover

708000383

Unavailable

19

Bumper Rubber

708000760

$10.49

20

Bumper Rubber

708000760

$10.49

21

Reflecting Sheet

708000268

Unavailable

22

Seat Reinforcement

708000305

Unavailable

23

LOCK SUPPORT, BLACK - Call your local BRP dealership

708000309

Unavailable

24

Latch

708000398

Unavailable

25

Spring

708000369

$9.19

26

Hex. Screw M6 X 55

207065544

$2.11

27

Push Nut

732610072

$2.19

28

Hex. Flange Screw M6 X 25

207662544

$0.64

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Plate

708000351

Unavailable

31

Adjuster Stopper

708000350

Unavailable

32

RH Threaded Hex. Jam Nut M10

732610010

$0.74

33

Hex. Flange Screw M6 X 25

207662544

$0.64

34

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

35

Lock Washer M6, Black

234161471

$0.53

36

Protector

708000343

Unavailable

37

Backrest Ass'y | Includes 37 to 49

708000384

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Hex. Flange Screw M6 X 20

207662044

$2.00

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Backrest Cover

708000385

Unavailable

45

Hex. Screw M8 X 95

207089544

Unavailable

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Hardened Washer

706200281

$2.85

50

Hex. Flange Screw M8 X 25

207682544

$1.35

51

Hex. Flange Elastic Nut M8

233281414

$1.47

52

Removable Luggage Rack Kit | Includes 52 to 67

703100127

Unavailable

53

Removable Luggage Rack Ass. | Includes 53 to 65

705001687

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

LOCK SUPPORT, BLACK - Call your local BRP dealership

708000309

Unavailable

56

Spring

708000369

$9.19

57

Latch, Black

708000144

$11.99

58

Hex. Screw M6 X 55

207065544

$2.11

59

Push Nut

732610072

$2.19

60

Hex. Flange Screw M6 X 20

207662044

$2.00

61

WARNING DECAL NEVER SIT HERE - Call your local BRP dealership

704900446

Unavailable

62

Washer

224060251

$0.58

63

REFLECTING SHEET - Call your local BRP dealership

705001452

Unavailable

64

REFLECTING SHEET - Call your local BRP dealership

705001453

Unavailable

65

REFLECTING SHEET - Call your local BRP dealership

705001454

Unavailable

66

Was 276000001 Hose 12.5 mm

219704394

$51.99

67

WASHER - Call your local BRP dealership

517078700

Unavailable
