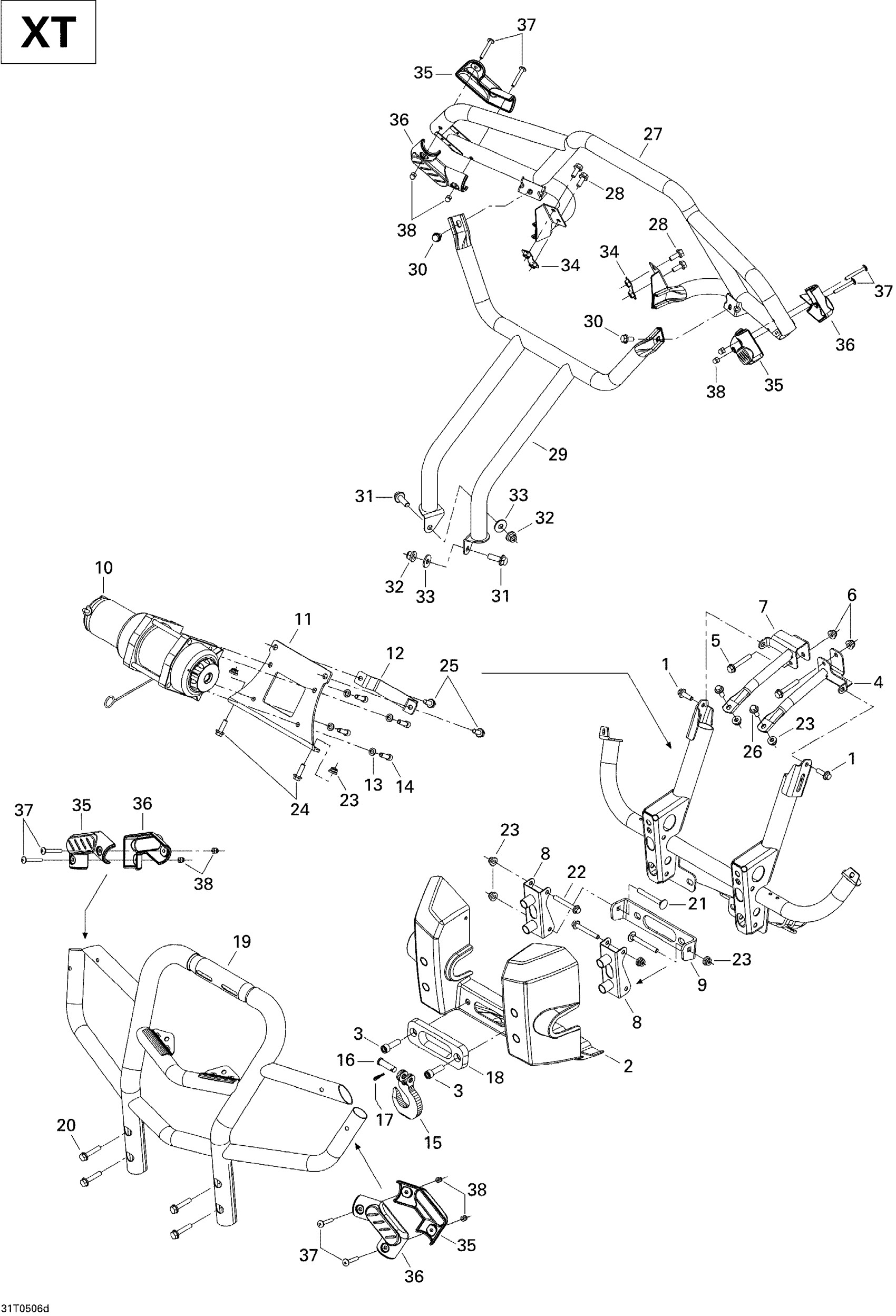

Can-Am Outlander MAX 400, 2005 09- Body And Accessories XT Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 25

207682544

$1.35

2

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

3

Socket Screw M10 X 35

205003544

$1.69

4

LH Anchoring

705001186

Unavailable

5

Hex. Flange Screw M8 X 50

207685044

$1.69

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

RH Anchoring

705001190

Unavailable

8

BUMBER ANCHORING - Call your local BRP dealership

705003006

Unavailable

9

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

10

WINCH - Call your local BRP dealership

705000839

Unavailable

11

MOUNTING PLATE - Call your local BRP dealership

705000415

Unavailable

12

BRACKET - Call your local BRP dealership

705000416

Unavailable

13

Lock Washer 8 mm

234181401

$0.92

14

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

15

Winch Hook Kit

705014949

$24.99

16

Clevis Pin

250400021

$13.18

17

Cotter Pin

250400022

$9.69

18

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

19

Front Bumper

705001077

Unavailable

20

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

21

Carriage Bolt M8 X 70

207787044

$1.37

22

Hex. Flange Screw M8 x 60

207686044

$3.07

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Hex. Flange Screw M8 X 25

207682544

$1.35

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

26

Hex. Flange Screw M8 X 20

207682044

$1.15

27

REAR BUMPER - Call your local BRP dealership

705001079

Unavailable

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

29

Rear Lower Bumper

705001081

Unavailable

30

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

31

Hex. Flange Screw M10 X 30

207603044

$2.11

32

Hex. Flange Elastic Nut M10

233201414

$1.58

33

Washer

503032900

$3.28

34

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

35

MALE CAP - Call your local BRP dealership

705001042

Unavailable

36

FEMALE CAP - Call your local BRP dealership

705001043

Unavailable

37

Torx Screw M6 X 45

250000215

$1.90

38

Domed Nut M6

232361493

$2.11
