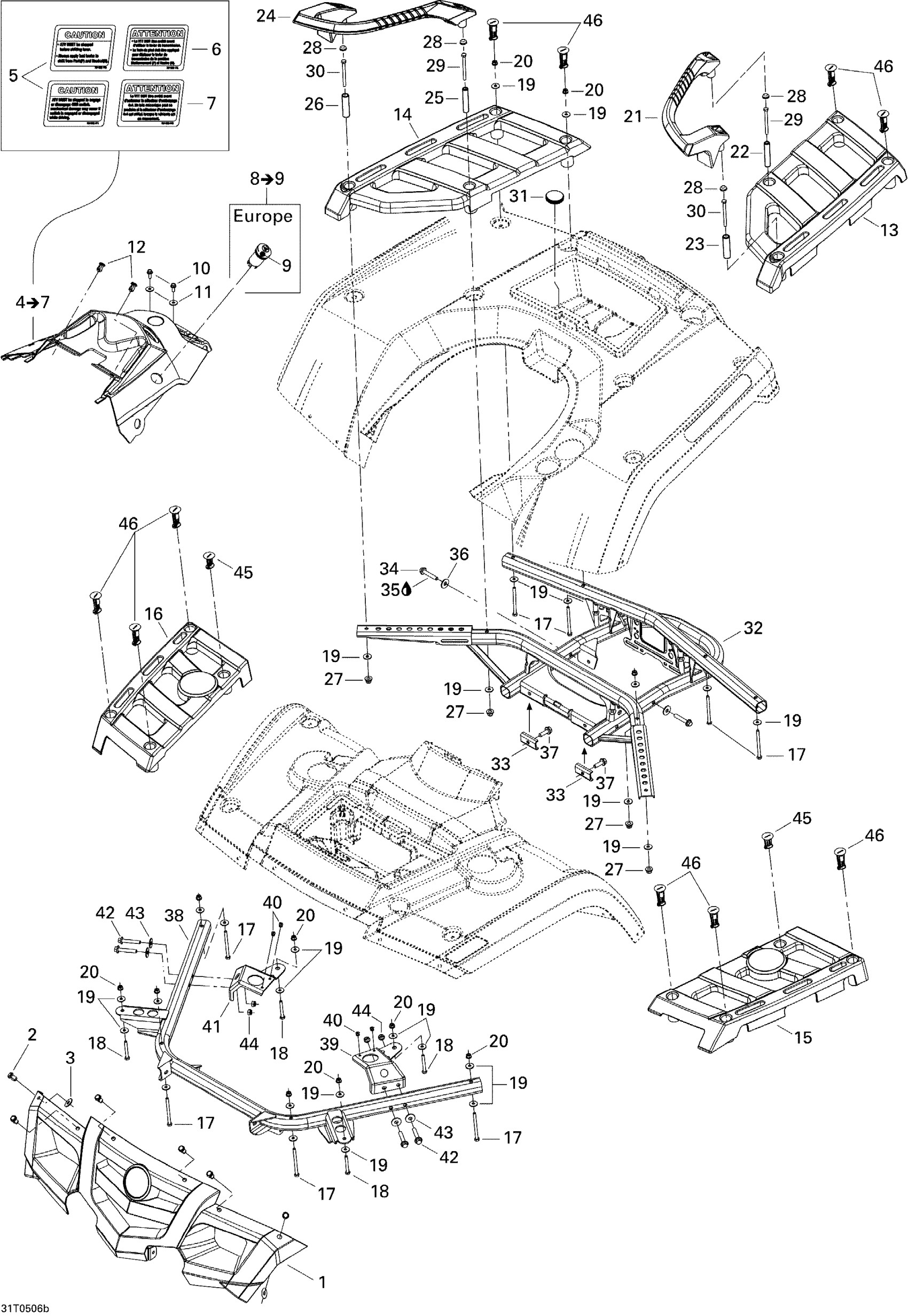

Can-Am Outlander MAX 400, 2005 09- Body And Accessories 2 Diagram

#

Description
Price

1

Front Fascia, Viper Red | Viper Red

705000432

Unavailable

1

FRONT FASCIA, LAURENTIAN GREEN - Call your local BRP dealership | Laurentian Green

705000734

Unavailable

1

Front Fascia, Yellow | Yellow

705000851

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Flat Washer 8 mm

234082410

$1.47

4

Console, Viper Red | Includes 4 to 7 / Viper Red

703500266

Unavailable

4

Console, Laurentian Green | Includes 4 to 7 / Laurentian Green

703500267

Unavailable

4

Console, Yellow | Includes 4 to 7 / Yellow

703500330

Unavailable

5

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

9

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

10

Hex. Flange Screw M6 X 16

210261650

$1.67

11

Flat Washer

250200082

$0.42

12

Tuflok Plastic Rivet

293150230

$1.47

13

LH REAR LUGGAGE RACK - Call your local BRP dealership

705001525

Unavailable

14

RH REAR LUGGAGE RACK - Call your local BRP dealership

705001526

Unavailable

15

LH FRONT LUGGAGE RACK - Call your local BRP dealership

705001527

Unavailable

16

RH Front Luggage Rack

705001528

Unavailable

17

Hex. Screw M6 X 80

207168044

Unavailable

18

HEX. SCREW M6 X 50 - Call your local BRP dealership

207165044

Unavailable

19

Flat Washer

224061201

$1.37

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

LH Handle

705000979

Unavailable

22

Spacer

705001243

Unavailable

23

SPACER - Call your local BRP dealership

705001244

Unavailable

24

RH Handle

705000980

Unavailable

25

Spacer

705001243

Unavailable

26

SPACER - Call your local BRP dealership

705001244

Unavailable

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Handle Cap

705001242

Unavailable

29

Hex. Flange Screw M6 X 130

230663084

$3.38

30

Hex. Flange Screw M6 X 95

207669584

$3.38

31

Rubber Cover

570041600

Unavailable

32

Rear Support

705001684

Unavailable

33

U Reinforcement

705003647

$8.19

34

Hex. Flange Screw M8 X 45

207684544

$3.80

35

Loctite 243, 10 ml

293800060

$21.49

36

Flat Washer 8 mm

234082410

$1.47

37

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

38

front support

705000895

Unavailable

39

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

40

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

41

RH Anchor Plate

705002997

$18.49

42

Hex. Flange Screw M8 X 45

207684544

$3.80

43

Flat Washer 8 mm

234082410

$1.47

44

Hex. Elastic Stop Nut M8

232581414

$0.56

45

PLUG - Call your local BRP dealership

705001689

Unavailable

46

PLUG - Call your local BRP dealership

705001690

Unavailable
