Description

Price

1

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

2

Halogen Bulb

415129249

$41.49

3

RH Low Front Housing

710001081

$19.99

4

RH Low Rear Housing

710001082

$12.99

5

RH Low Light Support

710001094

$9.09

6

LH Low Front Housing

710001083

$19.99

7

LH Low Rear Housing

710001084

$12.99

8

LH Low Light Support

710001037

$9.09

9

Phillips Screw K40 X 16

250000723

$0.98

10

Setting Screw

710001147

$12.71

11

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

12

Halogen Bulb

415129249

$41.49

13

RH High Front Housing

710001085

$19.99

14

RH High Rear Housing

710001086

$12.99

15

RH High Light Support

710001115

$5.29

16

LH High Front Housing

710001087

$19.99

17

LH High Rear Housing

710001088

$12.99

18

LH High Light Support

710001036

$5.29

19

Hex. Screw M4 X 25

207142544

$2.00

20

Flat Washer M5

234051410

$0.53

21

Elastic Stop Nut M4

232541414

$0.58

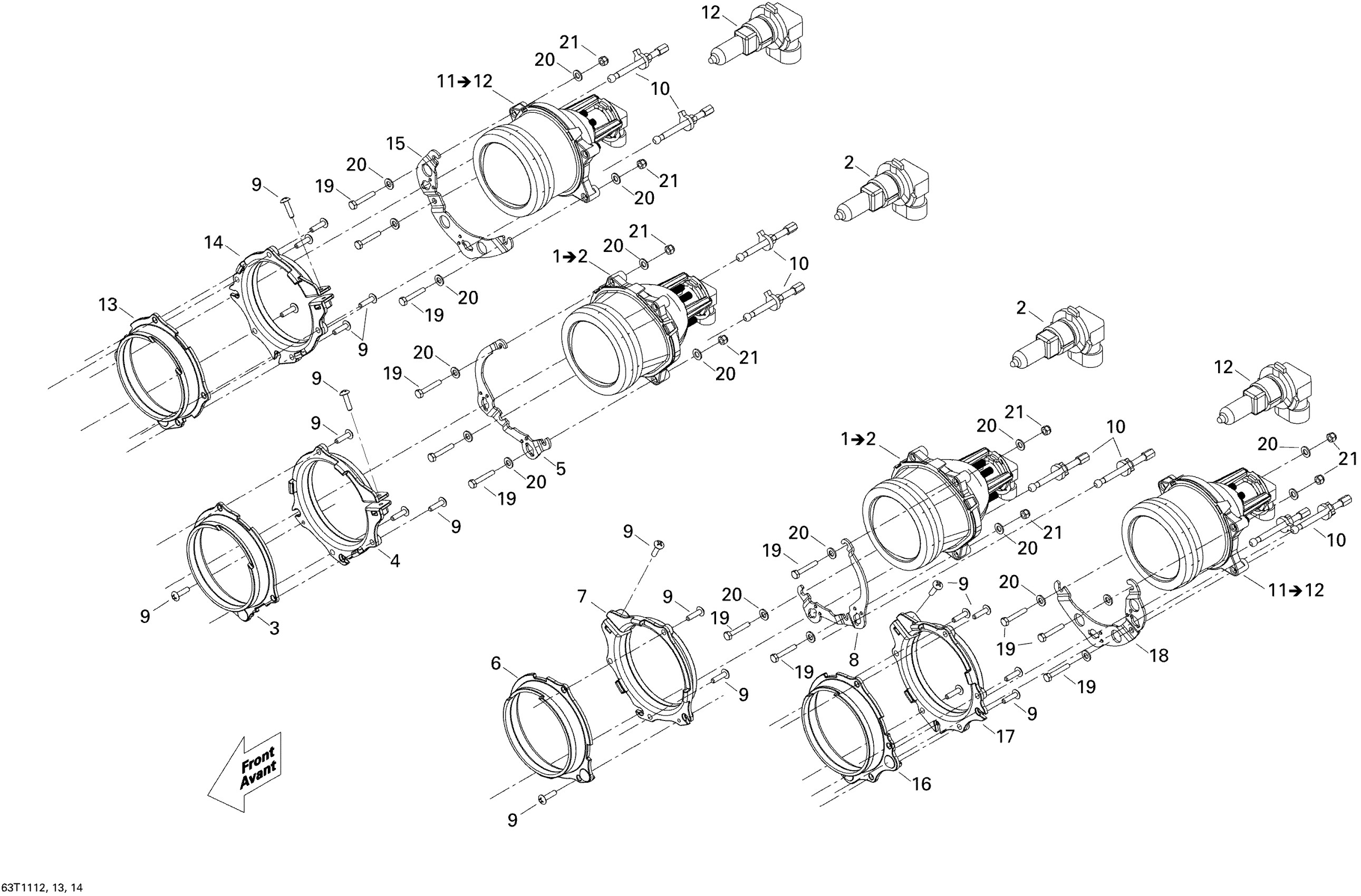

Can-Am Renegade 800R EFI, Xxc, 2011 10- Headlights Diagram

Low Beam Ass'y | Includes 1 to 2

Halogen Bulb

RH Low Front Housing

RH Low Rear Housing

RH Low Light Support

LH Low Front Housing

LH Low Rear Housing

LH Low Light Support

Phillips Screw K40 X 16

Setting Screw

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

RH High Front Housing

RH High Rear Housing

RH High Light Support

LH High Front Housing

LH High Rear Housing

LH High Light Support

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4
