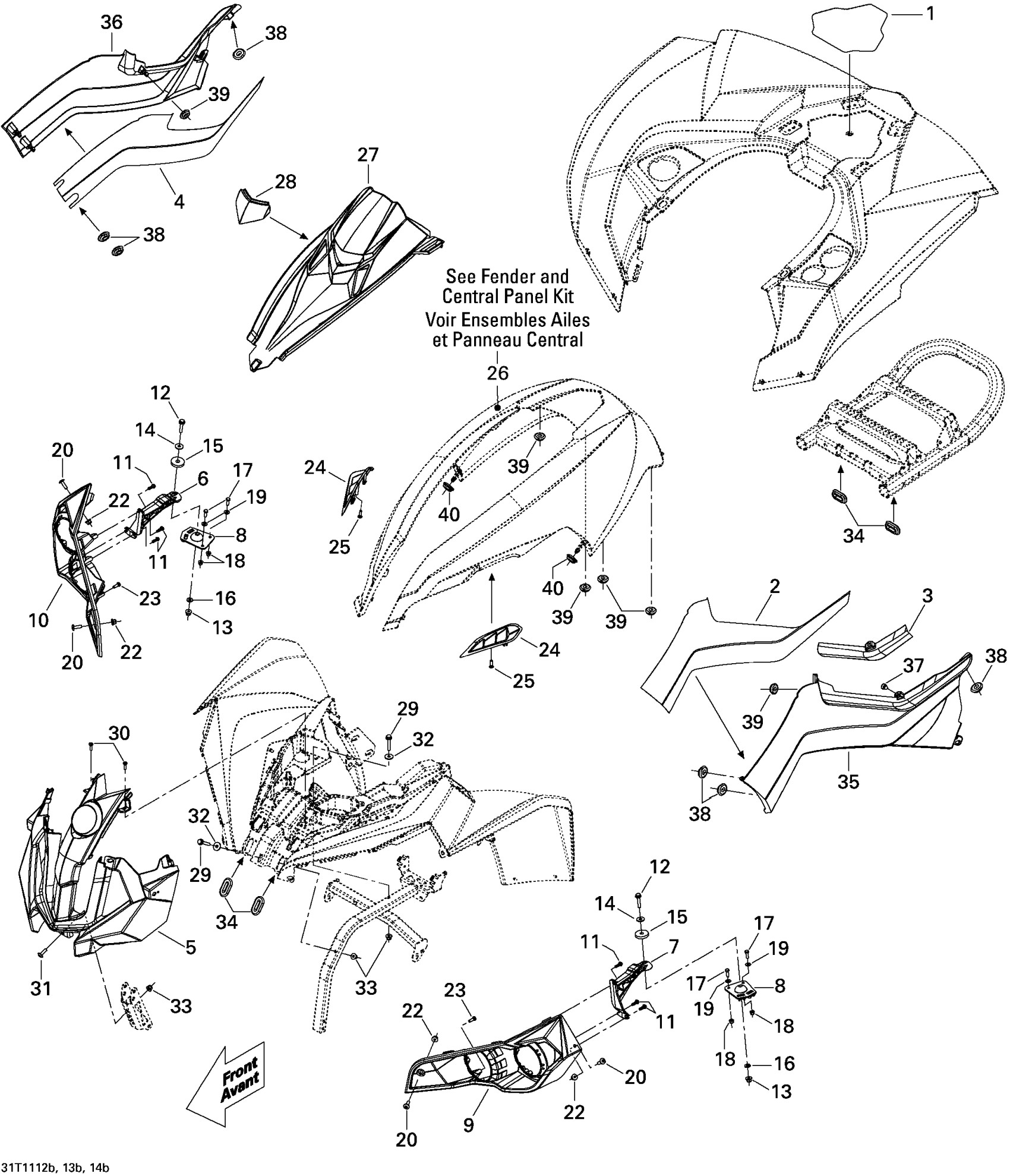

Can-Am Renegade 800R EFI, Xxc, 2011 09- Body And Accessories 2 Diagram

#

Description
Price

1

Rear Carpet

705002343

$19.49

2

Reflective Sheet

705005620

$12.99

3

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

4

REFLECTIVE SHEET - Call your local BRP dealership

705005623

Unavailable

5

Front Facia

705010673

$73.99

6

RH Light Support

705002424

$19.49

7

LH LIGHT SUPPORT - Call your local BRP dealership

705002425

Unavailable

8

Ball Joint

705002405

$15.49

9

LH Front Facia

705004508

$51.99

10

RH Front Facia

705004509

$51.99

11

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Flat Washer

250200082

$0.42

15

Rubber Washer

293830037

$2.68

16

Flat Washer

224061121

$0.53

17

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

18

Hex. Flange Elastic Nut M5

233251414

$1.04

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Torx Screw M6 x 25

250000284

$2.11

20

Torx Screw M6 X 16

250000755

$0.87

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Torx Screw K50 X 16

250000720

$1.69

24

LEFT GRILL - Call your local BRP dealership

705008139

Unavailable

24

RIGHT GRILL - Call your local BRP dealership

705008140

Unavailable

25

Torx Screw K50 X 16

250000720

$1.69

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Dashboard

705003556

$46.99

28

Cap

705002353

$15.49

29

Hex. Flange Screw M6 X 35

207663544

$0.90

30

Torx Screw K50 X 16

250000720

$1.69

31

Torx Screw M6 x 25

250000284

$2.11

32

Flat Washer

224061201

$1.37

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Oblong Grommet

705003668

$5.79

35

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

36

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

37

Rubber Bumper

293830005

$8.09

38

Oval Washer

705005156

$4.97

39

Grommet

705003264

$4.09

40

Oval Washer

705005156

$4.97
