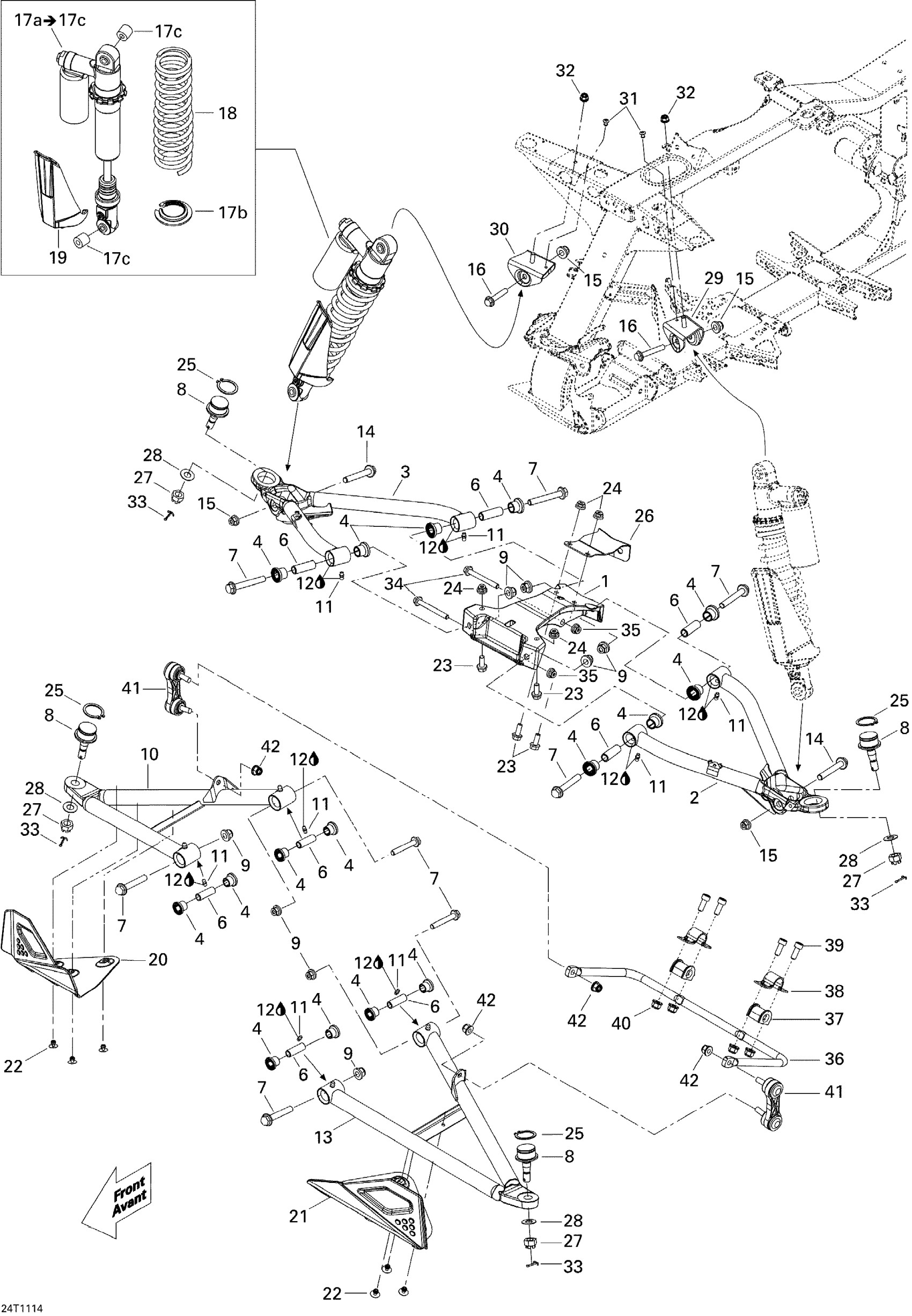

Can-Am Renegade 800R EFI, Xxc, 2011 07- Front Suspension Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

$158.99

2

LH PAINT UPPER ARM - Call your local BRP dealership

706201209

Unavailable

3

RH PAINT UPPER ARM - Call your local BRP dealership

706201212

Unavailable

4

Bushing

706200181

$3.14

6

Sleeve

706201587

$3.79

7

Hex. Flange Screw M10 X 70

207607046

$2.96

8

Ball Joint

706200653

$44.99

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

11

Grease Fitting

408200700

$3.49

12

Synthetic Grease, 400 G

293550010

Unavailable

13

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

14

Hex. Flange Screw M10 X 65

207606536

$4.44

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M10 X 55

207605544

$3.38

17a

FRONT SHOCK - Call your local BRP dealership

706200672

$699.99

17b

Spring Stopper

706000567

$15.99

17c

Not Available As Spare Parts

XXX

Unavailable

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200827

Unavailable

19

ROD PROTECTOR - Call your local BRP dealership

706201286

Unavailable

20

RH Protector

706201670

$17.54

21

LH Protector

706201669

$17.54

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

23

Hex. Flange Screw M8 X 20

207682044

$1.15

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Circlip 32 mm

293370009

$1.39

26

BRACKET - Call your local BRP dealership

706201014

Unavailable

27

Nut M12

250100099

$2.09

28

Hardened Washer

706200281

$2.85

29

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

30

RH UPPER ARM BRACKET - Call your local BRP dealership

706201040

Unavailable

31

Pop Rivet 3/16"

390402300

$0.75

32

Hex. Elastic Flange Nut M8

233281416

$1.48

33

Cotter Pin

211400017

$0.33

34

Hex. Flange Screw M8 X 70

207687044

$7.41

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

SWAY BAR - Call your local BRP dealership

706200777

Unavailable

37

BUSHING - Call your local BRP dealership

706201049

Unavailable

38

CLAMP - Call your local BRP dealership

506095800

Unavailable

39

Socket Head Screw M8 X 20

205082044

$1.15

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

BALL JOINT - Call your local BRP dealership

706201077

Unavailable

42

Hex. Flange Elastic Nut M8

233281414

$1.47
