Description

Price

10

Seat Member | Includes 10 to 10a7

708002817

$139.99

10a

Pop Rivet 3/16"

390402200

$0.35

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

20

Hex. Flange Screw M8 X 25

207682534

$2.11

30

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Operator Seat Member | Includes 50 to 50a7

708001723

$329.99

50a

Pop Rivet 3/16"

390402200

$0.35

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

LH Cushion Ass'y

708002544

$294.99

90

LH Seat Base Ass'y

708003234

$249.99

100

RH Cushion Ass'y

708001498

$284.99

100

RH Seat Base Ass'y

708003236

$249.99

110

Central Cushion Ass'y

708001629

$249.99

110

Central Cushion Ass'y

708001928

$249.99

120

Backrest Ass'y

708001701

$379.99

120

Backrest Ass'y

708003249

$349.99

130

Backrest Ass'y | Includes 130 to 130d

708003248

$349.99

130a

Rubber Bumper

293830005

$8.09

140

Backrest Ass'y

708003155

$349.99

140

Backrest Ass'y

708003157

$349.99

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Bushing

708001903

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Hex. Screw M8 X 20

207182044

$0.74

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

270

Latch

269501487

$16.99

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

300

LH Rail

708000848

$53.99

310

RH Rail | Package XT, Cab

708002001

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16"

390402200

$0.35

500a

Headrest

708002853

$58.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

LH Safety Belt

708003082

$243.49

575

RH Safety Belt

708003200

$227.99

580

Central Safety Belt

708003688

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

610

Elastic Flange Nut M12

233221416

$2.85

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

625

Flat Washer M12

250200102

$2.11

630

Lock Nut Nylon 7/16

250100183

$2.00

6110

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6120

Torx Screw M6 X 20

250000722

$1.68

6130

Flat Washer M6.6 X 22

250200162

$2.32

6140

Elastic Flange Nut M12

233221416

$2.85

6150

Lock Nut Nylon 7/16

250100183

$2.00

6155

Safety Belt screw

708002504

$5.29

6160

Safety Belt Screw

708000890

$3.79

6170

Position Washer

708000891

$1.29

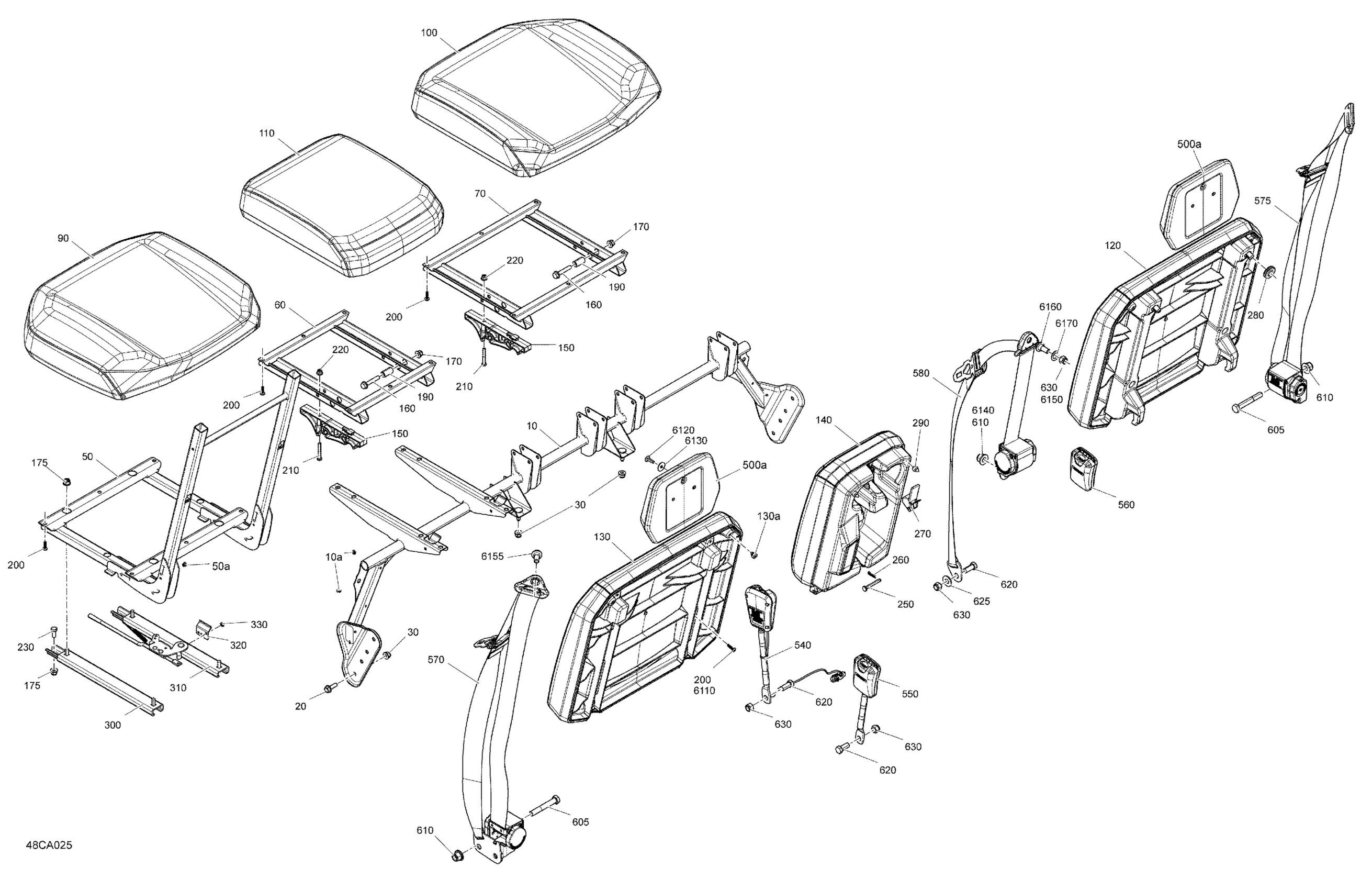

Can-Am 004 - Defender HD10 - DPS_XT - North America, 2021 07- Body - Seat Diagram

Seat Member | Includes 10 to 10a7

Pop Rivet 3/16"

Seat Member | Includes 10 to 10a8

Hex. Flange Screw M8 X 25

Hex. Flange Elastic Nut M8

Operator Seat Member | Includes 50 to 50a7

Pop Rivet 3/16"

Mid Seat Member

Passenger Seat Member

LH Cushion Ass'y

LH Seat Base Ass'y

RH Cushion Ass'y

RH Seat Base Ass'y

Central Cushion Ass'y

Central Cushion Ass'y

Backrest Ass'y

Backrest Ass'y

Backrest Ass'y | Includes 130 to 130d

Rubber Bumper

Backrest Ass'y

Backrest Ass'y

Seat Base Pivot

Hex. Flange Screw M8 X 45

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M8

Bushing

Torx Screw Truss Head K50X20 T20

Hex. Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

Hex. Screw M8 X 20

Pin

Hairpin Cotter

Latch

Grommet

Rubber Bumper

LH Rail

RH Rail | Package XT, Cab

Seat Stopper

Pop Rivet 3/16"

Headrest

Driver Buckle

Middle Buckle

Passenger Buckle

LH Safety Belt

RH Safety Belt

Central Safety Belt

Hex. Screw M12 X 80

Elastic Flange Nut M12

Hex. Cap Screw 7/16'' X 1'' | Europe

Flat Washer M12

Lock Nut Nylon 7/16

Torx Screw Truss Head K50X20 T20

Torx Screw M6 X 20

Flat Washer M6.6 X 22

Elastic Flange Nut M12

Lock Nut Nylon 7/16

Safety Belt screw

Safety Belt Screw

Position Washer
