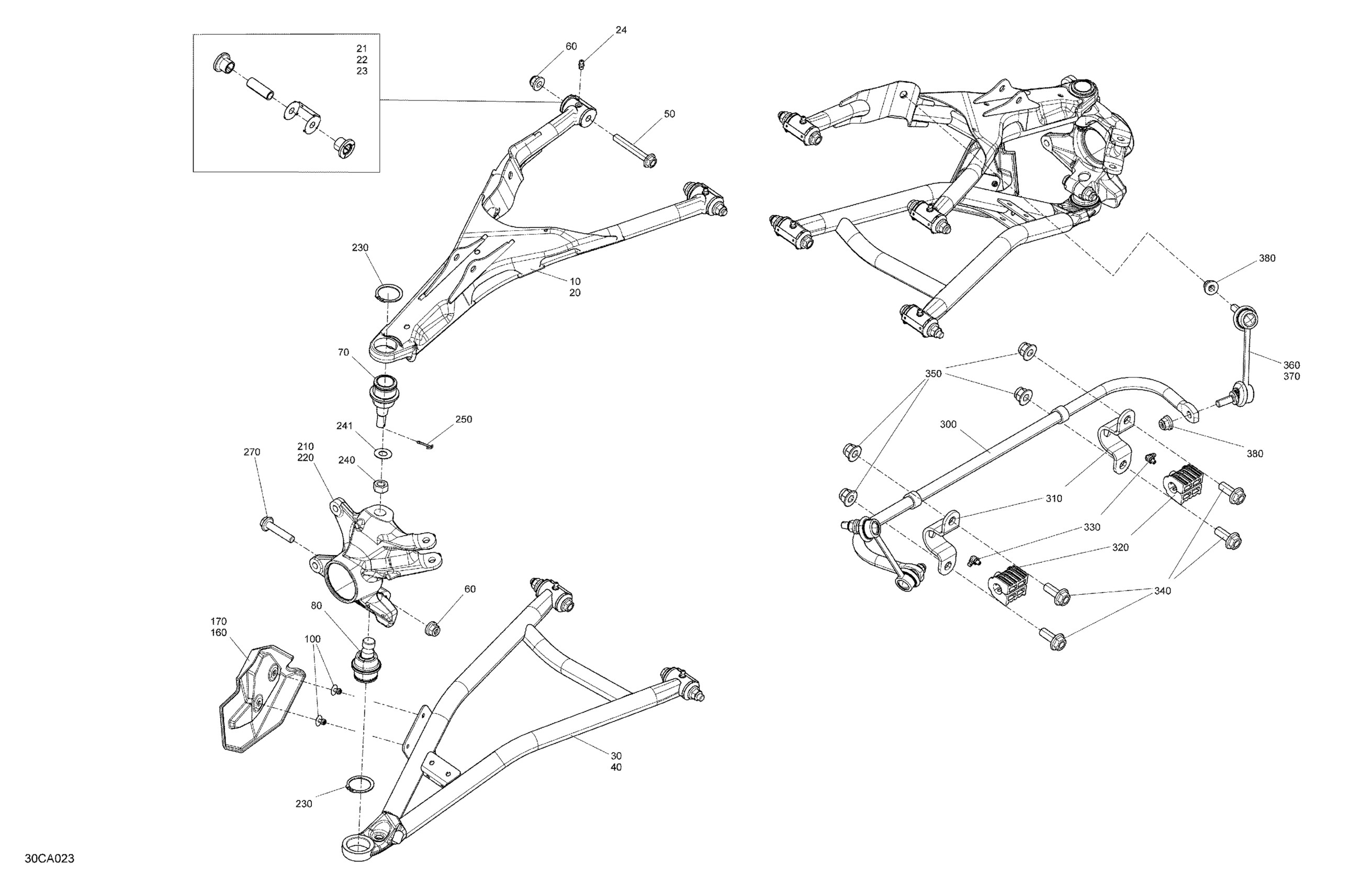

Can-Am 003 - Defender HD8 - CAB - North America, 2021 05- Suspension - Front Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706204177

$201.49

20

Deep Black, RH Upper Suspension Arm

706204178

$201.49

21

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

22

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

23

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

24

Grease Fitting

408200700

$3.49

30

Deep Black, LH Front Lower Suspension Arm

706202979

$201.49

40

Deep Black, RH Front Lower Suspension Arm

706202980

$201.49

50

Hex. Flange Screw M10 X 70

207607046

$2.96

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Knuckle

706205517

$148.49

220

RH Knuckle

706205047

$201.49

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Screw M10 X 55

207605546

$2.11

300

Sway Bar

706203167

$98.49

310

Clamp

706203437

$14.81

320

Stabilizer Bar Bushing | Except Europe

706204802

$12.65

330

Grease Fitting 90°

293550056

$1.15

340

Hex. Flange Screw DIN.6921

250000951

$7.17

350

Elastic Flange Nut M12

233221466

$2.89

360

RH Stabilizer Bar Link | Except Europe

706202538

$67.99

370

LH Stabilizer Bar Link | Except Europe

706202539

$67.99

380

Hex. Flange Elastic Nut M10

233201436

$2.11
