Description

Price

10

Radiator

709200951

$370.99

20

Grommet

709200948

$8.89

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

120

Hose

709200973

$14.31

130

Radiator Hose In

709201032

$16.40

135

Tubing 35 MM 1000MM Long

219704428

$10.99

140

Y Fitting

509001200

$5.50

145

Retainer

275500590

$9.69

150

Hose

709200299

$8.60

170

T-Fitting

509000510

$13.16

173

Torx Screw K50 X 16

250000720

$1.69

180

Hose Engine Out

709200915

$41.49

185

Hose

709200971

$41.49

220

Thermostat Housing

709200986

$96.49

235

Hose Coolant Tank Out

709201103

$38.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oetiker Gear Clamp

293650165

$5.39

240

Hose

709200969

$35.99

245

Heater Tubing

709200657

$19.49

256

Formed Thermostat Hose OUT

709201439

$16.40

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

300

Norma Spring Clamp

293650109

$4.12

330

Coolant Tank

709201323

$80.99

332

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Clamp

293650042

$3.09

335

Bleeding Hose

709200606

$20.99

337

Was 415129508 Bleeder Hose

219704416

$12.18

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

370

Front Radiator Deflector

705013987

$52.99

372

Front Radiator Deflector

705014486

$52.99

375

Tuflok Plastic Rivet

293150230

$1.47

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

600

Y Fitting

509001200

$5.50

610

T-Fitting

509000219

$15.89

615

T-Fitting

509000219

$15.89

625

Hose Thermostat In

709201031

$16.40

630

Formed Radiator Hose OUT

709201440

$11.10

632

Formed Radiator Hose OUT

709201437

$11.63

635

Hose

709200972

$14.31

650

Heater Tubing

709200657

$19.49

655

Gear Clamp

509000162

$7.29

670

Hose

709200976

$14.31

675

Hose

709200975

$14.31

745

Gear Clamp

509000162

$7.29

850

Oetiker Gear Clamp

293650165

$5.39

900

Tubing 35 MM 1000MM Long

219704428

$10.99

910

Tubing 35 MM 1000MM Long

219704428

$10.99

915a

Tubing 35 MM 1000MM Long

219704428

$10.99

920

Tubing 35 MM 1000MM Long

219704428

$10.99

930

Tubing 35 MM 1000MM Long

219704428

$10.99

1050

Hose Retainer

293650218

$9.39

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.47

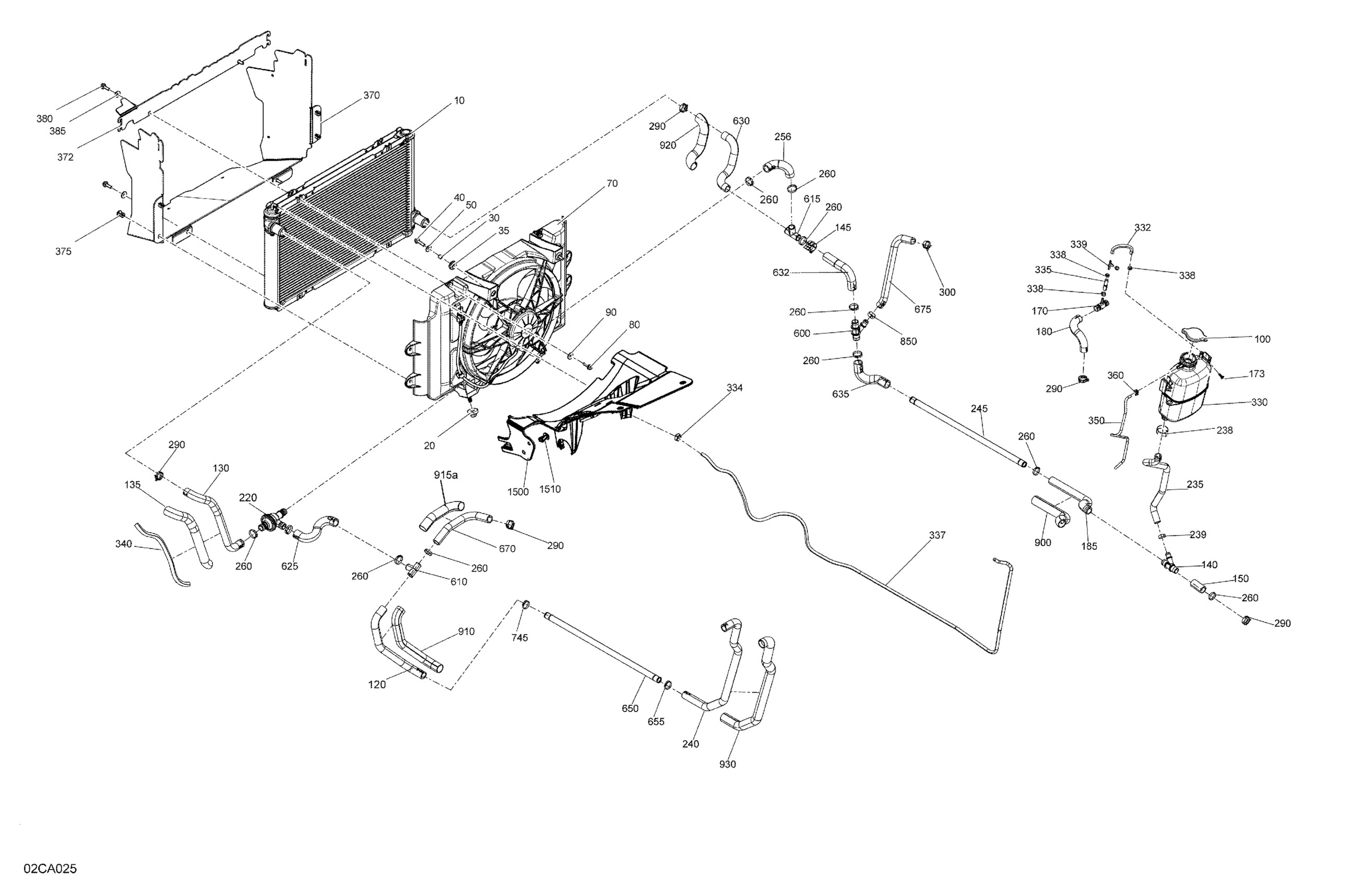

Can-Am 003 - Defender HD8 - CAB - North America, 2021 02- Engine - Cooling Diagram

Radiator

Grommet

Bushing

Grommet

Hex. Flange Screw M6 X 25

Flat Washer 6 mm

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Hose

Radiator Hose In

Tubing 35 MM 1000MM Long

Y Fitting

Retainer

Hose

T-Fitting

Torx Screw K50 X 16

Hose Engine Out

Hose

Thermostat Housing

Hose Coolant Tank Out

Oetiker Gear Clamp

Oetiker Gear Clamp

Hose

Heater Tubing

Formed Thermostat Hose OUT

Gear Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Tank

Was 415129508 Bleeder Hose

Oetiker Clamp

Bleeding Hose

Was 415129508 Bleeder Hose

Crimp Clamp, 15.3-706R

Y-Fitting

Tubing 16 Mm 1000Mm Long

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Spring Clamp

Front Radiator Deflector

Front Radiator Deflector

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Y Fitting

T-Fitting

T-Fitting

Hose Thermostat In

Formed Radiator Hose OUT

Formed Radiator Hose OUT

Hose

Heater Tubing

Gear Clamp

Hose

Hose

Gear Clamp

Oetiker Gear Clamp

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Hose Retainer

Front Air Deflector

Tuflok Plastic Rivet
