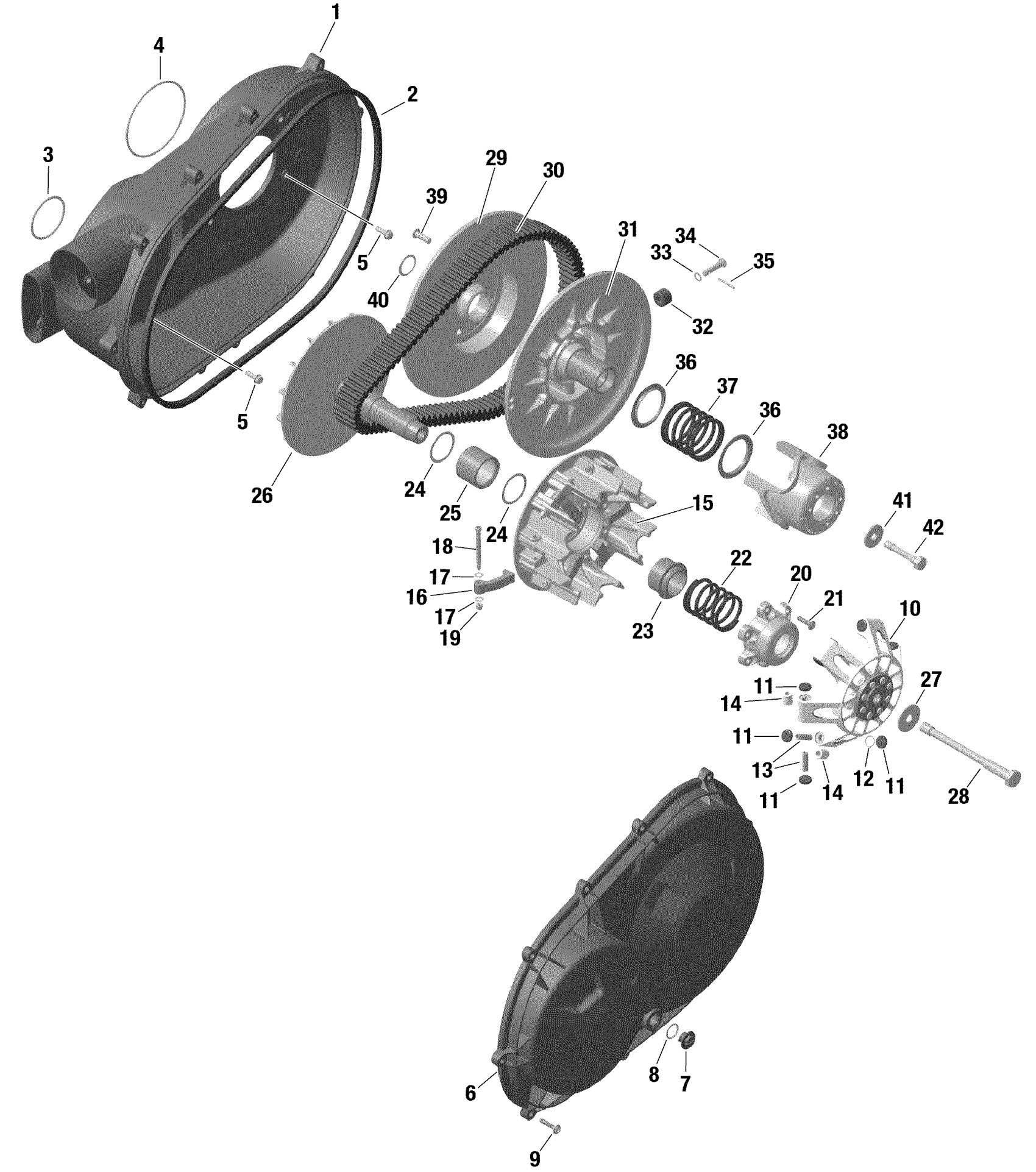

Can-Am 003 - Defender HD8 - CAB - North America, 2021 01- Rotax - Transmission Defender Diagram

#

Description
Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring

420430408

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212500

$200.99

7

Cap

420441820

$11.63

8

O-Ring

420250052

$10.43

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280746

$194.99

11

Slider Shoe Set

420281296

$65.49

12

O-Ring

420230456

$2.09

13

Roller Axle

417223257

$6.99

14

Roller

417223767

$11.59

15

Outer Half Ass'y

420280605

$289.99

16

Centrifugal Lever Kit

420248683

$243.49

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Bearing Cover Ass'y

420280615

$65.49

21

Torx Flange Screw M6 X 25

420841549

$2.00

22

Compression Spring

420638119

$35.99

23

Spring Seat

420427210

$37.99

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280596

$339.99

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Inner Half Ass'y

420280635

$179.99

30

Drive Belt

422280656

$174.99

31

Outer Half Ass'y

420280627

$369.99

32

Pulley Roller

417127016

$24.49

33

Lock Washer 8 mm

250200009

$2.11

34

Pivot Stud

417127294

$14.49

35

Dowel Pin

420629200

$2.51

36

Swivel Abutment

417127116

$9.39

37

Black, Return Spring

417127039

$46.49

38

Cam

420280647

$185.49

39

Binding Head Screw M8X25

420441981

$17.04

40

Distance Ring

420647263

$27.99

41

Collar Washer

420427243

$16.40

42

Hexagonal Screw M10X 61

420441990

$19.49
