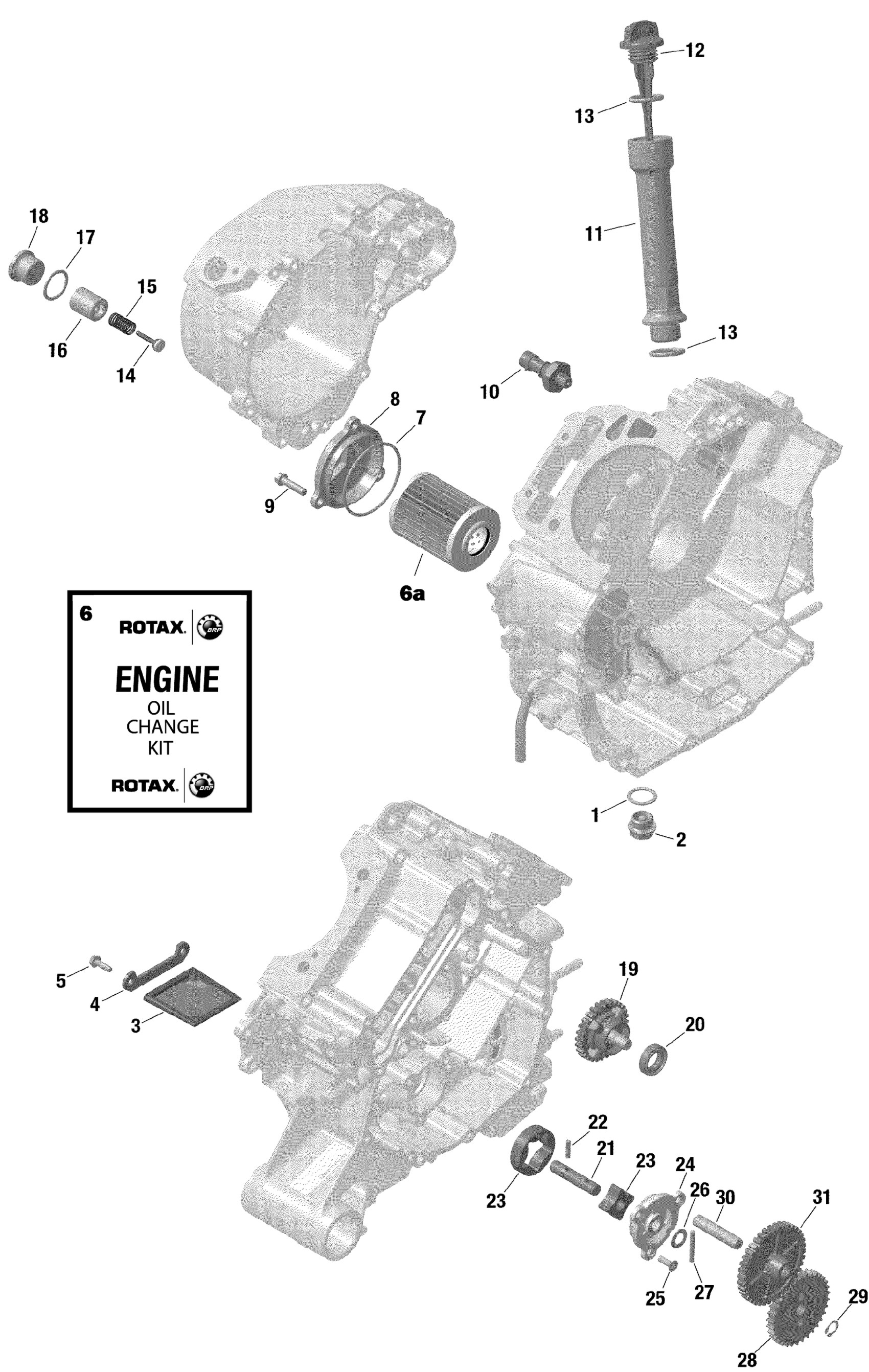

Can-Am 003 - Defender HD8 - CAB - North America, 2021 01- Rotax - Engine Lubrication Diagram

#

Description
Price

1

Crush Washer

420552280

$3.70

2

Drain Plug M18 X 1.5

420840278

$23.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420612070

$4.14

5

Taptite Screw M5 X 16

420941928

Unavailable

6

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.99

6

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$72.99

6a

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420440234

$3.06

10

Oil Pressure Switch

420256915

$40.99

11

Oil Lever Tube

420856925

$11.12

12

Oil Dipstick

420856810

$4.14

13

O-Ring

420631640

$2.11

14

Pressure Relief Valve

420656370

$19.19

15

Compression Spring

420939485

$12.99

16

Housing

420256487

$7.41

17

Gasket Ring

420650465

$13.16

18

Plug Screw

420640271

$13.77

19

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

20

Oil Seal

420430555

$19.99

21

Oil Pump Shaft

420237059

$29.49

22

Needle Pin

420232731

$4.01

23

Oil Pump Rotor

420256348

$77.99

24

Oil Pump Cover

420210646

$48.49

25

Torx Head Screw M5 X 16

420640823

$1.90

26

Thrust Washer

420827590

$4.01

27

Needle Pin

420232431

$4.39

28

Oil Pump Gear, 33 Teeth

420434320

$13.77

29

Circlip

504152282

$3.17

30

Location Pin 10 M6x50

420229302

$3.17

31

Idle Gear, 38 Teeth

420434300

$13.77
