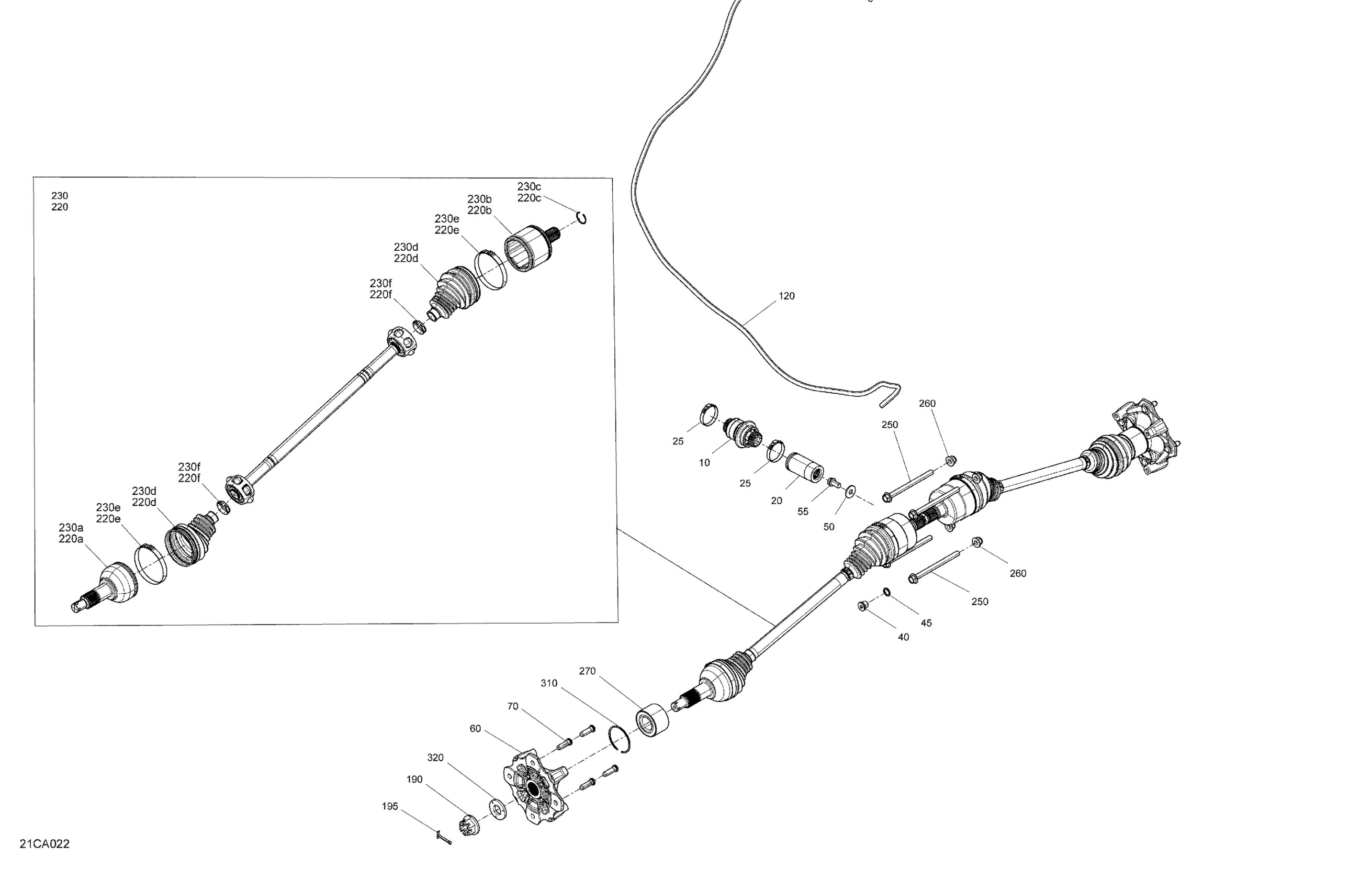

Can-Am 001 - Defender HD5 - BASE_DPS - North America, 2021 04- Drive - Rear Section - Common Parts Diagram

Drive Axle Ass'y

705401950

$179.99

Coupling Sleeve

705401969

$28.49

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

Wheel Hub

705502338

$116.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

Castle Nut M20

250100193

$8.05

Cotter Pin

250400084

$2.29

RH Rear - Premium CV Axle | Includes 220 to 220c2

705502479

$243.99

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

Plunging Joint

715900444

$275.49

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

LH Rear - Premium CV Axle | 1

705502478

$243.99

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

Plunging Joint

715900444

$275.49

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Hex. Flange Screw, M10 X 130

230603046

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M20

250200170

$14.74
