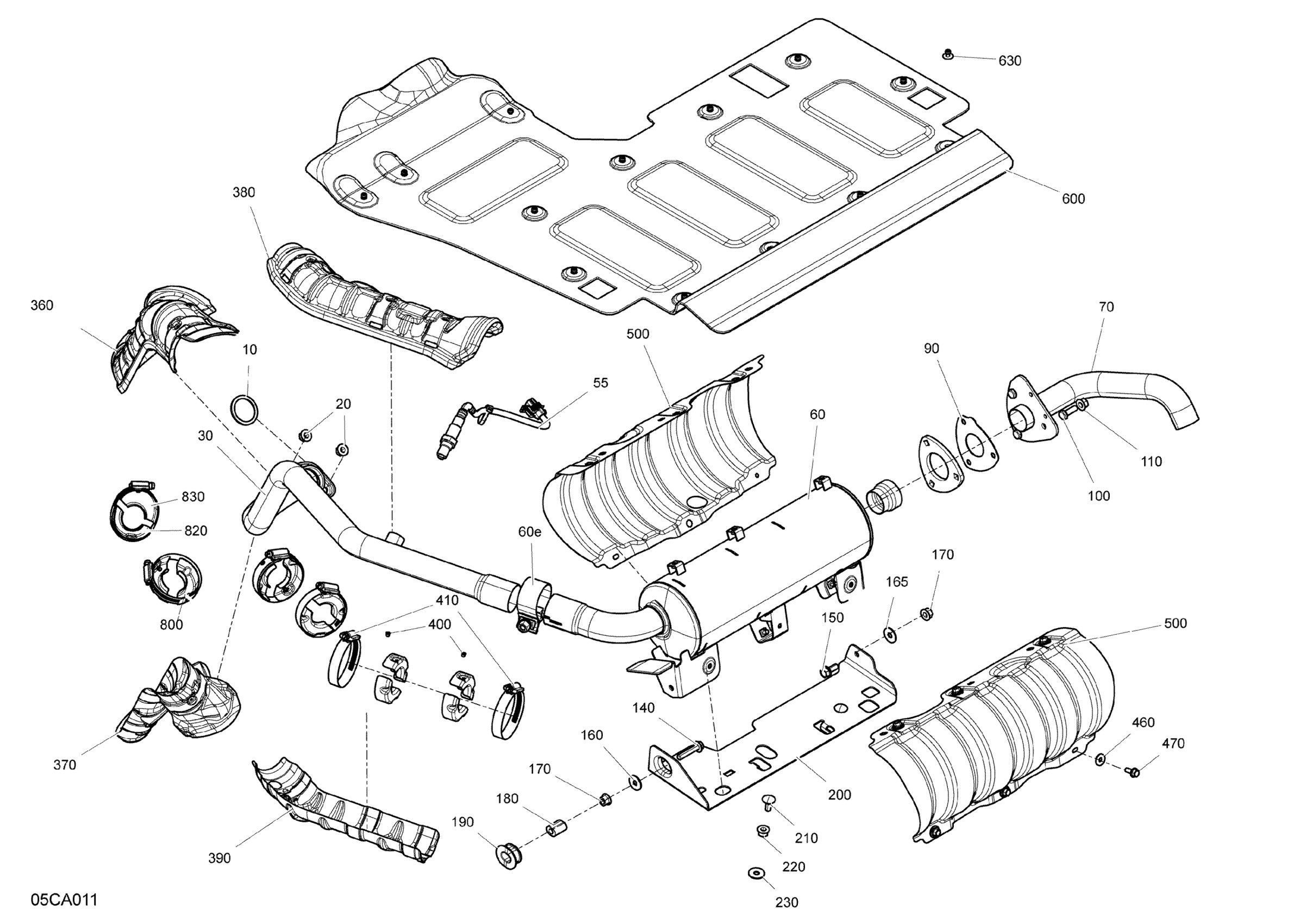

Can-Am 001 - Defender HD5 - BASE_DPS - North America, 2021 02- Engine - Exhaust Diagram

Description

Price

Gasket

707600317

$11.60

Hex. Flange Nut

233081436

$2.00

Exhaust Pipe

707601959

$174.49

Oxygen Sensor

707600872

$144.99

Exhaust Muffler | Includes 60 to 60a

707603427

$847.49

60e

Exhaust Pipe Clamp

293650228

$12.49

Tail Pipe

707602209

$94.49

Gasket

707602205

$12.63

100

Hex. Screw Cap DIN.933

207182546

$1.01

110

Hex. Flange Nut

233081436

$2.00

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Flat Washer 8 mm

234082410

$1.47

165

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut

233081436

$2.00

180

Spacer

707601969

$16.99

190

Rubber Mount

707602102

$7.90

200

Muffler Support

707601588

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut

233081436

$2.00

230

Flat Washer 8 mm

234082410

$1.47

360

Heat Shield, Front

707601923

$26.99

370

Front Heat Shield

707602403

$27.99

380

Heat Shield

707601955

$30.99

390

Heat Shield

707601956

$30.99

400

Pop Rivet 1/8 X

293150071

$0.98

410

Tridon Gear Clamp

293650258

$14.31

460

Flat Washer 6 mm

234062410

$0.77

470

Hex Flange Screw M6 X 16

250000906

$5.29

500

Protector

707602057

$23.49

600

Upper Heatshield

707602927

$289.99

630

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

800

Exhaust Pipe Spacer

707602026

$3.29

820

Exhaust Pipe Spacer

707601948

$6.95

830

Exhaust Pipe Spacer

707602016

$6.95
