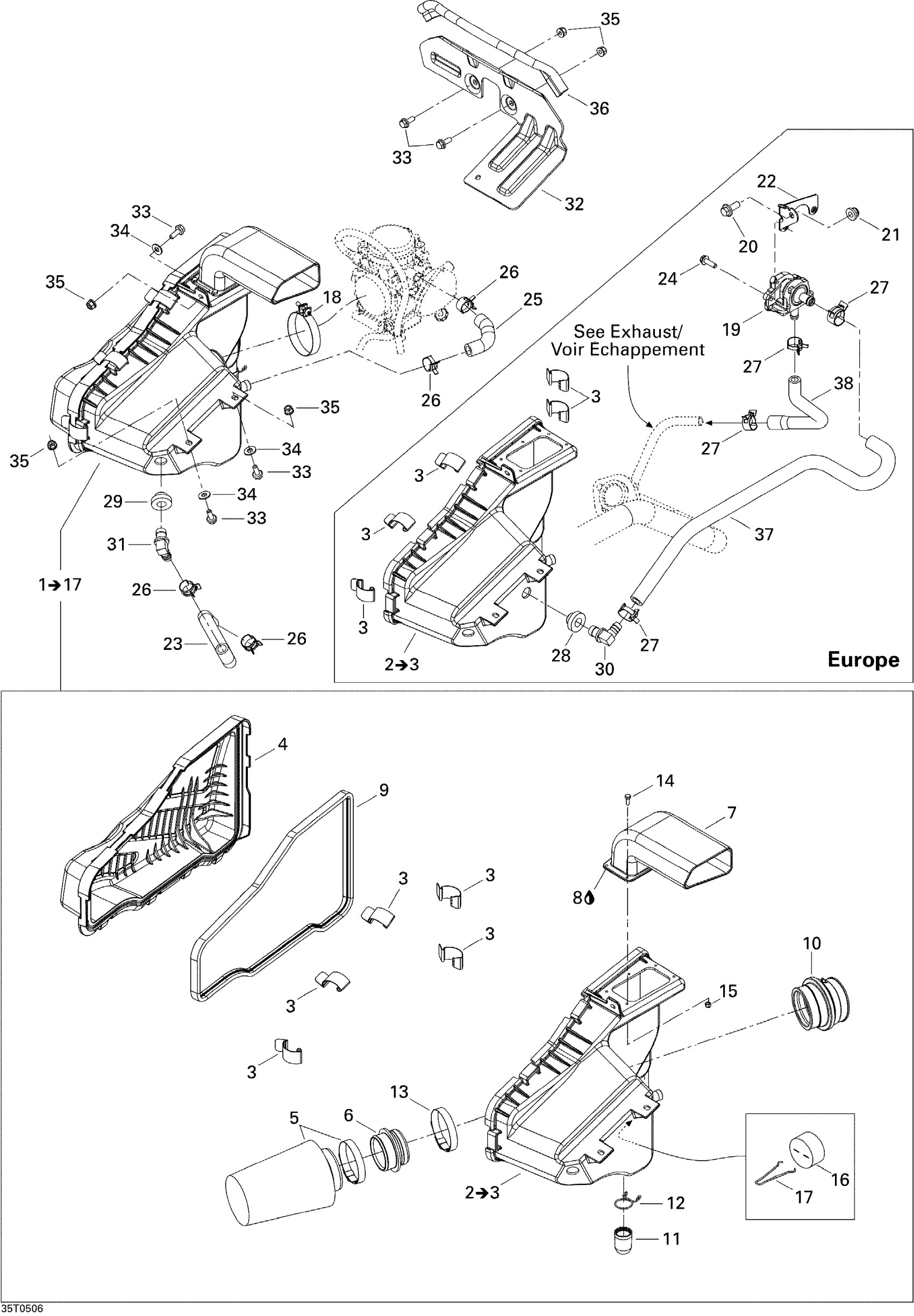

Can-Am Outlander MAX 400, 2005 02- Air Intake Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Silencer Base | Includes 2 to 3

707800115

Unavailable

2

Silencer Base | Includes 2 to 3 / Europe

707800210

Unavailable

3

Bracket Cover

707800079

Unavailable

4

Muffler Cover

707800119

Unavailable

5

Air Filter

707800120

$26.99

6

RIGID ADAPTOR - Call your local BRP dealership

707800134

Unavailable

7

Front Intake Adaptor

707800121

Unavailable

8

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

9

Oil Seal

293250133

Unavailable

10

INTAKE ADAPTOR - Call your local BRP dealership

707800150

Unavailable

11

Drain Tube

707800080

$8.29

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650036

$7.49

14

HEX. SCREW M4 X 12 - Call your local BRP dealership

207141244

Unavailable

15

Elastic Stop Nut M4

232541414

$0.58

16

FILTER FOAM - Call your local BRP dealership

707800088

Unavailable

17

FOAM BRACKET - Call your local BRP dealership

707800087

Unavailable

18

GEMI CLAMP - Call your local BRP dealership

293650155

Unavailable

19

AIR INJECTION VALVE - Call your local BRP dealership | Europe

707800208

Unavailable

20

Hex. Flange Screw M8 X 20

207682044

$1.15

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

AIR INJECTION VALVE SUPPORT - Call your local BRP dealership | Europe

707800212

Unavailable

23

Vent Hose

707800127

Unavailable

24

Hexagonal Head Screw

210262050

$2.11

25

Carburetor Vent Hose

707800128

Unavailable

26

Norma Clamp

293650110

$4.54

27

Norma Clamp

293650110

$4.54

28

Grommet | Europe

707800347

$10.49

29

Grommet | Europe

707800347

$10.49

30

Elbow Fitting

414523600

$4.86

31

Elbow Fitting

414523600

$4.86

32

Deflector

707800145

Unavailable

33

Hex. Flange Screw M6 X 20

207662044

$2.00

34

Flat Washer

250200082

$0.42

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Neoprene Seal 3000Mm Long

219704371

$51.99

37

INLET HOSE - Call your local BRP dealership | Europe

707800219

Unavailable

38

OUTLET HOSE - Call your local BRP dealership | Europe

707800220

Unavailable
