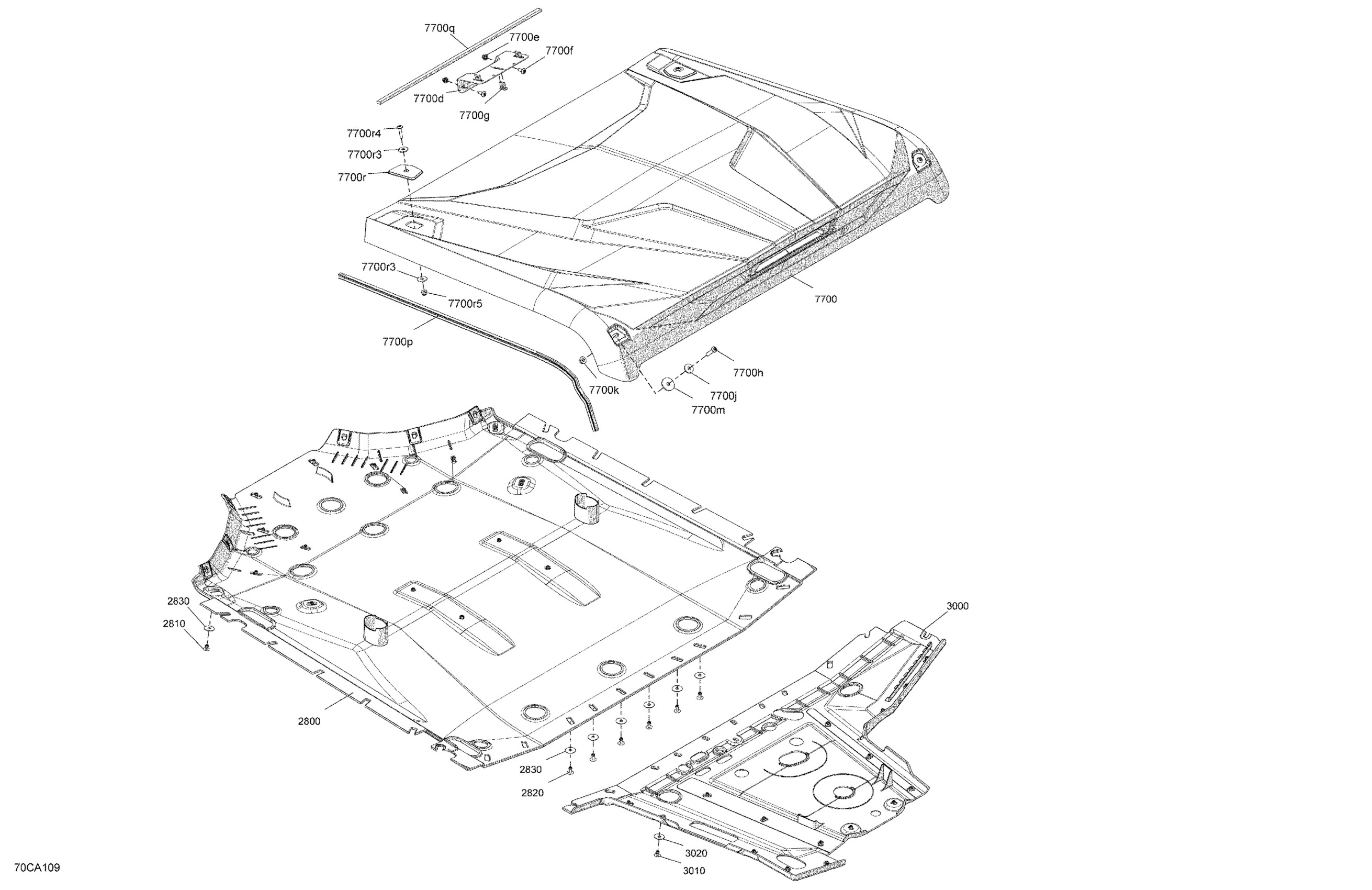

Can-Am 001 - Commander 1000R EFI - DPS_XT_XTP - North America, 2021 07- Body - Skid Plate and Roof Diagram

Description

Price

2800

Front Skid Plate

705014696

$191.49

2810

Pop Rivet 3/16”

293150087

$0.93

2820

Pop Rivet 3/16”

293150087

$0.93

2830

Washer

250200191

$2.11

3000

Rear Skid Plate

705014697

$98.49

3010

Pop Rivet 3/16”

293150087

$0.93

3020

Washer

250200191

$2.11

7700

Deep Black, Rigid Roof Kit | Includes 7700 to 7700r5

715006218

$359.99

7700b

Decal "Can-Am" | Not Shown

704904566

$10.99

7700d

Roof Anchor

705800214

$16.33

7700e

Insert Half Hex Body M6 x 1.0

250100199

$3.19

7700f

Torx Truss M8 X 16

250000881

$2.11

7700g

Torx Screw K50 X 16

250000720

$1.69

7700h

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

7700j

Stainless Steel Flat Washer

234082670

$2.11

7700k

Hex. Flange Nut M8

233181434

$2.11

7700m

Flat Washer M8

250200158

$2.11

7700n

Torx Screw M6 X 25

250000758

$2.11

7700p

Outer Seal

705800054

$35.99

7700q

Neoprene Seal (1PAC=3M)

219704364

$27.49

7700r

Spacer Kit

715006219

$27.99

7700r3

Stainless Steel Flat Washer

234082670

$2.11

7700r4

Stainless, Torx Screw M6 X 30

250000842

$2.11

7700r5

Hex. Flange Elastic Nut M6

233261494

$1.58
