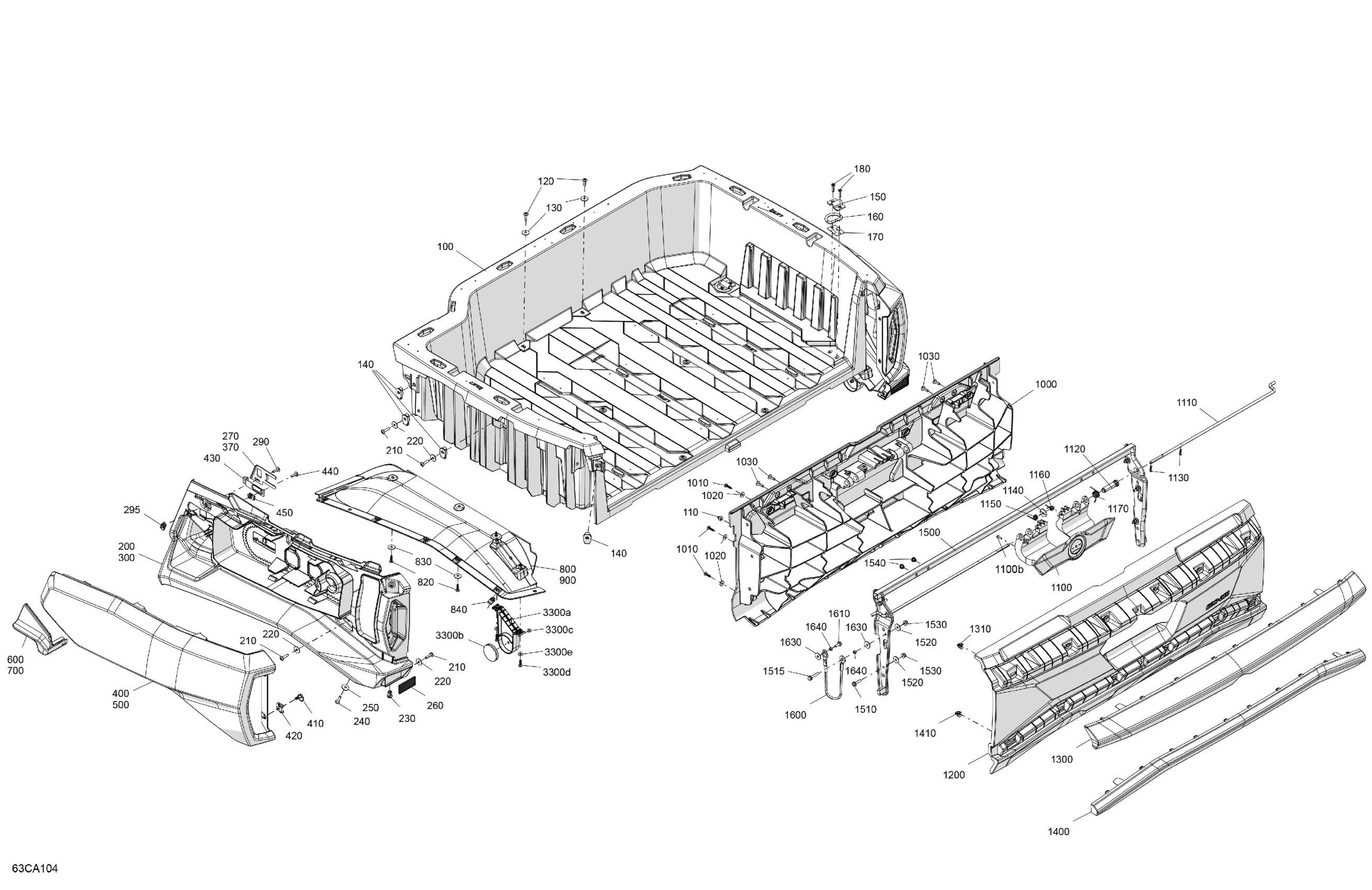

Can-Am 001 - Commander 1000R EFI - DPS_XT_XTP - North America, 2021 07- Body - Cargo - Upper Section Diagram

Open Carrier Ass'y

715007889

$499.99

Rubber Bumper

293830005

$8.09

Torx Screw M6 X 20

250000722

$1.68

Flat Washer M6.6 X 22

250200162

$2.32

Panel Nut M6 X 1.0

250100224

$2.11

Tie-Down Ring Bracket

708302992

$2.39

D-Ring

708302990

$4.29

Tie-Down Ring Spring

708302991

$2.39

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

LH Rear Mud Guard

705015041

$55.99

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Red Reflector

520001820

$20.99

LH Stop Plate

708303718

$4.19

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

RH Rear Mud Guard

705015042

$55.99

RH Stop Plate

708303719

$4.19

Timeless Black, LH Open Carrier Trim

708304852

$329.99

Break Up Country, LH Open Carrier Trim | Model Camo

708303559

$329.99

Oxford met Blue, LH Open Carrier Trim | Model Oxford Blue Metallic

708303555

$339.99

Tundra Green, LH Open Carrier Trim

708303382

$339.99

Quarter Turn Screw

705002649

$15.87

Quarter Turn Nut

705002651

$4.76

Latch

708303717

$8.39

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Timeless Black, RH Open Carrier Trim

708304855

$329.99

Break Up Country, RH Open Carrier Trim | Model Camo

708303560

$329.99

Oxford met Blue, RH Open Carrier Trim | Model Oxford Blue Metallic

708303556

$329.99

Tundra Green, RH Open Carrier Trim

708303383

$339.99

LH Handle

708304070

$47.49

RH Handle

708304071

$47.49

LH Rear Wheel Arch Protector

705015482

$41.49

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Panel Nut M6 X 1.0

250100198

$2.11

RH Rear Wheel Arch Protector

705015483

$44.49

Tailgate Liner

708303573

$349.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Washer M5

250200025

$0.74

Torx Screw M6 X 20

250000722

$1.68

Tailgate Handle Ass'y | Includes 1100 to 1100b

708303703

$24.49

Torx-Truss Pt K40 X 16

250000759

$2.11

Latch Rod

708303590

$14.49

Bushing Hinge

708304564

$3.39

Hairpin Cotter

269800431

$1.29

Washer

708301653

$2.61

Spring

705009470

$13.49

Spring

705009471

$13.49

Spring

705009468

$5.99

Exterior Tailgate Panel

708303389

$129.99

Timeless Black, Upper Tailgate Trim | Model Timeless Black

708303564

$284.99

Break Up Country, Upper Tailgate Trim | Model Camo

708303566

$279.99

Oxford Met Blue, Upper Tailgate Trim | Model Oxford Blue Metallic

708303563

$284.99

Tundra Green, Upper Tailgate Trim

708303390

$284.99

Clip

517306478

$1.09

Break Up Country, Lower Tailgate Trim | Model Camo

708303569

$284.99

Oxford Met Blue, Lower Tailgate Trim | Model Oxford Blue Metallic

708303567

$284.99

Tundra Green, Lower Tailgate Trim

708303391

$284.99

Timeless Black, Lower Tailgate Trim | Model XT with Timeless Black Colour

708303568

$284.99

Orange Crush, Lower Tailgate Trim | Model XTP with Timeless Black Colour

708303794

$284.99

Clip

517306478

$1.09

Male Panel Hinge

708303996

$139.99

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 25

207662554

$1.48

Flat Washer M6.6 X 22

250200162

$2.32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Cable

708301491

$31.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Flat Washer M6.6 X 22

250200162

$2.32

Bushing

708300737

$5.99

reflector Support

708303716

$19.99

Red Reflector

705011221

$14.49

Elastic Flange Nut M5

233251494

$2.11

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

234052450

$2.11
