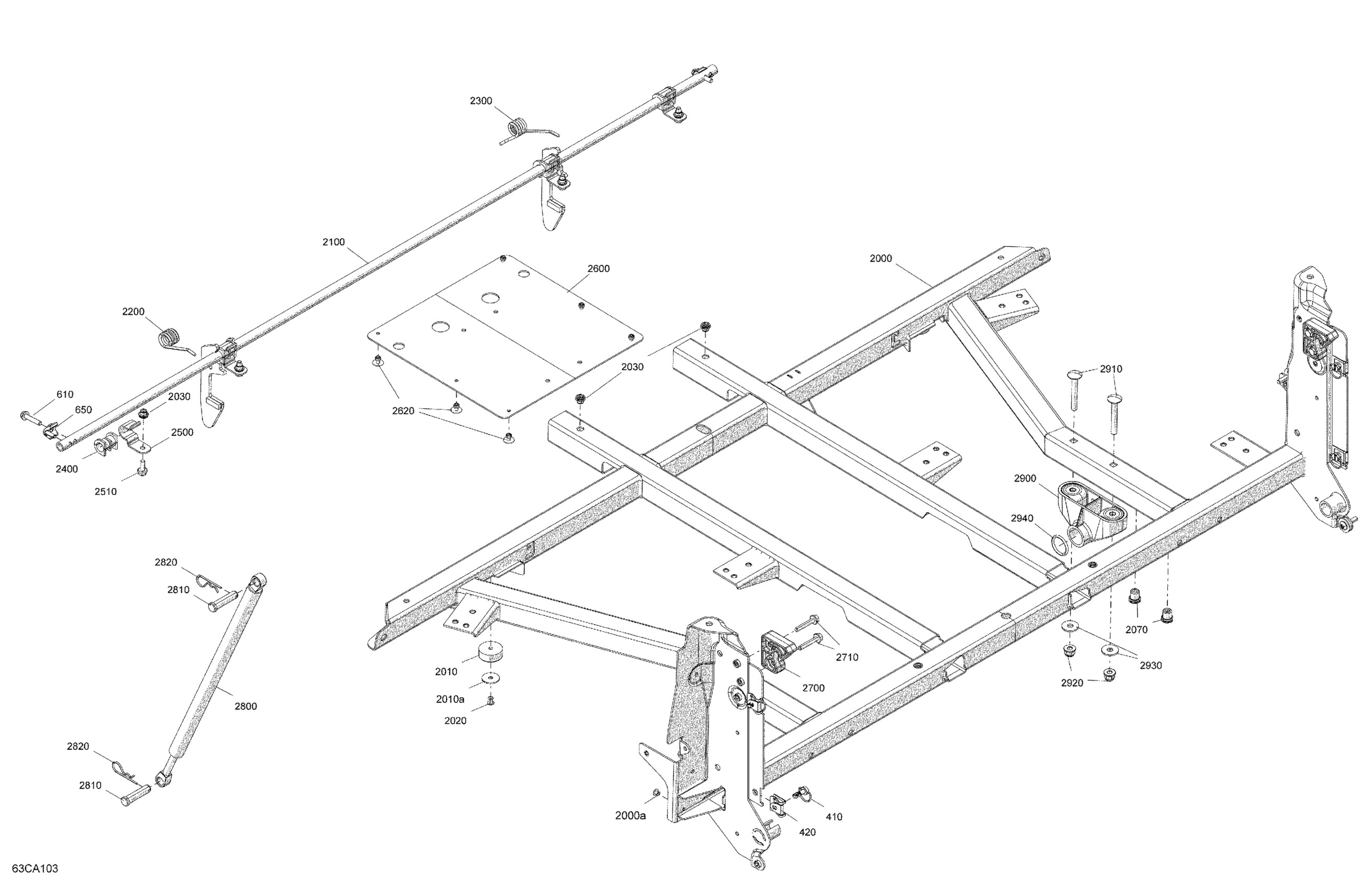

Can-Am 002 - Commander MAX 1000R EFI - DPS_XT - North America, 2021 07- Body - Cargo - Lower Section Diagram

Description

Price

410

Quarter Turn Screw

705002649

$15.87

420

Quarter Turn Nut

705002651

$4.76

610

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

650

Mounting Clamp

708304074

$4.49

2000

Open Carrier Frame | Includes 2000 to 2000a.s

708303379

$349.99

2000a

Pop Rivet 3/16"

390402200

$0.35

2010

Rubber Stopper | Includes 830 to 830a

708303134

$2.39

2010a

Washer

224060251

$0.58

2020

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2030

Insert Half Hex Body M6 x 1.0

250100199

$3.19

2070

Insert Half Hex Body M8 x 1.25

293450307

$2.69

2100

Latch Lever

708304029

$83.99

2200

LH Torsion Spring

708303190

$4.79

2300

RH Torsion Spring

708303191

$4.79

2400

Half Ring

705500033

$8.29

2500

Clamp Retainer

708301479

$3.98

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2600

Reinforcement

708304589

$34.99

2620

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2700

Stopper Latch

708304023

$10.99

2710

Hex. Flange Screw M6 X 35

207663554

$2.11

2800

Gas Shock Absorber

715007129

$54.99

2810

Clevis Pin

250400075

$5.99

2820

Hair Pin

414575600

$1.89

2900

Support Pivot

708303735

$17.49

2910

Carriage Bolt M8 X 60

207786044

$14.21

2920

Hex. Flange Elastic Nut M8

233281414

$1.47

2930

Flat Washer 8 mm

234082410

$1.47

2940

O-Ring

293300131

$5.29
