Description

Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

$929.99

1b

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Needle Bushing

420832240

$20.99

5

Needle Bushing

420232085

$37.99

6

Oil Seal

420250450

$17.04

7

3 Position Switch

420640192

$42.49

8

Copper Washer

420250640

$0.98

9

Magnetic Drain Plug M12

420241787

$17.99

10

O-Ring

420650350

$12.11

11

Plug Screw M14 X 1.5

420241662

$15.81

12

Distance Ring

420247772

$20.99

13a

Drive Ass'y | Includes 13a to 14

420635557

$444.99

13b

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Axial Needle Bearing

420632300

$18.49

16

Thrust Washer Set, MAG Side

420281306

$61.49

17

Washer Thrust Set

420281300

$95.49

18

Ball Bearing

420932822

$30.49

19

O-Ring

420631612

$4.33

20a

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

20b

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

24

Shim 0.5

420944584

$4.12

25

Ball Bearing

420932580

$10.33

26a

Distance Ring

420247114

Unavailable

26b

O-Ring

420631612

$4.33

27

Bearing Cover

420611444

$48.49

28

Oil Seal

420950089

$19.49

29

Torx Flange Screw M8 X 25

420440372

$4.12

30

Torx Flange Screw M6 X 85

420641228

$7.41

31

Torx Flange Screw M6 X 35

420641258

$3.38

32

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

33

Torx Flange Screw M8 X 35

420641188

$7.41

B

Loctite 243, 10 ml

293800060

$21.49

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Parts

XXX

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

AD

Not Available As Spare Parts

XXX

Unavailable

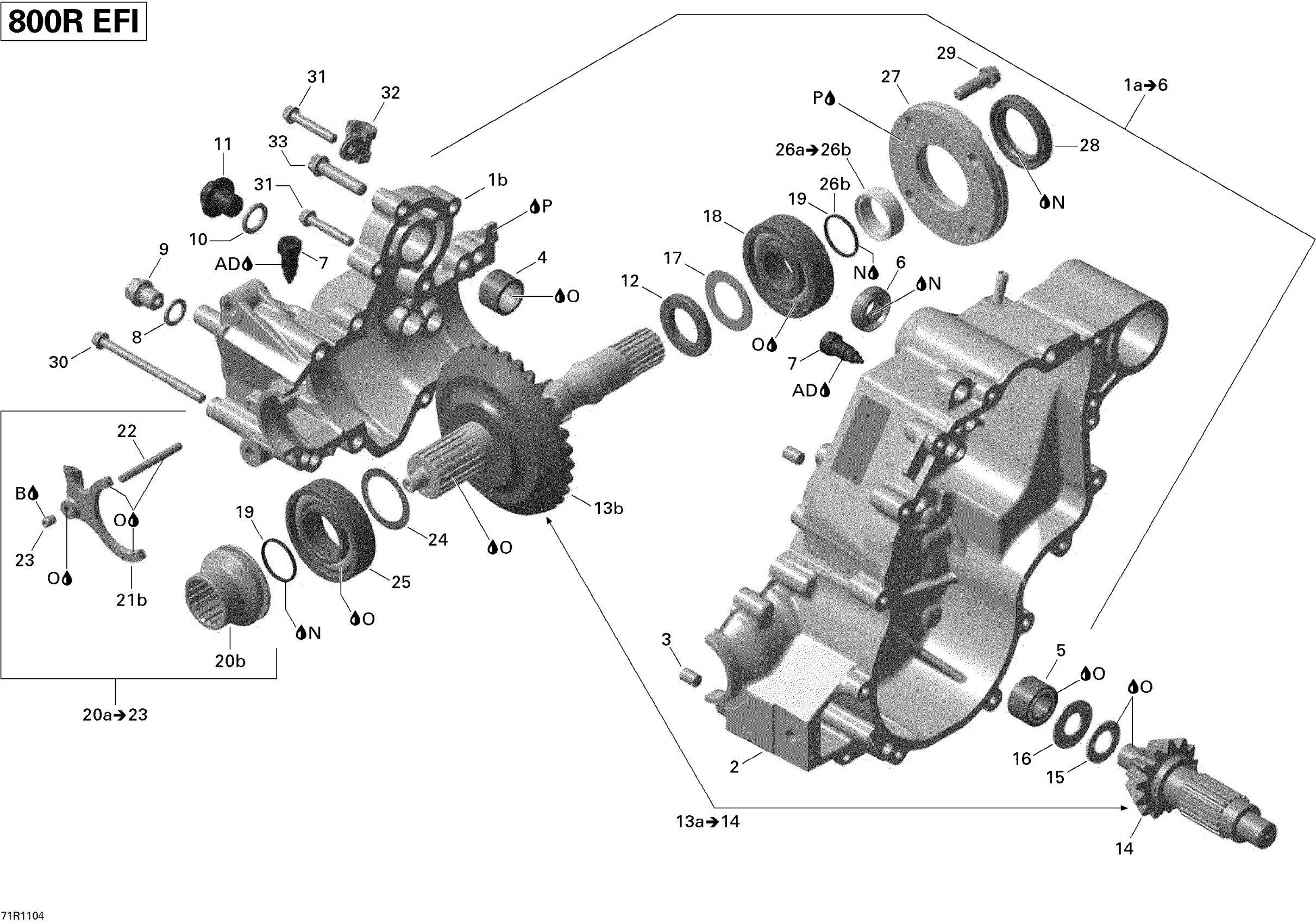

Can-Am Renegade 800R EFI, 2011 01- Gear Box Output Shaft Diagram

Gear Housing Ass'y | Includes 1a to 7

Not Available As Spare Parts

Not Available As Spare Parts

Center Pin 8 X 12

Needle Bushing

Needle Bushing

Oil Seal

3 Position Switch

Copper Washer

Magnetic Drain Plug M12

O-Ring

Plug Screw M14 X 1.5

Distance Ring

Drive Ass'y | Includes 13a to 14

Not Available As Spare Parts

Not Available As Spare Parts

Axial Needle Bearing

Thrust Washer Set, MAG Side

Washer Thrust Set

Ball Bearing

O-Ring

Shifting Sleeve Kit | Includes 26a to 29

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

SET SCREW M6 X 8 - Call your local BRP dealership

Shim 0.5

Ball Bearing

Distance Ring

O-Ring

Bearing Cover

Oil Seal

Torx Flange Screw M8 X 25

Torx Flange Screw M6 X 85

Torx Flange Screw M6 X 35

CABLE CLAMP - Call your local BRP dealership

Torx Flange Screw M8 X 35

Loctite 243, 10 ml

Grease, Super Lube

Not Available As Spare Parts

Loctite 5910, 300 ml

Not Available As Spare Parts
