Description

Price

90

Hazard Lights Switch

710006107

$19.49

95

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

150

Switch 2X4

710005489

$31.99

160

Differential Lock Switch

710005470

$46.49

180

Switch HDC

710006553

$24.99

200

Multifonction Switch

710006650

$87.99

210

Inter Allumage *Ignition

710007870

$55.99

215

Key Switch Protector

710005739

$2.69

250

Housing Support

710005672

$10.49

300

Main Wiring Harness

710006766

$929.99

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

340

Front Wiring Harness

710006218

$109.99

352

Position Light Harness

710005676

$15.49

600

Full Size Multifunction Gauge

710006854

$449.99

700

LH Headlamp | Includes 700 to 700a

710008230

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Fascia Trim

705011485

$43.99

710

RH Headlamp | Includes 710 to 710a

710008231

$199.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Fascia Trim

705011486

$43.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.69

715

Torx Screw K50 X 16

250000720

$1.69

716

Stainless Steel Flat Washer

234062670

$2.11

717

Ajustment Screw

710005837

$6.35

718

Adjustment Guide

710005097

$9.59

719

O-Ring

293300192

$4.92

1100

12V Power Outlet

710005374

$33.99

1500

Turn Signal | Europe

710001721

$209.99

1501

Hex. Forming Screw M5 X 16

210251650

$1.15

1502

Lock Washer 5 mm | Europe

234151401

$0.55

1503

Flasher Decal | Europe

704902614

$19.99

1550

Flasher Unit

710003239

$78.49

1580

Horn

710004791

$38.99

1581

Torx Truss Screw M6 X 16

250000721

$1.69

1582

Hex. Flange Elastic Nut M6

233261494

$1.58

1585

Horn Bracket

710006055

$65.99

1590

Flasher | Europe

710002964

$35.99

1591

Torx Truss Screw M6 X 16

250000721

$1.69

1592

Flat Washer 6 mm

234061410

$1.36

1600

Day Light | Europe

710001726

$35.99

1650

Support Connector

710006056

$6.49

1651

Screw PT Type K-50 X 16

250000959

$2.11

1652

Screw PT Type K-50 X 16

250000959

$2.11

1660

Yaw Rate Sensor

710005658

$179.99

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

1664

Yaw Sensor Support

710006501

$34.99

1680

Speed Sensor

710006981

$83.99

1682

Screw PT Type K-50 X 16

250000959

$2.11

1684

Clip

710001343

$9.09

1690

Sensor Support

705402088

$2.54

1693

RH ABS Harness Support

710006554

$19.99

1694

LH ABS Harness Support

710006555

$19.99

1695

Hex Screw Washer Head M8 X 20

207582054

$3.17

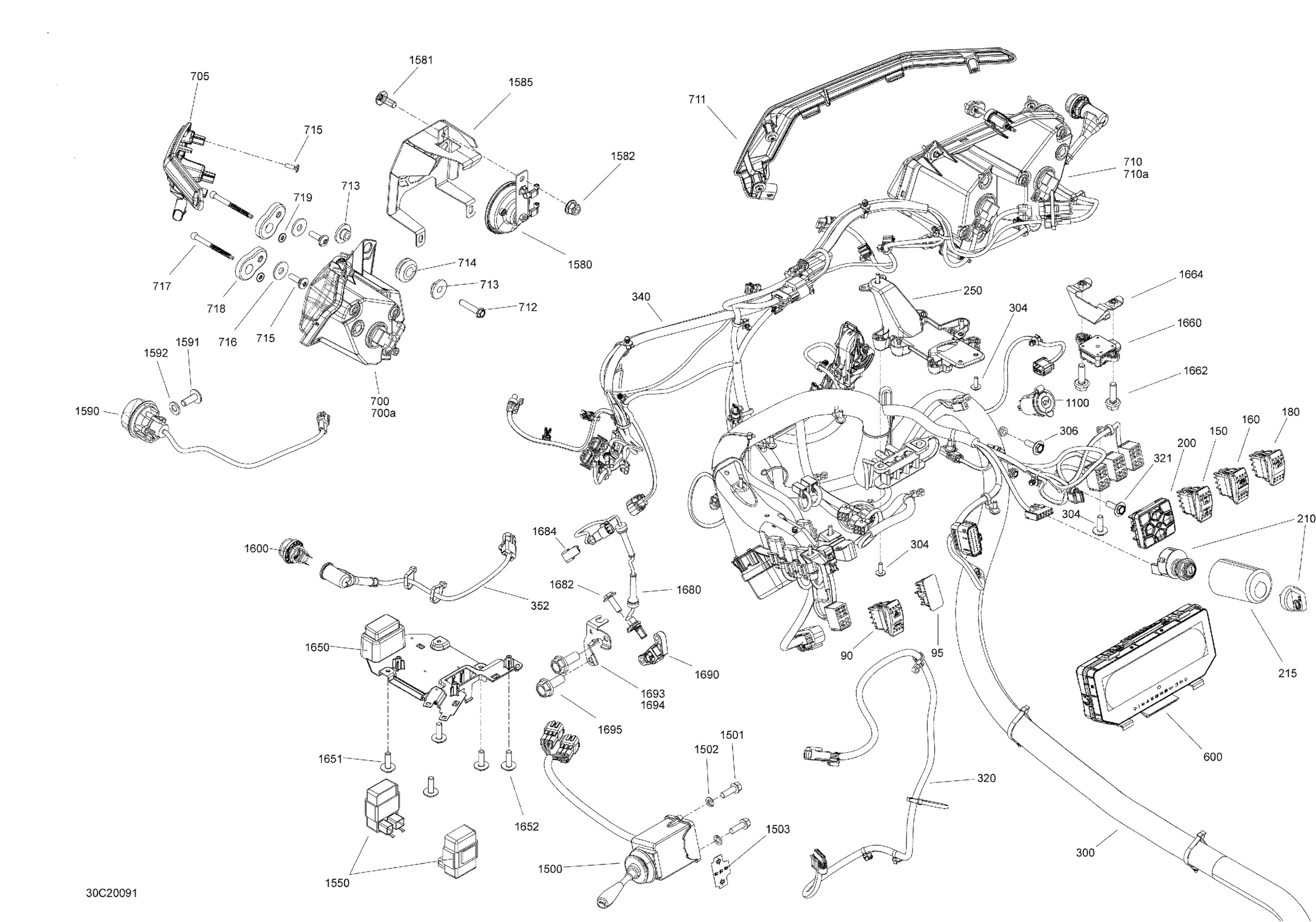

Can-Am 001 - Maverick Sport 1000R - T Regulation, 2020 10- Electrical System - Front Diagram

Hazard Lights Switch

Plug Carling | Australia, Brazil, Europe, Japan

Switch 2X4

Differential Lock Switch

Switch HDC

Multifonction Switch

Inter Allumage *Ignition

Key Switch Protector

Housing Support

Main Wiring Harness

Screw PT Type K-50 X 16

Screw PT Type K-50 X 16

Trottle Pedal Harness

Screw PT Type K-50 X 16

Front Wiring Harness

Position Light Harness

Full Size Multifunction Gauge

LH Headlamp | Includes 700 to 700a

Bulb 12V 55W

LH Fascia Trim

RH Headlamp | Includes 710 to 710a

Bulb 12V 55W

RH Fascia Trim

Hex. Flange Screw K50 X 2.24 X 25

Shoulder Bushing

Grommet

Torx Screw K50 X 16

Stainless Steel Flat Washer

Ajustment Screw

Adjustment Guide

O-Ring

12V Power Outlet

Turn Signal | Europe

Hex. Forming Screw M5 X 16

Lock Washer 5 mm | Europe

Flasher Decal | Europe

Flasher Unit

Horn

Torx Truss Screw M6 X 16

Hex. Flange Elastic Nut M6

Horn Bracket

Flasher | Europe

Torx Truss Screw M6 X 16

Flat Washer 6 mm

Day Light | Europe

Support Connector

Screw PT Type K-50 X 16

Screw PT Type K-50 X 16

Yaw Rate Sensor

Hex. Flange Screw M6 X 20, Scotch Grip

Yaw Sensor Support

Speed Sensor

Screw PT Type K-50 X 16

Clip

Sensor Support

RH ABS Harness Support

LH ABS Harness Support

Hex Screw Washer Head M8 X 20
