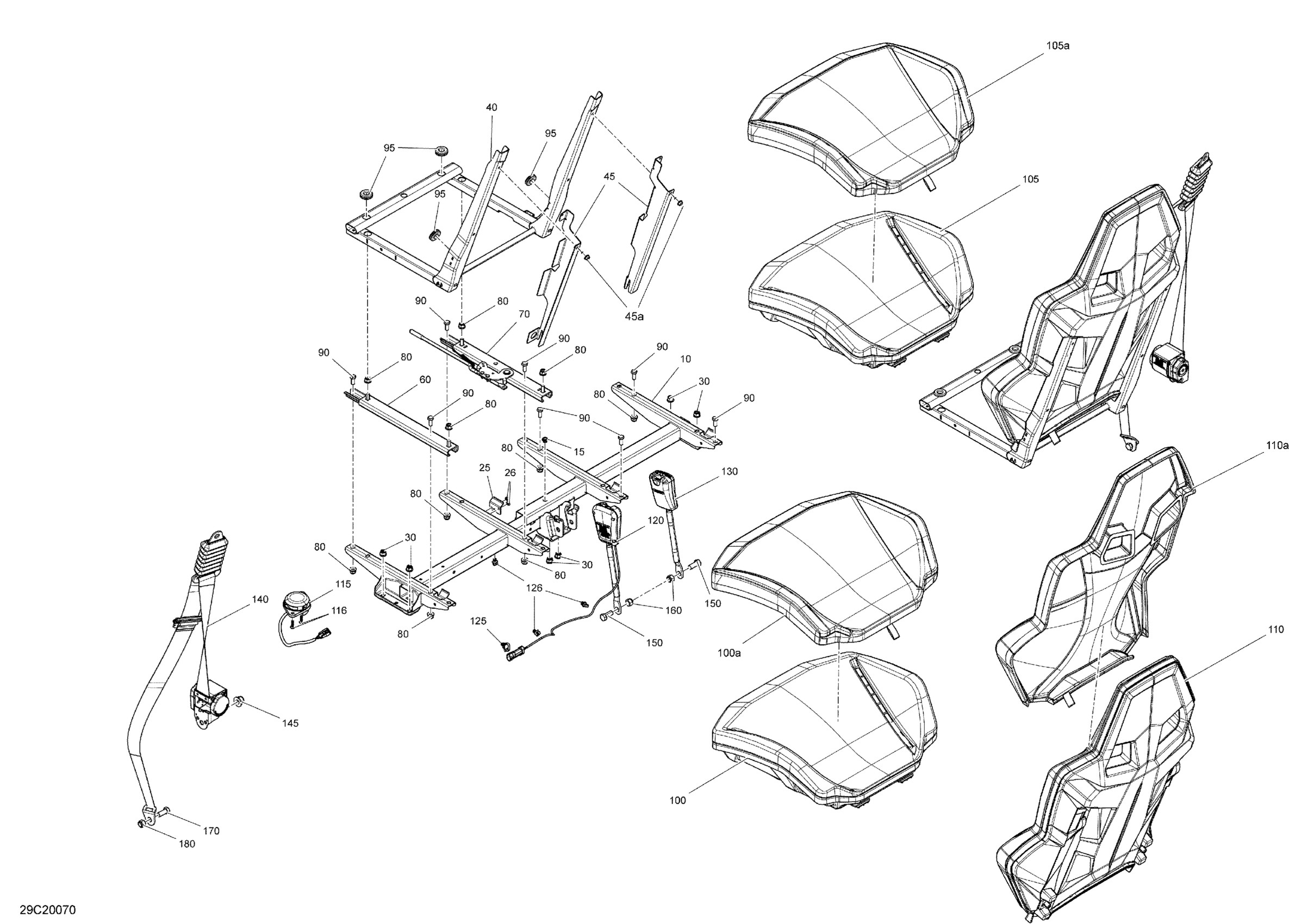

Can-Am 001 - Maverick Sport 1000R - T Regulation, 2020 09- Seat Diagram

Seat Member

708002421

$124.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Seat Stopper

708003672

$2.59

Pop Rivet 3/16"

390402200

$0.35

Hex. Flange Elastic Nut M8

233281414

$1.47

Seat Frame

708002423

$329.99

Seat Support Kit | Includes 45 to 45c

708002945

$199.99

Hex. Flange Screw M6 X 16

207661654

$2.11

LH Rail

708000848

$53.99

RH Rail

708002711

$35.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Screw M8 X 20

207182044

$0.74

Grommet

517303756

$4.09

Cushion Ass'y

708002847

$249.99

Not Available As Spare Part - Friction Washer

Unavailable

Cushion Ass'y

708002847

$249.99

Not Available As Spare Part - Friction Washer

Unavailable

Backrest Ass'y

708002859

$349.99

Not Available As Spare Part - Friction Washer

Unavailable

Passenger Detection Switch

710008103

$76.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Driver Buckle

708002331

$70.99

Christmas Tree Tie-Rap

710005237

$7.16

Dart Tie Rap 200MM

710003168

$7.09

Passenger Buckle

708002329

$67.99

Safety Belt

708003378

$238.49

Elastic Flange Nut M12

233221416

$2.85

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

Lock Nut Nylon 7/16

250100183

$2.00

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

Lock Nut Nylon 7/16

250100183

$2.00
