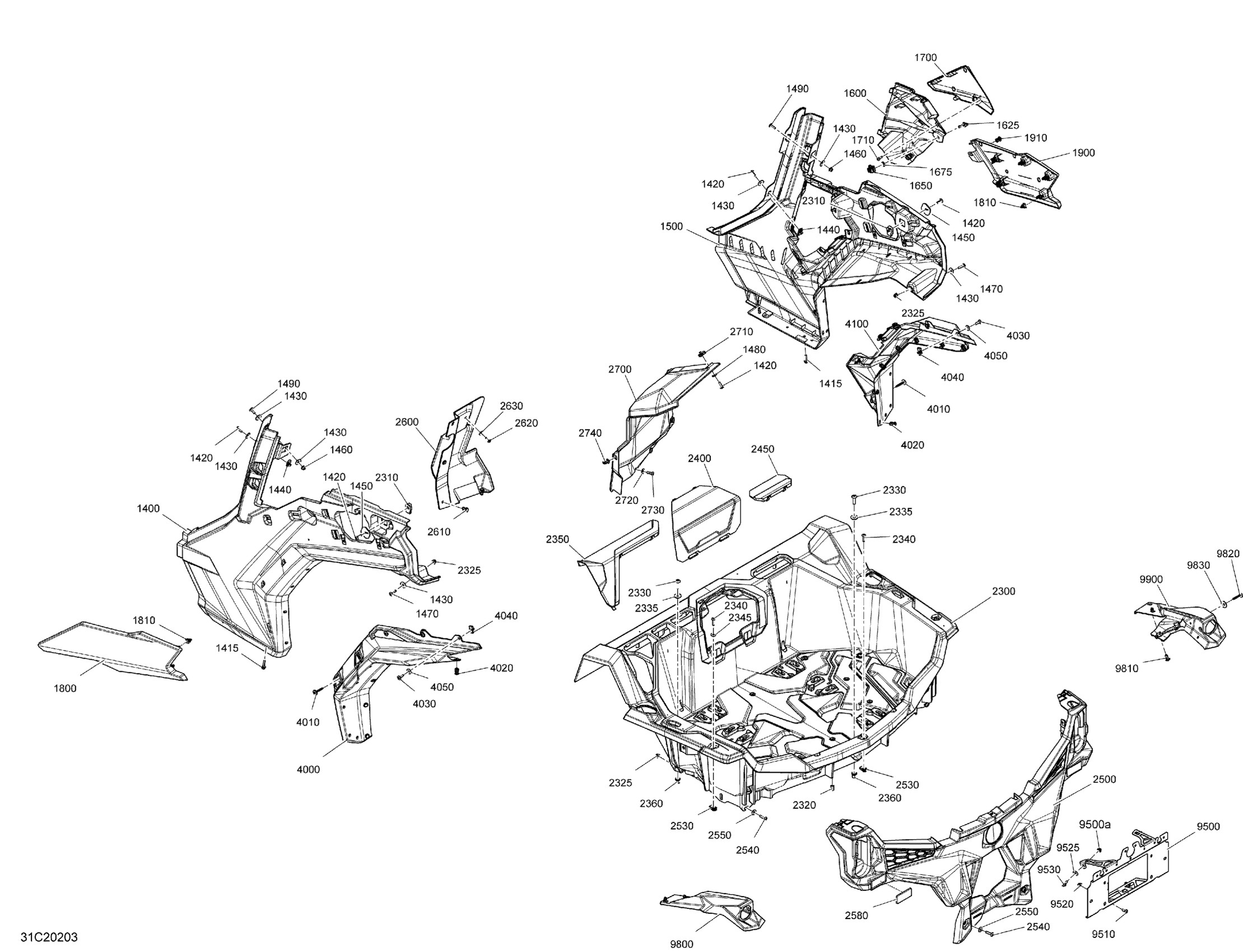

Can-Am 001 - Maverick Sport 1000R - T Regulation, 2020 09- Body - Rear Section - Red Diagram

LH Rear Panel

705011335

$204.99

Hex. Flange Screw M6 X 25

207662554

$1.48

Torx Screw M6 X 20

250000722

$1.68

Flat Washer M6.6 X 22

250200162

$2.32

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

705003841

$0.99

Hex. Elastic Flange Nut M6

233161464

$1.01

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

RH Rear Panel

705011336

$204.99

Air Filter Acces Door

705011338

$75.99

Quarter Turn

708400278

$4.29

Clip

708400285

$3.99

Washer

708400286

$3.99

Red, Acces Panel Trim | DPS, Red Model

705016392

$109.99

Torx Screw K50 X 16

250000720

$1.69

Red, LH Rear Cargo Trim | DPS, Red Model

705012427

$189.99

Clip

517306478

$1.09

Red, RH Rear Cargo Trim | DPS, Red Model

705012428

$189.99

Tuflok Plastic Rivet

293150230

$1.47

Rear Box

705016885

$399.99

Panel Nut M6 X 1.0

250100224

$2.11

Hex. Coupling Nut M6

250100207

$2.00

Hex. Flange Elastic Nut M6

233261466

$2.00

Hex Torx Truss M8 X30

250000745

$3.17

Stainless Steel Flat Washer

234082670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

CVT Air Inlet Cover

705011339

$18.99

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Access Cover Kit

715006766

$27.99

Air Intake Cover

705011340

$16.99

Rear Fascia

705011426

$169.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Red Reflector

520001820

$20.99

LH Rear Wheel Arch Protector

705014231

$41.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Washer M5

250200025

$0.74

RH Rear Inner Fender

705011513

$41.49

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

Tuflok Plastic Rivet

293150230

$1.47

LH Rear Mud Guard

705012097

$56.99

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

RH Rear 60" Mud Guard Extension

705012098

$56.99

Licence Plate Support Ass'y | Includes 9500 to 9500a

705014946

$114.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Truss Screw M6 X 16

250000721

$1.69

Hex. Flange Elastic Nut M6

233261466

$2.00

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 16

207661654

$2.11

LH Rear Flasher Support Model T

705012799

$58.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Stainless Steel Flat Washer

234082670

$2.11

RH Rear Flasher Support Model T

705012800

$30.49
