Description

Price

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

150

Torx Screw M6 X 45

250000748

$1.90

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Red, LH Hood Ass'y | DPS, Red Model

705012411

$309.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Red, RH Hood Ass'y | DPS, Red Model

705012412

$309.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

3800

LH Front 60" Mud Guard Extension

705011325

$56.99

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3820

Tuflok Plastic Rivet

293150230

$1.47

3900

RH Front 60" Mudguard Extension

705011326

$56.99

4200

Hinge Cover

705012703

$15.99

9300

Front Mud Flap Model T

705012793

$56.99

9310

Tuflok Plastic Rivet

293150230

$1.47

9400a

Mirror

705011497

$80.49

9400b

Wide Angle Lateral Mirror

705013819

$80.49

9400c

LH Mirror Rod Ass'y

705013823

$48.99

9400d

Mirror Rod

705013817

$52.99

9400e

LH Mirror Support

705012897

$73.99

9400f

RH Mirror Support

705012898

$73.99

9400g

Torx Truss Screw M6 X 20

250000350

$5.29

9400h

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

9400j

Hex. Flange Screw M8 X 35

207683544

$1.69

9400k

Hex. Flange Elastic Nut M6

233261494

$1.58

9400m

Hex. Flange Elastic Nut M8

233281414

$1.47

9400n

Stainless Steel Flat Washer

234082670

$2.11

9600

LH Front Flasher Support Model T

705012791

$58.49

9610

Tuflok Plastic Rivet

293150230

$1.47

9640

Stainless Steel Flat Washer

234082670

$2.11

9700

RH Front Flasher Support Model T

705012792

$58.49

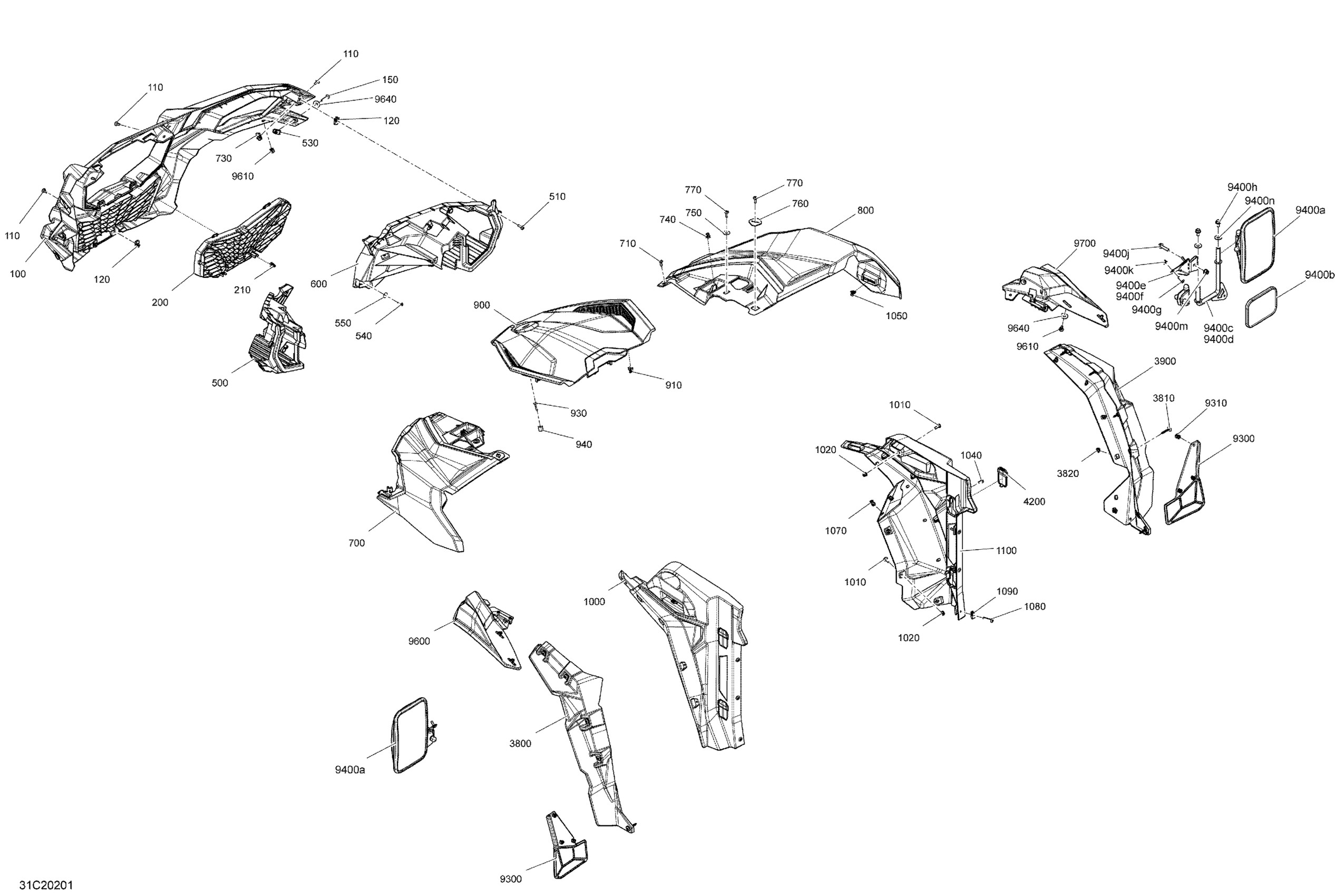

Can-Am 001 - Maverick Sport 1000R - T Regulation, 2020 09- Body - Front Section - Red Diagram

Front Fascia

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Torx Screw M6 X 45

Fascia Removable Grid

Clip

LH Headlamp Structure

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Stainless Steel Flat Washer

RH Headlamp Structure

Red, LH Hood Ass'y | DPS, Red Model

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Clip

Flat Washer M6.6 X 22

Support Plate

Torx Screw M6 X 20

Red, RH Hood Ass'y | DPS, Red Model

Removable Hood

Clip

Torx Truss Screw M6 X 25

Bushing

LH Front Mudguard

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Torx Truss Screw M6 X 16

Clip

Tuflok Plastic Rivet

Torx Truss Hex. Screw M6X35, Nylon Patch

Panel Nut M6 X 1.0

RH Front Mudguard

LH Front 60" Mud Guard Extension

Torx Truss Screw Head PT.K50 X 40

Tuflok Plastic Rivet

RH Front 60" Mudguard Extension

Hinge Cover

Front Mud Flap Model T

Tuflok Plastic Rivet

Mirror

Wide Angle Lateral Mirror

LH Mirror Rod Ass'y

Mirror Rod

LH Mirror Support

RH Mirror Support

Torx Truss Screw M6 X 20

Hex. Flange Screw M8 X 16, Scotch Grip

Hex. Flange Screw M8 X 35

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Stainless Steel Flat Washer

LH Front Flasher Support Model T

Tuflok Plastic Rivet

Stainless Steel Flat Washer

RH Front Flasher Support Model T
