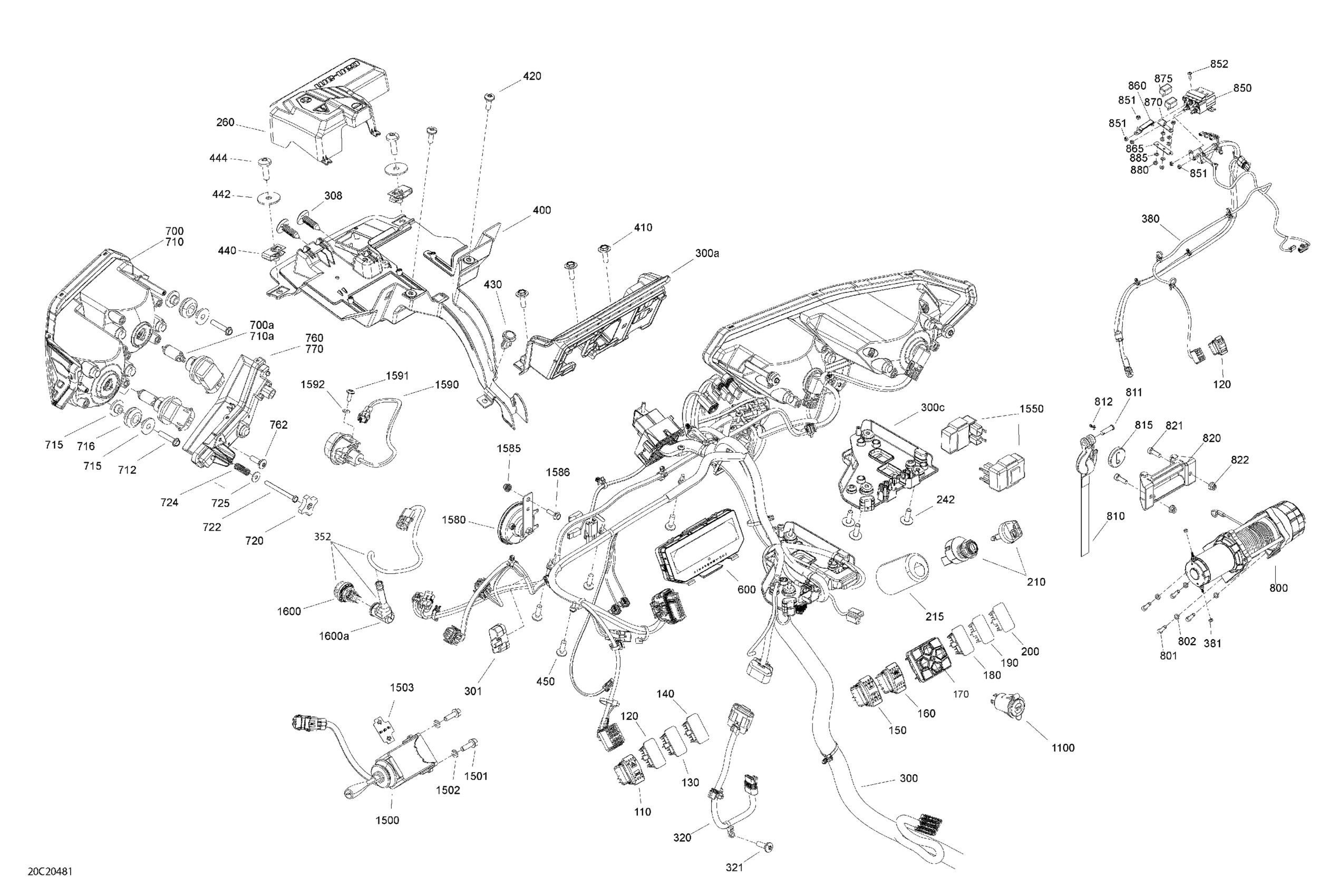

Can-Am 002 - Traxter T HD8 - T Regulation, 2020 10- Electric - System - Front Section Diagram

Hazard Lights Switch

710006107

$19.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch Winch

710002052

$28.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch 2X4

710005489

$31.99

Differential Lock Switch

710005470

$46.49

Multifonction Switch

710006650

$87.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Inter Allumage *Ignition

710007870

$55.99

Key Switch Protector

710005739

$2.69

Screw PT Type K-50 X 16

250000959

$2.11

Junction Block Cover

710006707

$6.35

Main Wiring Harness | Includes 300 to 300c

710006753

$929.99

Fusebox Support

710006640

$8.81

Connector Support

710006706

$6.49

DPS Connector Cap | Not Shown

710005760

$16.86

Black, Dart

293730006

$0.99

Throttle Pedal Harness

710006837

$239.99

Torx Screw K50 X 16

250000720

$1.69

Position Light Harness

710005676

$15.49

Winch Wiring Harness | XT_XTP

710006653

$110.99

Elastic Stop Nut M6

232561434

$1.99

Wiring Harness Support

710006649

$24.49

Screw PT Type K-50 X 16

250000959

$2.11

Torx Screw K50 X 16

250000720

$1.69

Tuflok Plastic Rivet

293150230

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

Washer M6

250200029

$2.50

Torx Screw M6 X 20

250000712

$2.11

Torx Screw K50 X 16

250000720

$1.69

Full Size Multifunction Gauge

710006854

$449.99

LH Headlamp | Includes 700 to 700a

710008313

$214.99

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

RH Beam Ass'y

710005730

$229.99

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Flat Washer 4 mm, Stainless

234042600

$1.15

Deep Black, LH Front Headlight Trim

705013593

$20.99

Torx Screw K50 X 16

250000720

$1.69

Deep Black, RH Front Headlight Trim

705013595

$20.99

Electric Winch | Includes 800 to 800a

710006993

$208.49

Socket Head Screw M8 X 30

205083044

$1.15

Lock Washer 8 mm

234181401

$0.92

Winch Hook Kit

705014949

$24.99

Winch Hook Kit

705014949

$24.99

Winch Hook Kit

705014949

$24.99

Stopper

710007028

$3.82

Fairlead Roller

710007082

$59.49

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Solenoid

710006991

$62.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Torx Screw K50 X 16

250000720

$1.69

Power Bar

710004772

$12.16

Copper Busbar

710006401

$12.16

Power Bar

710004873

$12.16

Circuit Breaker 50 Amp

710007039

$19.49

Hex. Flange Nut M5

250100071

$2.11

Lock Washer Helical M6

234161601

$1.15

12V Power Outlet

710005374

$33.99

Turn Signal | Europe

710001721

$209.99

Hex. Forming Screw M5 X 16

210251650

$1.15

Lock Washer 5 mm | Europe

234151401

$0.55

Flasher Decal | Europe

704902614

$19.99

Flasher Unit

710003239

$78.49

Horn

710004791

$38.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M6 X 20

207662054

$1.01

Flasher | Europe

710002964

$35.99

Torx Truss Screw M6 X 16

250000721

$1.69

Flat Washer 6 mm

234061410

$1.36

Day Light | Europe

710001726

$35.99

Cap Protector | Model-Europe

710003269

$12.11
