Description

Price

10

Squadron Green, LH Front Fender | Green Model

705012590

$309.99

20

Squadron Green, RH Front Fender | Green Model

705012591

$309.99

40

Washer

503192494

$3.17

100

Multi Purpose Support

705013766

$43.99

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Squadron Green, Front Hood

705014054

$144.99

320

Grille

705013590

$26.99

330

Clip

517306478

$1.09

395

Screw M4 X 16

250000725

$3.49

400

Deep Black, Front Fascia

705013591

$229.99

410

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$13.49

455

RH Front Reflector

704905073

$13.49

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

Deep Black, LH Rear Body Panel

705013658

$109.99

941

Black, Nylon Cap

414916600

$4.69

950

Deep Black, RH Rear Body Panel

705013659

$109.99

970

Panel Nut M6 X 1.0

250100198

$2.11

1000

LH Side Central Panel

705017552

$71.99

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Pop Rivet 3/16”

293150108

$1.19

1300

LH Rear Cage Cover Kit

715003564

$82.99

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

2100

Tuflok Plastic Rivet

293150230

$1.47

3000a

Mirror

705011497

$80.49

3000b

LH Mirror Support

705012151

$28.99

3000c

RH Mirror Support

705012152

$28.99

3000d

Plate

705010469

$16.37

3000e

Mirror Rod

705012671

$33.99

3000f

Torx Truss Screw M6 X 16

250000348

$2.11

3000g

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

3000h

Snap Ring

293370131

$1.35

3000j

Hex. Flange Screw M8 X 35

207683544

$1.69

3000k

Hex. Flange Elastic Nut M8

233281414

$1.47

3000m

Torx Screw M6 X 25

250000758

$2.11

3000n

Hex. Flange Elastic Nut M6

233261494

$1.58

3000p

Flat Washer

250200178

$2.11

5400

LH Rear Deflector

705016336

$51.99

5450

RH Rear Deflector

705016337

$51.99

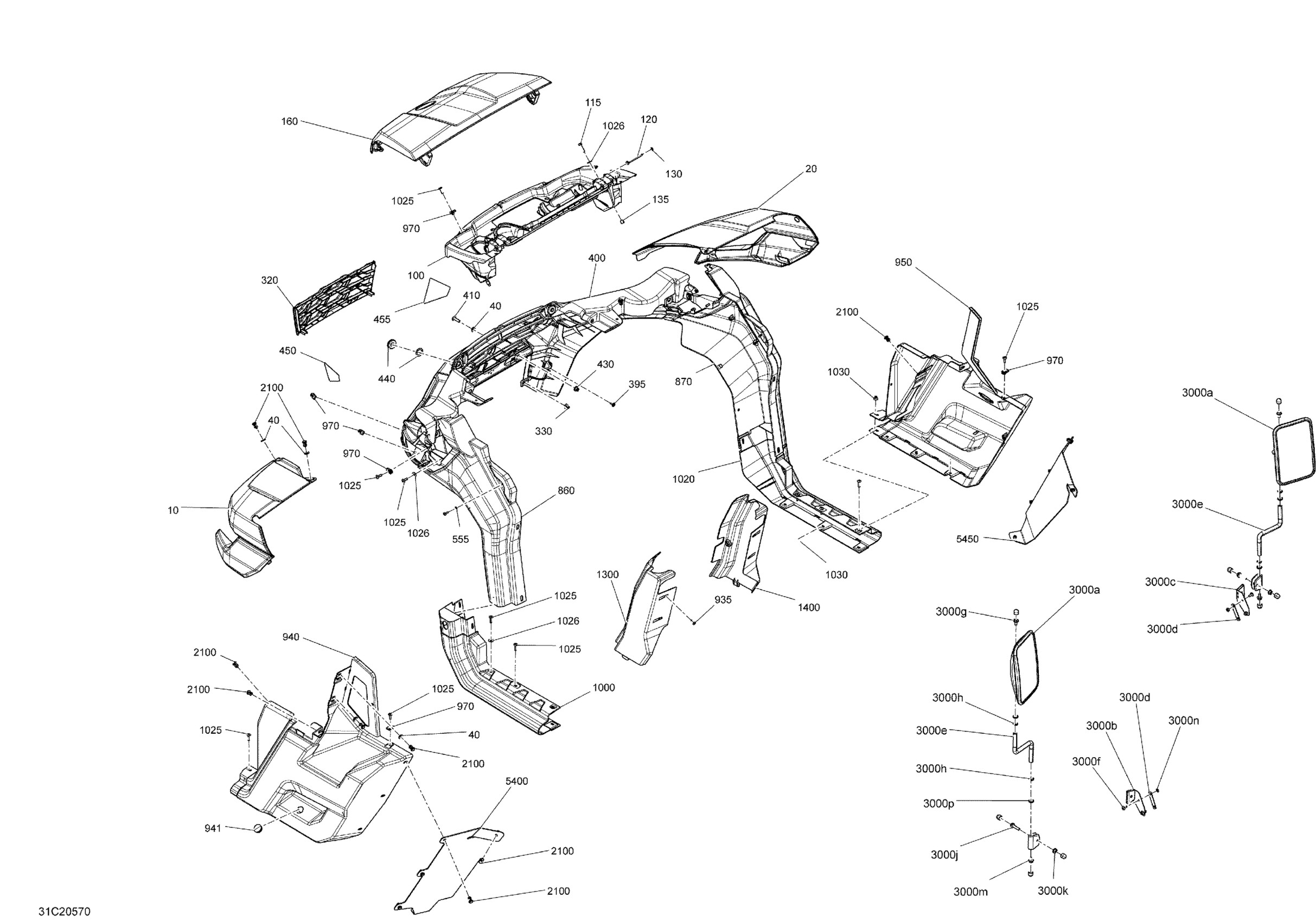

Can-Am 002 - Traxter T HD8 - T Regulation, 2020 09- Body - BASE Diagram

Squadron Green, LH Front Fender | Green Model

Squadron Green, RH Front Fender | Green Model

Washer

Multi Purpose Support

Hex. Flange Screw M6 X 30 | International

Hex. Flange Screw M6 X 75

Push Nut

Bushing

Squadron Green, Front Hood

Grille

Clip

Screw M4 X 16

Deep Black, Front Fascia

Torx Screw M8 X 30

Hex. Flange Elastic Nut M8

Grommet

LH Front Reflector

RH Front Reflector

Flat Washer M5

LH Front Lateral Panel

RH Front Lateral Panel

Torx Screw K50 X 16

Deep Black, LH Rear Body Panel

Black, Nylon Cap

Deep Black, RH Rear Body Panel

Panel Nut M6 X 1.0

LH Side Central Panel

Deep Black, RH Central Panel

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Pop Rivet 3/16”

LH Rear Cage Cover Kit

RH Rear Cage Cover Kit | Includes 1160 to 1160a

Tuflok Plastic Rivet

Mirror

LH Mirror Support

RH Mirror Support

Plate

Mirror Rod

Torx Truss Screw M6 X 16

Hex. Flange Screw M8 X 16, Scotch Grip

Snap Ring

Hex. Flange Screw M8 X 35

Hex. Flange Elastic Nut M8

Torx Screw M6 X 25

Hex. Flange Elastic Nut M6

Flat Washer

LH Rear Deflector

RH Rear Deflector
