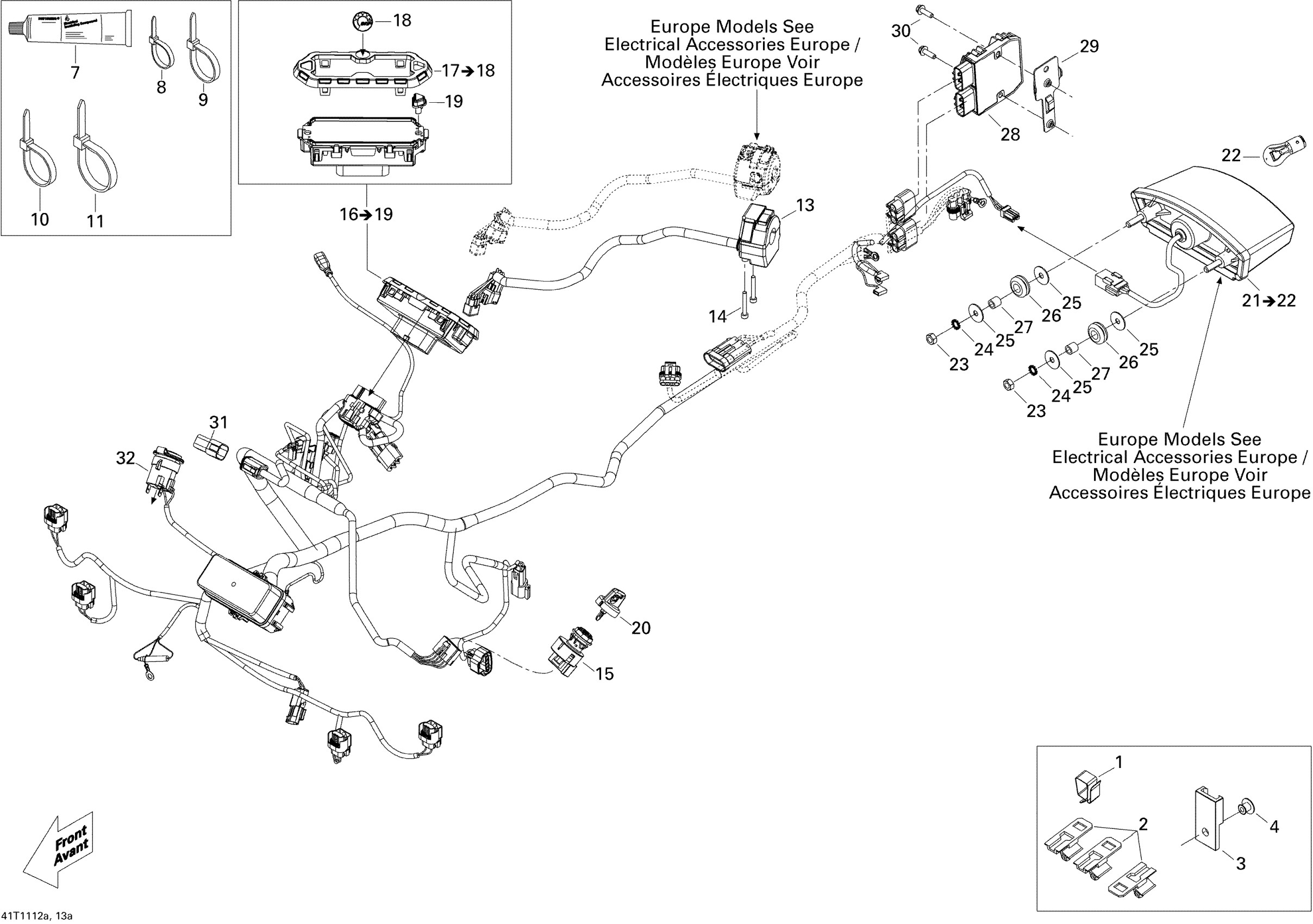

Can-Am Renegade 500 EFI, 2011 10- Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

Tie Wrap 94 mm | 4X4

293750001

$1.03

9

Tie-Rap 173 mm

293750009

$1.04

10

Tie-Rap 180 mm

414115200

$0.11

11

Tie Wrap 368 mm

293750008

$1.04

13

Multi-Fonction Handle

710000791

$116.49

13

Multi-Function Handle

710004040

$179.99

14

Socket Head Screw M5 X 35

205053588

$1.90

15

Ignition Switch | Includes 16 to 17

710002324

$79.49

16

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

17

Trim Ring Ass'y

710001183

$19.99

18

BRP Logo13 mm

704904615

$13.49

19

Button

710001473

$13.71

20

Black, Electronic Key

710000817

$63.49

21

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$56.99

21

Tail Light Ass'y | Includes 19 to 20

710001041

$62.49

22

Bulb

520000758

$9.10

23

Hex. Nut M6

232061600

$1.15

24

External Serrated Lock Washer 6 mm

234461608

$1.15

25

Flat Washer

224060201

$1.26

26

Grommet

709000582

$4.69

27

Bushing

293900105

$7.65

28

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

29

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

30

Hexagonal Head Screw

210262050

$2.11

31

Diagnostic Connector

278002704

$19.49

32

DC Outlet

710001248

$37.99
