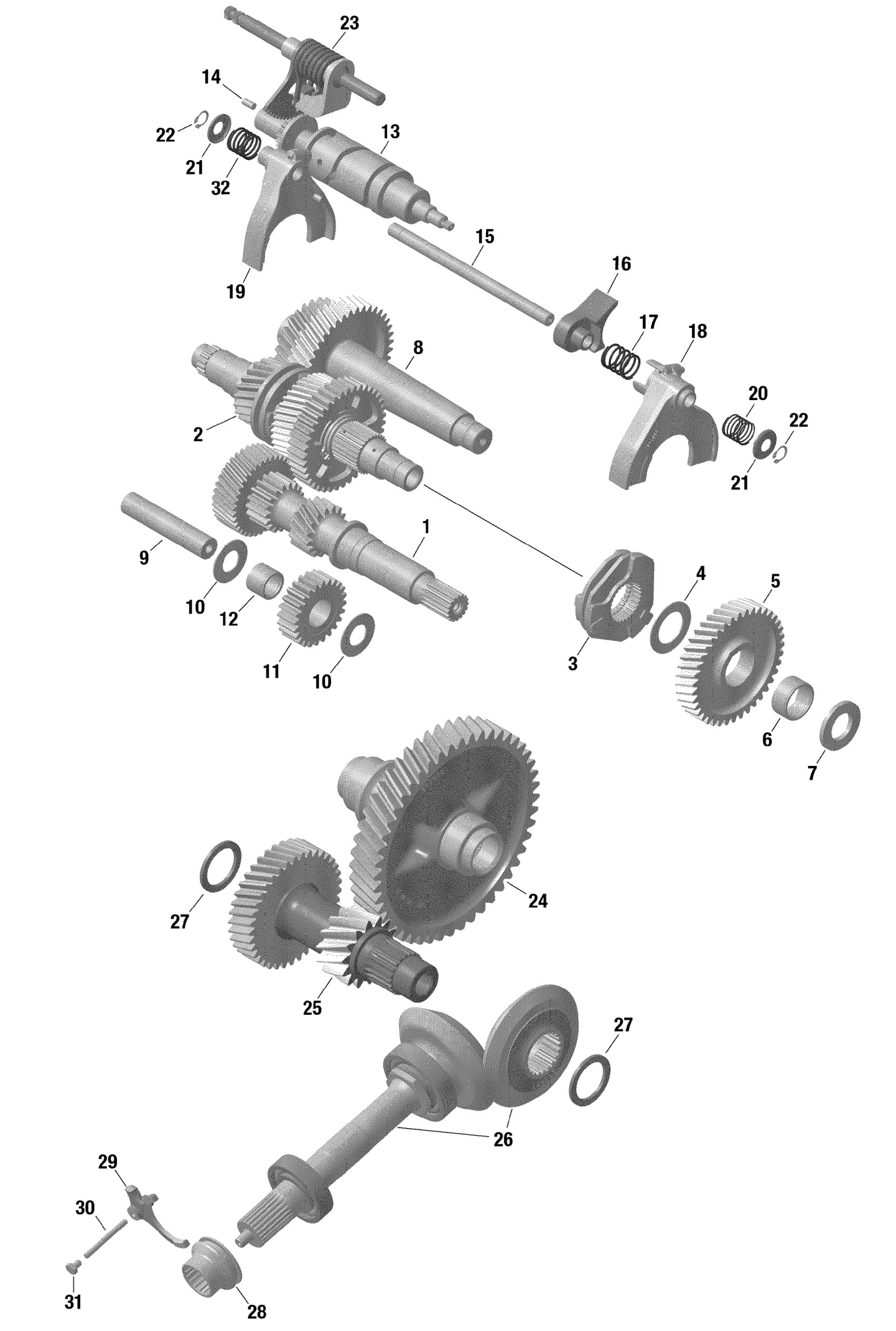

Can-Am 005 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - International, 2020 05- Gear Box 2 Diagram

#

Description
Price

1

Counter Shaft

420637506

$370.49

2>6

Main Shaft | Includes no. 2-6

420637778

$919.99

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Thrust Washer

420427082

$20.99

8

Intermediate Shaft

420637546

$360.49

9>12

Intermediate Gear Ass'y | Includes no. 9-12

420435875

$99.49

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13>14

Shifting Drum | Models Built Sept 2016 And Up

420657546

$309.99

14

Needle Pin

420932780

$7.41

15

Fork Spindle

420657432

$38.99

16

Shifting Block

420657476

$25.99

17

Spring

420638077

$2.68

18

Shift Fork Ass'y

420257001

$36.99

19

Gearshift Fork Ass'y

420657559

$164.99

20

Spring

420638072

$2.68

21

Spring Seat

420427140

$2.59

22

Retaining Ring

420945470

$5.50

23

Shift Shaft With Gear

420637569

$119.99

24

Drive Gear 48T

420934080

$349.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Shifting Sleeve

420257674

$129.99

29

Shifting Fork

420257606

$48.99

30

Needle Pin

420832650

$7.73

31

Hex Screw M6 X 8

420841581

$1.15

32

Spring

420638075

$3.98
