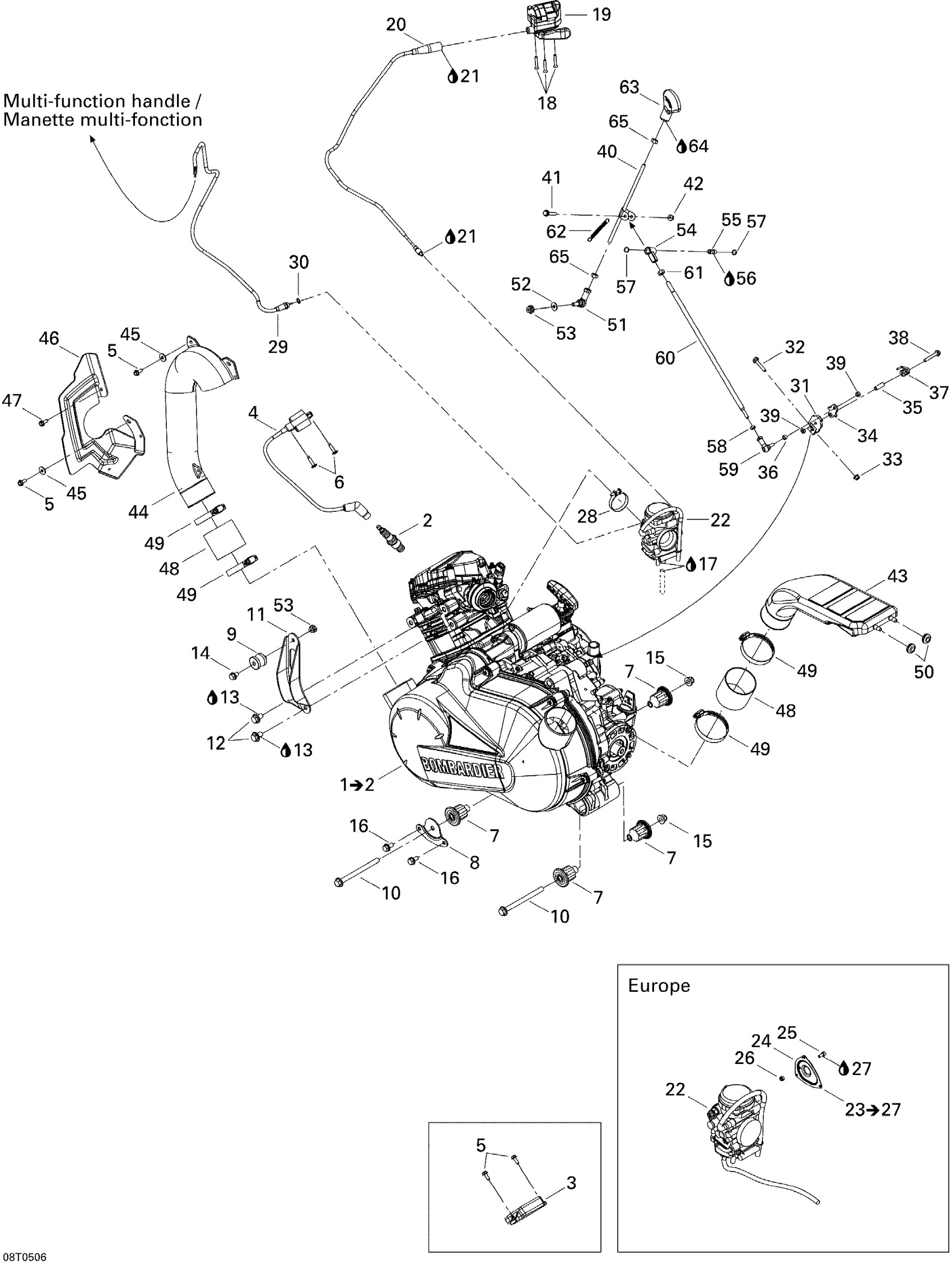

Can-Am Outlander MAX 400, 2005 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine Rotax 4 Strokes | 400HO / Includes 1 to 2

707000376

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$6.35

3

AMPLIFIER BOX - Call your local BRP dealership | 400HO

420664285

Unavailable

4

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.67

6

Hexagonal Head Screw

210262050

$2.11

7

Anti-Vibration Mount

707000218

Unavailable

8

LH FRONT ENGINE BRACKET - Call your local BRP dealership

707000220

Unavailable

9

Rubber Isolator

707000949

$11.49

10

Hex. Flange Screw M10 X 125

230602546

$7.41

11

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

Unavailable

12

Hex. Flange Screw M10 X 25

207602544

$1.69

13

Loctite 243, 10 ml

293800060

$21.49

14

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

17

Glue Tube, Loctite 454, 20 G

413708300

$60.99

18

Socket Head Screw M5 X 25

205052588

$1.90

19

Throttle Handle | 4X4

707000595

$214.99

19

THROTTLE HANDLE - Call your local BRP dealership | 2X4

707000370

Unavailable

20

THROTTLE CABLE - Call your local BRP dealership

707000226

Unavailable

21

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

22

Carburator CE, Mikuni BSR33-67 | 400HO (Europe)

707000402

Unavailable

22

Carburator, Mikuni BSR33-49 | 400HO

707200190

Unavailable

23

Calibrated Cover Ass'y | 400HO (Europe) / Includes 23 to 27

707000406

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.15

26

Elastic Stop Nut M4

232541414

$0.58

27

Sealant Loctite 648

219703000

$45.99

28

GEMI CLAMP - Call your local BRP dealership

293650164

Unavailable

29

CHOKE CABLE - Call your local BRP dealership

707000228

$38.99

30

O-RING - Call your local BRP dealership

293300075

Unavailable

31

Lever

707000503

$38.49

32

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Pivot Plate

707000507

$9.23

35

Bushing

293900079

$8.89

36

Bushing | DS 650 X

293900104

$5.50

37

Spring

707000310

$10.43

38

Hex. Flange Screw M6 X 40

207664044

$2.22

39

Elastic Stop Nut M6

232561414

$0.55

40

Lever Arm

707000786

$38.99

41

Hex. Flange Screw M6 X 40

207664044

$2.22

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

43

AIR OUTLET - Call your local BRP dealership

707000361

Unavailable

44

Air Intake

707000261

Unavailable

45

Flat Washer

250200082

$0.42

46

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

Unavailable

47

Tuflock Phillips Plastic Screw

414745900

$1.69

48

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

49

Tridon Clamp

293650064

$8.29

50

Grommet

709000582

$4.69

51

RH Ball Joint

707001959

$36.99

52

Flat Washer 8 mm

234081410

$0.83

53

Hex. Elastic Stop Nut M8

232581414

$0.56

54

PIVOT - Call your local BRP dealership

707000568

Unavailable

55

Bushing

293900075

$11.99

56

Synthetic Grease, 400 G

293550010

Unavailable

57

O-RING - Call your local BRP dealership

414583300

Unavailable

58

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

59

LH BALL JOINT - Call your local BRP dealership

707000545

$45.99

60

Threaded Rod

707000567

$30.99

61

Hex. Nut M8

232081414

$0.72

62

Spring

707000569

$9.69

63

Lever Handle

707000284

$19.99

64

Loctite 243, 10 ml

293800060

$21.49

65

Hex. Nut M8

232081414

$0.72
