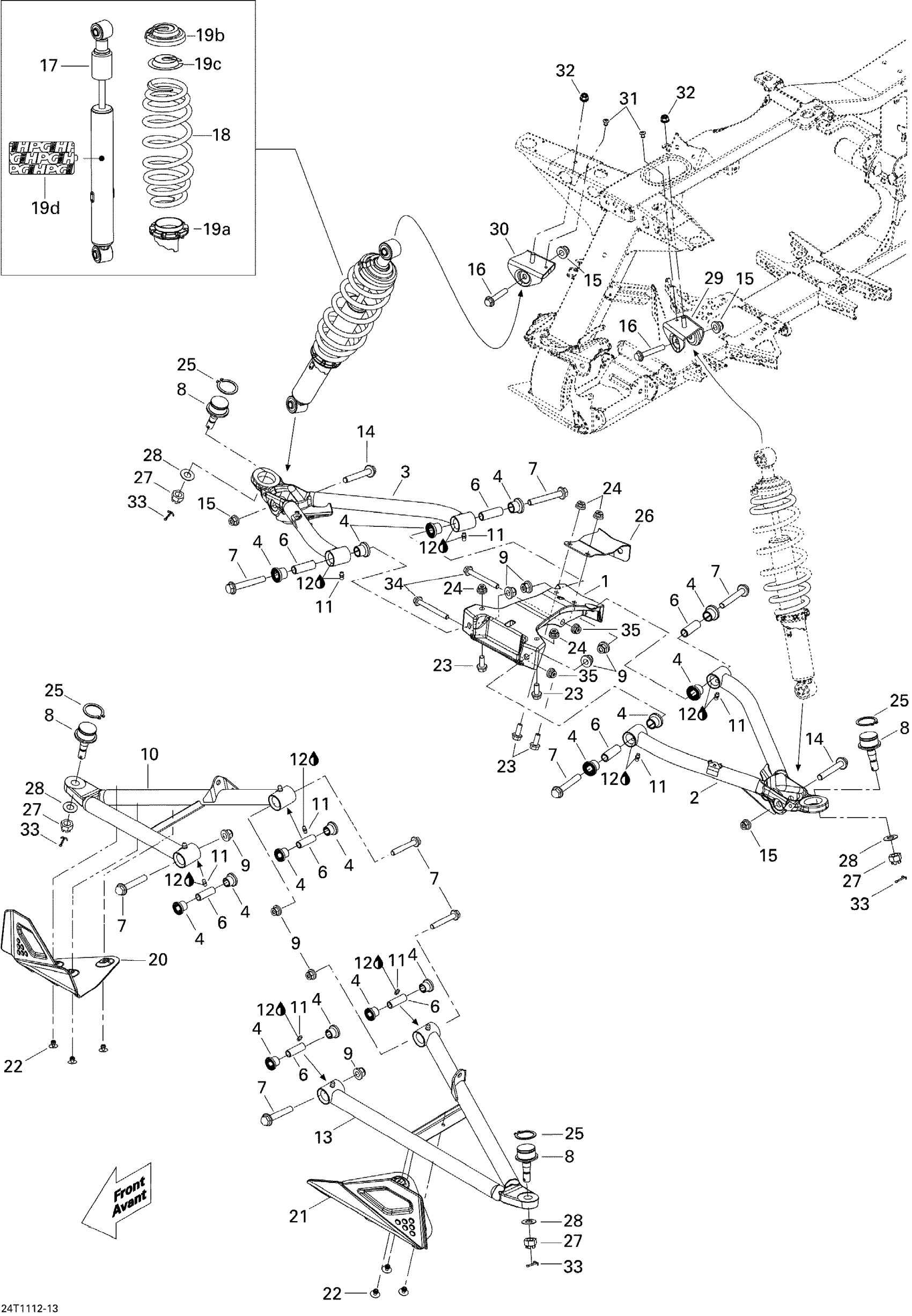

Can-Am Renegade 500 EFI, 2011 07- Front Suspension Diagram

Upper Arm Bracket

706201360

$158.99

LH PAINT UPPER ARM - Call your local BRP dealership

706201209

Unavailable

RH PAINT UPPER ARM - Call your local BRP dealership

706201212

Unavailable

Bushing

706200181

$3.14

Sleeve

706201587

$3.79

Hex. Flange Screw M10 X 70

207607046

$2.96

Ball Joint

706200653

$44.99

Hex. Flange Elastic Nut M10

233201436

$2.11

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

Grease Fitting

408200700

$3.49

Synthetic Grease, 400 G

293550010

Unavailable

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

Hex. Flange Screw M10 X 65

207606536

$4.44

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 55

207605544

$3.38

Front Shock | 500 EFI

706201146

Unavailable

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Yellow

706200829

Unavailable

Full Moon Spring | White Models

706201218

Unavailable

Adjuster Ring

706002356

$18.49

Spring Stopper

706200881

$12.99

Cap

706200785

$4.69

Not Available As Spare Parts

XXX

Unavailable

RH Protector

706201670

$17.54

LH Protector

706201669

$17.54

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Circlip 32 mm

293370009

$1.39

BRACKET - Call your local BRP dealership

706201014

Unavailable

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

RH UPPER ARM BRACKET - Call your local BRP dealership

706201040

Unavailable

Pop Rivet 3/16"

390402300

$0.75

Hex. Elastic Flange Nut M8

233281416

$1.48

Cotter Pin

211400017

$0.33

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47
