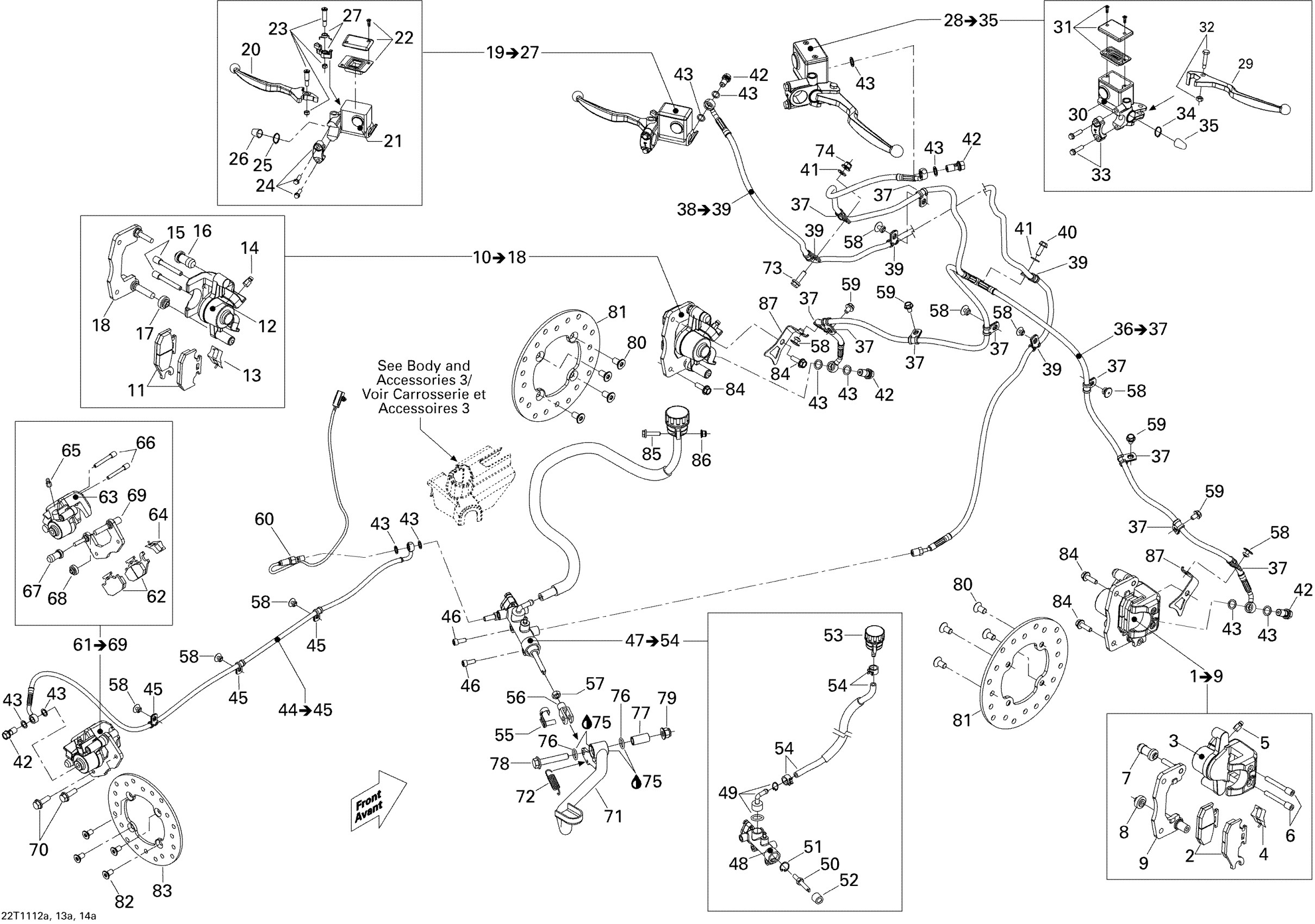

Can-Am Renegade 500 EFI, 2011 06- Brakes Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600593

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600594

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Not Available As Spare Part - Friction Washer

Unavailable

19

LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9

705600845

Unavailable

20

Lever Arm

705600243

$54.99

22

Cap Set

705600084

$24.99

23

Brake Lever Bolt Kit

705600246

$14.81

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 27 to 35

705600956

Unavailable

29

LEVER ARM - Call your local BRP dealership

705600629

Unavailable

30

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

31

Cap Set

705600084

$24.99

32

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

33

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

34

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

35

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

36

FRONT HOSE - Call your local BRP dealership | Includes 28 to 29

705600597

Unavailable

37

Clamp

293650256

$5.49

38

FRONT HOSE - Call your local BRP dealership | Includes 10 to 11

705600598

$94.14

39

Clamp

293650256

$5.49

40

Hex. Flange Screw M6 X 16

210261650

$1.67

41

Flat Washer

224061121

$0.53

42

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

43

Copper Washer

705601628

$4.44

44

Rear Hose | Includes 34 to 35

705600929

$90.99

45

Clamp

293650256

$5.49

46

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

47

Master Cylinder | Includes 36 to 44, STD Model

705600751

$229.99

48

Piston Set

705600255

$64.49

49

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Circlip

705600068

Unavailable

52

Compression Boot

705600090

Unavailable

53

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

54

OIL HOUSING HOSE - Call your local BRP dealership

705600754

Unavailable

55

Pin Kit

219702305

$34.99

56

Yoke

705600100

Unavailable

57

Hex. Nut M8

232081414

$0.72

58

Pop Rivet 3/16”

390910000

$0.57

59

Hex. Flange Screw M6 X 10

210261040

$1.48

60

Brake Switch

705600798

$51.99

61

Rear Caliper | Includes 39 To 47

705600599

$301.99

62

Brake Pad Kit

705600014

$51.99

63

Piston Set

705600078

$38.99

64

Spring

705600079

$15.81

65

Bleeding Screw

705600080

$16.87

66

Pin Set (2)

705600081

$20.49

67

Compression Boot

705600082

$10.06

68

Compression Boot

705600083

$10.06

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

71

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

72

Brake Pedal Spring

705600792

$9.10

73

Hex. Flange Screw M6 X 20

207662044

$2.00

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

75

Synthetic Grease, 400 G

293550010

Unavailable

76

O-Ring

293300144

$3.82

77

Inner Spacer

705600815

$11.60

78

Hex. Flange Screw M10 X 55

207605544

$3.38

79

Hex. Flange Elastic Nut M10

233201414

$1.58

80

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

81

Disk Brake

705600604

$50.99

82

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

83

Disk Brake

705600604

$50.99

84

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

85

Hex. Flange Screw M6 X 25

207662544

$0.64

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

87

BRACKET - Call your local BRP dealership

705600795

Unavailable
