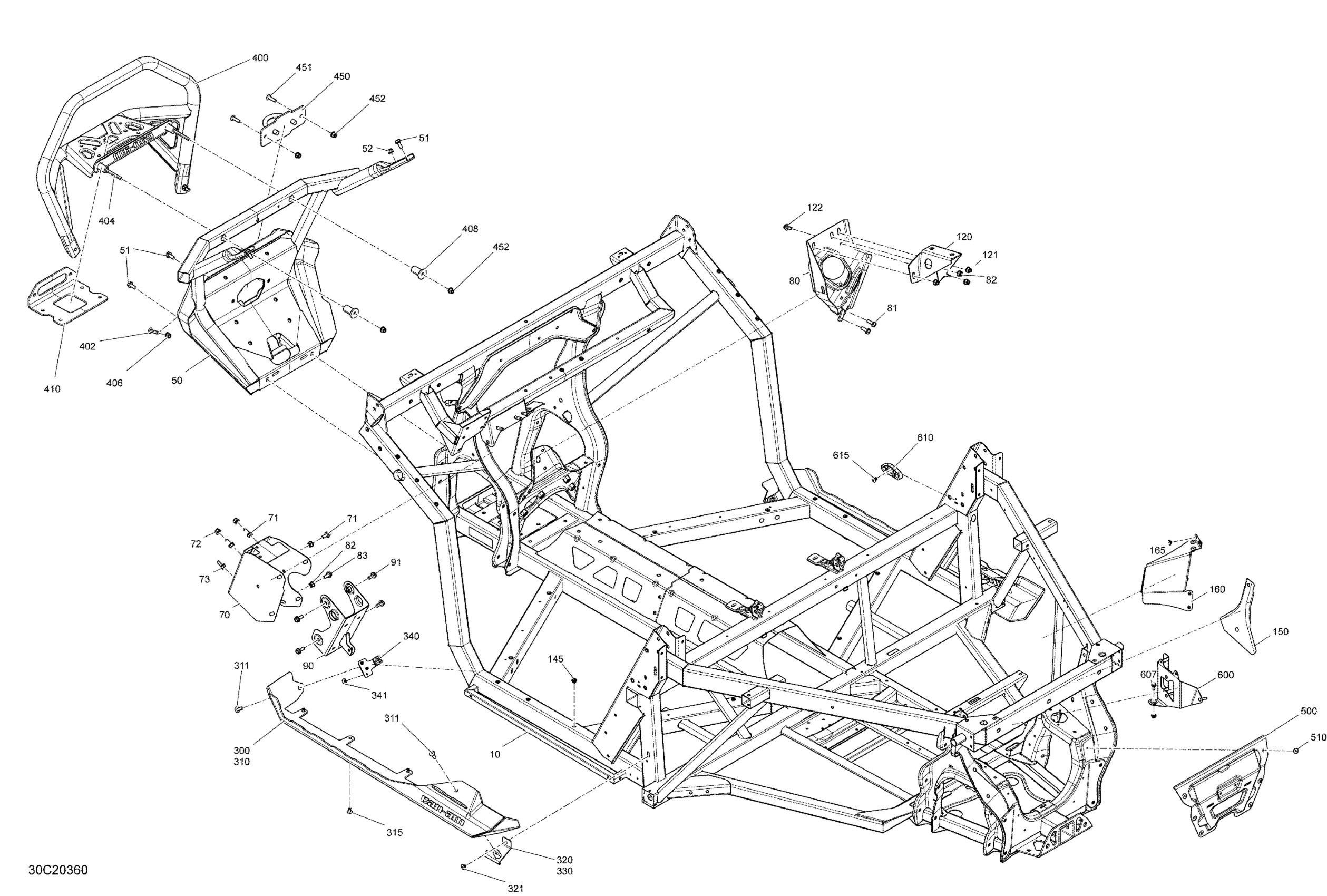

Can-Am 003 - Traxter HD10 - XMR - International, 2020 09- Frame Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009075

$3,159.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Module Support

705208747

$55.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Flange Elastic Nut M8

233281414

$1.47

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Flange Elastic Nut M8

233281414

$1.47

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

120

Support

705208742

$30.99

121

Hex. Flange Elastic Nut M8

233281414

$1.47

122

Hex. Flange Screw M8 X 20

207682044

$1.15

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002717

$51.99

165

Pop Rivet 3/16”

293150092

$3.09

300

Manta Green, LH Guard Panel | Manta Green

705208694

$276.49

310

Manta Green, RH Guard Panel | Manta Green

705208695

$276.49

311

Torx Truss M8 X 25

250000874

$2.11

315

Pop Rivet 3/16”

293150108

$1.19

320

LH Rock Slider Support

705206342

$45.99

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

RH Rock Slider Support

705206343

$45.99

340

Front Guard Support

705208661

$5.39

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

400

XMR FRONT BUMPER - Call your local BRP dealership | Model Manta Green

715006144

Unavailable

402

Torx Screw M8 X 30

250000886

$2.11

404

Torx Truss M/S M8 x X 100

250001106

$7.97

406

Hex. Flange Elastic Nut M8

233281414

$1.47

408

Spacer

705207754

$14.49

410

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

450

Can-Am Red, Front Tow Hook

705211623

$33.99

451

Torx Screw M8 X 30

250000886

$2.11

452

Hex. Flange Elastic Nut M8

233281414

$1.47

500

Rear Chassis Reinforcement

705207753

$33.99

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

Voltage Regulator Support | Base

710006644

$18.99

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
