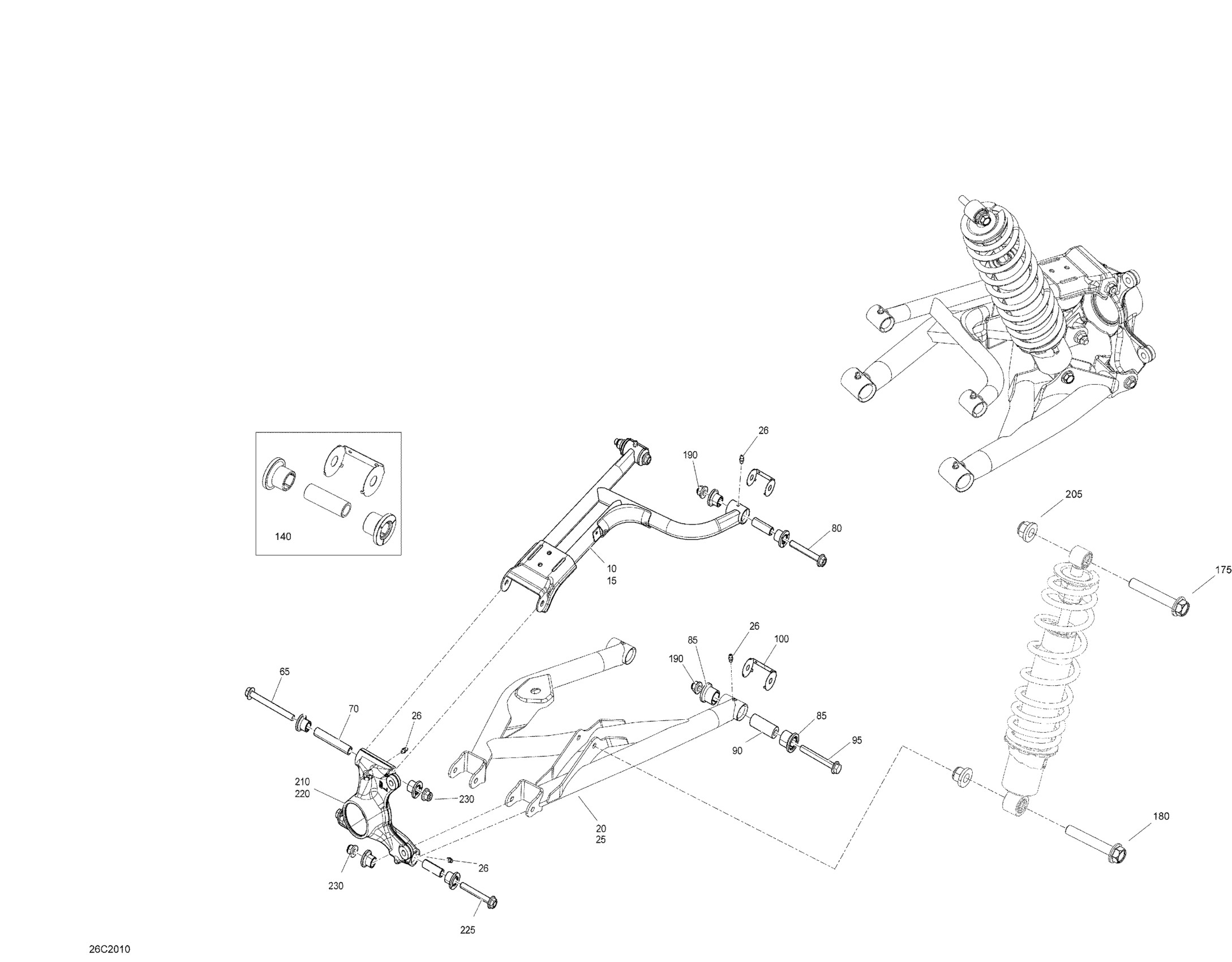

Can-Am 003 - Traxter HD10 - XMR - International, 2020 08- Suspension, Rear Diagram

#

Description
Price

10

Manta Green, LH Upper Suspension Arm

706003867

$201.49

10

Deep Black, LH Upper Rear Suspension Arm

706004312

$201.49

15

Manta Green, RH Upper Suspension Arm

706003868

$201.49

15

Deep Black, RH Upper Rear Suspension Arm

706004313

$201.49

20

Manta Green, LH Lower Suspension Arm

706003870

$201.49

20

Deep Black, LH Lower Suspension Arm

706004577

$201.49

25

SUSPENSION ARM INT R B-357 MANTA GREEN - Call your local BRP dealership

706003871

Unavailable

25

Deep Black, RH Lower Suspension Arm

706004578

$201.49

26

Grease Fitting

408200700

$3.49

65

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

70

Upper Bushing

706202197

$15.82

80

Hex. Flange Screw M10 X 70

207607046

$2.96

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

95

Hex Flange Screw M10 X 80

207608046

$6.69

100

Wear Plate

706201660

$0.95

140

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

175

Hex. Flange Screw M10 X 6

207606046

$4.12

180

Hex. Flange Screw M10 X 6

207606046

$4.12

190

Hex. Flange Elastic Nut M10

233201436

$2.11

205

Hex. Flange Elastic Nut M10

233201436

$2.11

210

Rear Left Machined Knuckle

706002809

$206.49

220

Rear Right Machined Knuckle

706002811

$206.49

225

Hex. Flange Screw M10 X 70

207607046

$2.96

230

Hex. Flange Elastic Nut M10

233201436

$2.11
