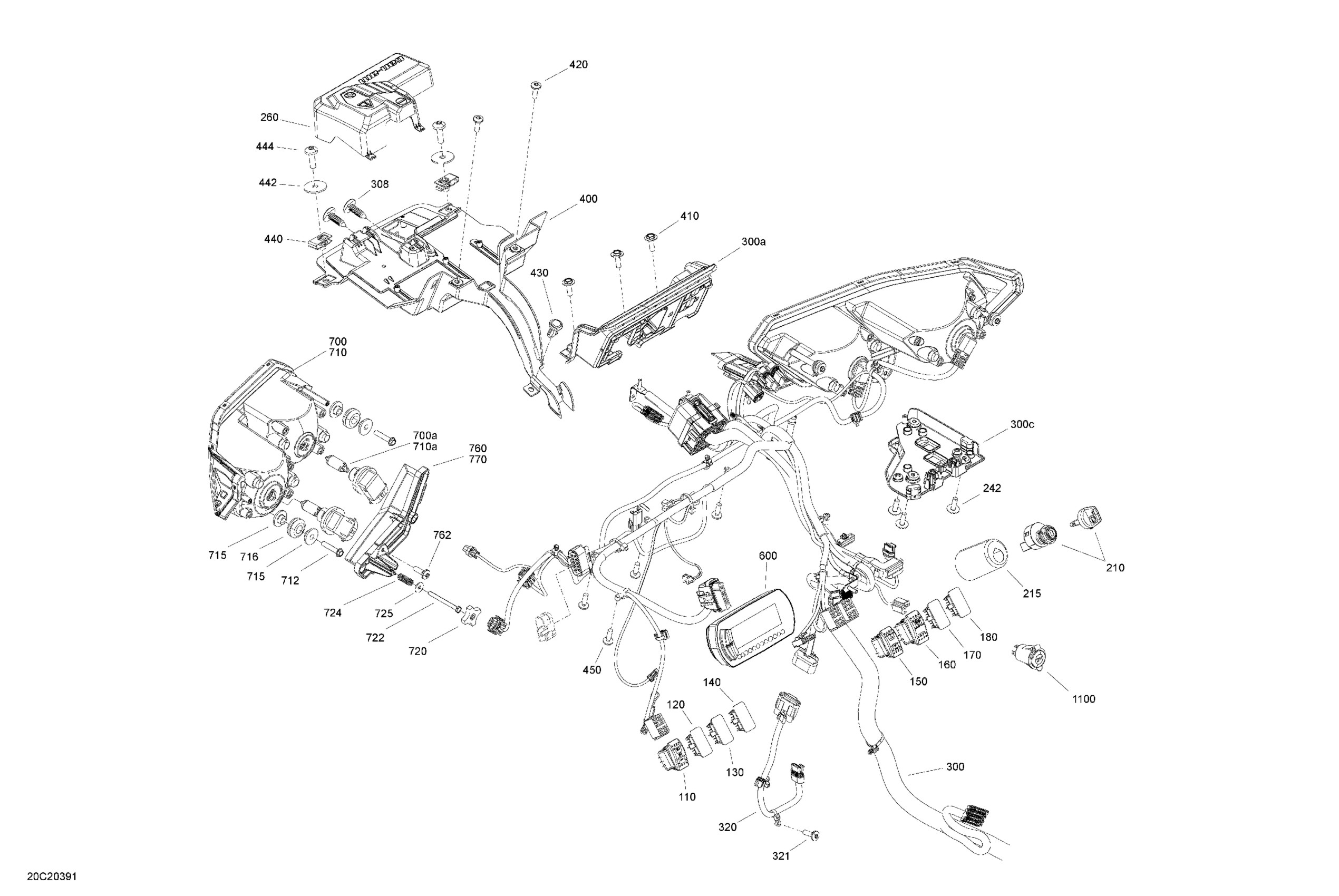

Can-Am 001 - Traxter HD8 - International, 2020 10- Electric - System - Front Section Diagram

Light Switch

710004492

$47.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch 2X4

710005489

$31.99

Differential Lock Switch

710005470

$46.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Inter Allumage *Ignition

710007870

$55.99

Key Switch Protector

710005739

$2.69

Screw PT Type K-50 X 16

250000959

$2.11

Junction Block Cover

710006707

$6.35

Main Wiring Harness | Includes 300 to 300c

710006376

$929.99

Fusebox Support

710006640

$8.81

Connector Support

710006706

$6.49

Black, Dart

293730006

$0.99

Throttle Pedal Harness

710006837

$239.99

Torx Screw K50 X 16

250000720

$1.69

Wiring Harness Support

710006649

$24.49

Screw PT Type K-50 X 16

250000959

$2.11

Torx Screw K50 X 16

250000720

$1.69

Tuflok Plastic Rivet

293150230

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

Washer M6

250200029

$2.50

Torx Screw M6 X 20

250000712

$2.11

Torx Screw K50 X 16

250000720

$1.69

Compact Multifonction Gauge | Package DPS

710006739

$419.99

LH Beam | Includes 700 to 700a

710008316

$199.99

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

RH Beam | Includes 710 to 710a

710008317

$199.99

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Flat Washer 4 mm, Stainless

234042600

$1.15

Deep Black, LH Front Headlight Trim

705013593

$20.99

Torx Screw K50 X 16

250000720

$1.69

Deep Black, RH Front Headlight Trim

705013595

$20.99

12V Power Outlet

710005374

$33.99
