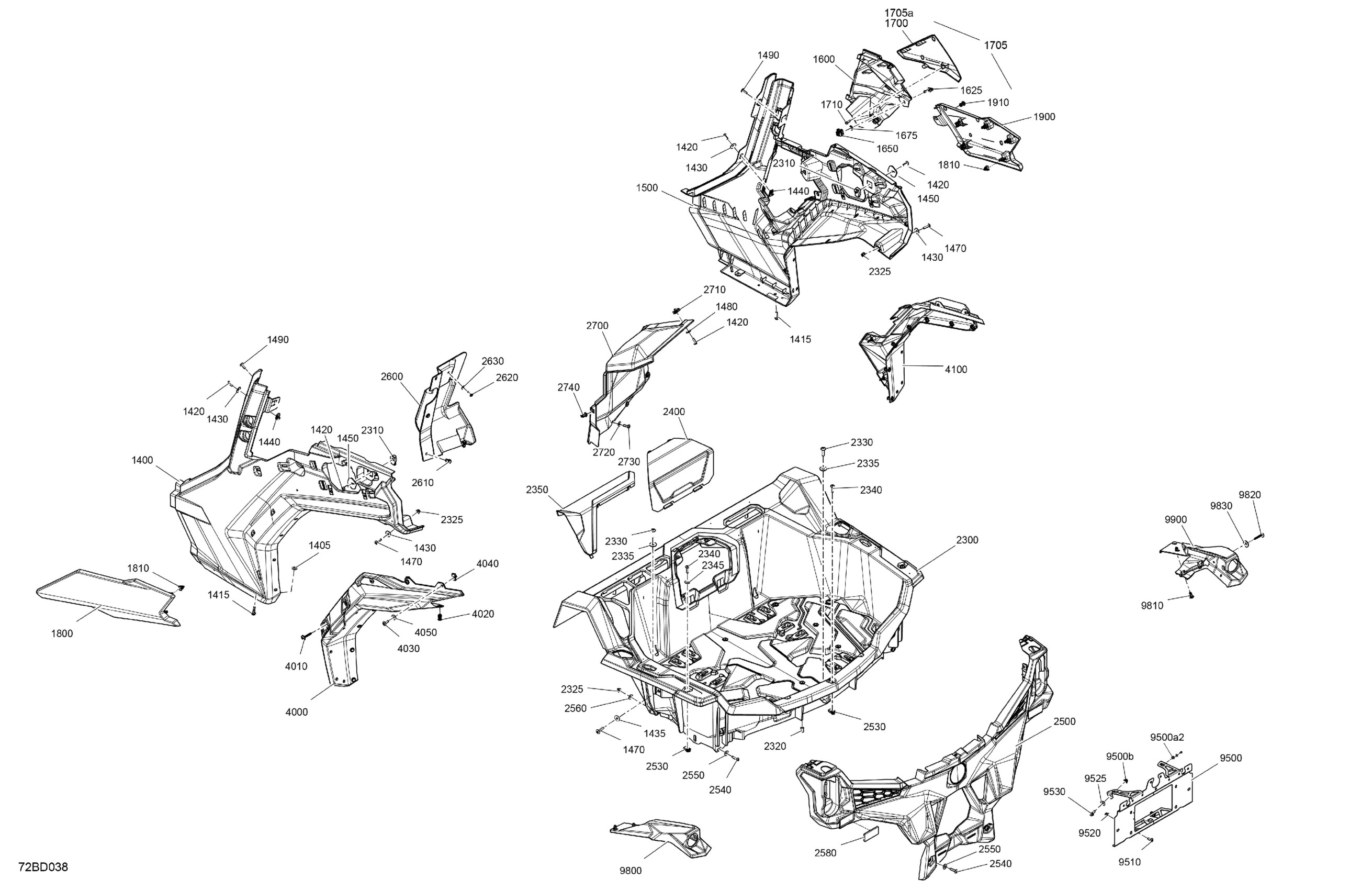

Can-Am CE - Maverick Trail 700 - BASE - 7RRC - Catalyst Gray - 50" Width, 2024 07- Body - Rear Section Diagram

#

Description
Price

1400

LH Rear Panel

705011335

$204.99

1405

Washer

503192494

$3.17

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1435

Stainless Steel Flat Washer

234062670

$2.11

1440

Panel Nut M6 X 1.0

250100198

$2.11

1450

Support Plate

705003841

$0.99

1470

Torx Truss Screw M6 X 25

250000807

$2.11

1480

Stainless Steel Flat Washer

234062670

$2.11

1490

Black, Dart

414644300

$0.98

1500

RH Rear Panel

705011336

$204.99

1600

Air Filter Acces Door

705011338

$75.99

1625

Quarter Turn

708400278

$4.29

1650

Clip

708400285

$3.99

1675

Washer

708400286

$3.99

1700

Catalyst Gray, Access Panel Trim

705017755

$55.99

1705

Access Door Trim Kit | Includes 1705 to 1705a

715009122

$119.99

1705a

Timeless Black, Acces Panel Trim

705015587

$109.99

1710

Torx Screw K50 X 16

250000720

$1.69

1800

Catalyst Gray, LH Open Carrier Trim

705017754

$109.99

1810

Clip

517306478

$1.09

1900

Catalyst Gray, RH Open Carrier Trim

705017756

$109.99

1910

Tuflok Plastic Rivet

293150230

$1.47

2300

Rear Box

705016885

$399.99

2310

Panel Nut M6 X 1.0

250100224

$2.11

2320

Hex. Coupling Nut M6

250100207

$2.00

2325

Hex. Elastic Flange Nut M6

233161464

$1.01

2330

Hex Torx Truss M8 X30

250000745

$3.17

2335

Stainless Steel Flat Washer

234082670

$2.11

2340

Torx Truss Screw M6 X 25

250000807

$2.11

2345

Stainless Steel Flat Washer

234062670

$2.11

2350

CVT Air Inlet Cover

705011339

$18.99

2400

Acces Cover Ass'y

715006798

$38.99

2500

Rear Fascia

705016944

$159.99

2530

Panel Nut M6 X 1.0

250100198

$2.11

2540

Torx Truss Screw M6 X 25

250000807

$2.11

2550

Stainless Steel Flat Washer

234062670

$2.11

2560

Stainless Steel Flat Washer

234062670

$2.11

2580

Red Reflector

520001820

$20.99

2600

LH Rear Wheel Arch Protector

705015886

$45.49

2610

Tuflok Plastic Rivet

293150230

$1.47

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Wheel Arch Protector

705016135

$45.49

2710

Panel Nut M6 X 1.0

250100198

$2.11

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Torx Truss Screw M6 X 25

250000807

$2.11

2740

Tuflok Plastic Rivet

293150230

$1.47

4000

LH Rear Mud Guard

705019030

$56.99

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4020

Tuflok Plastic Rivet

293150230

$1.47

4030

Torx Screw M6 X 20

250000722

$1.68

4040

Panel Nut M6 X 1.0

250100198

$2.11

4050

Stainless Steel Flat Washer

234062670

$2.11

4100

RH Rear Mud Guard

705019031

$56.99

9500

License Plate Support Ass'y | Includes 9500 to 9500b

705018376

$119.99

9500a2

Threaded Insert M6 X 1.0

250100242

Unavailable

9500b

Threaded Insert M6 X 1.0

250100242

Unavailable

9510

Torx Truss Screw M6 X 16

250000721

$1.69

9520

Hex. Flange Elastic Nut M6

233261466

$2.00

9525

Stainless Steel Flat Washer

234062670

$2.11

9530

Hex. Flange Screw M6 X 16

207661654

$2.11

9800

LH Rear Flasher Support Model T

705012799

$58.49

9810

Tuflok Plastic Rivet

293150230

$1.47

9820

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

9830

Stainless Steel Flat Washer

234082670

$2.11

9900

RH Rear Flasher Support Model T

705012800

$30.49
