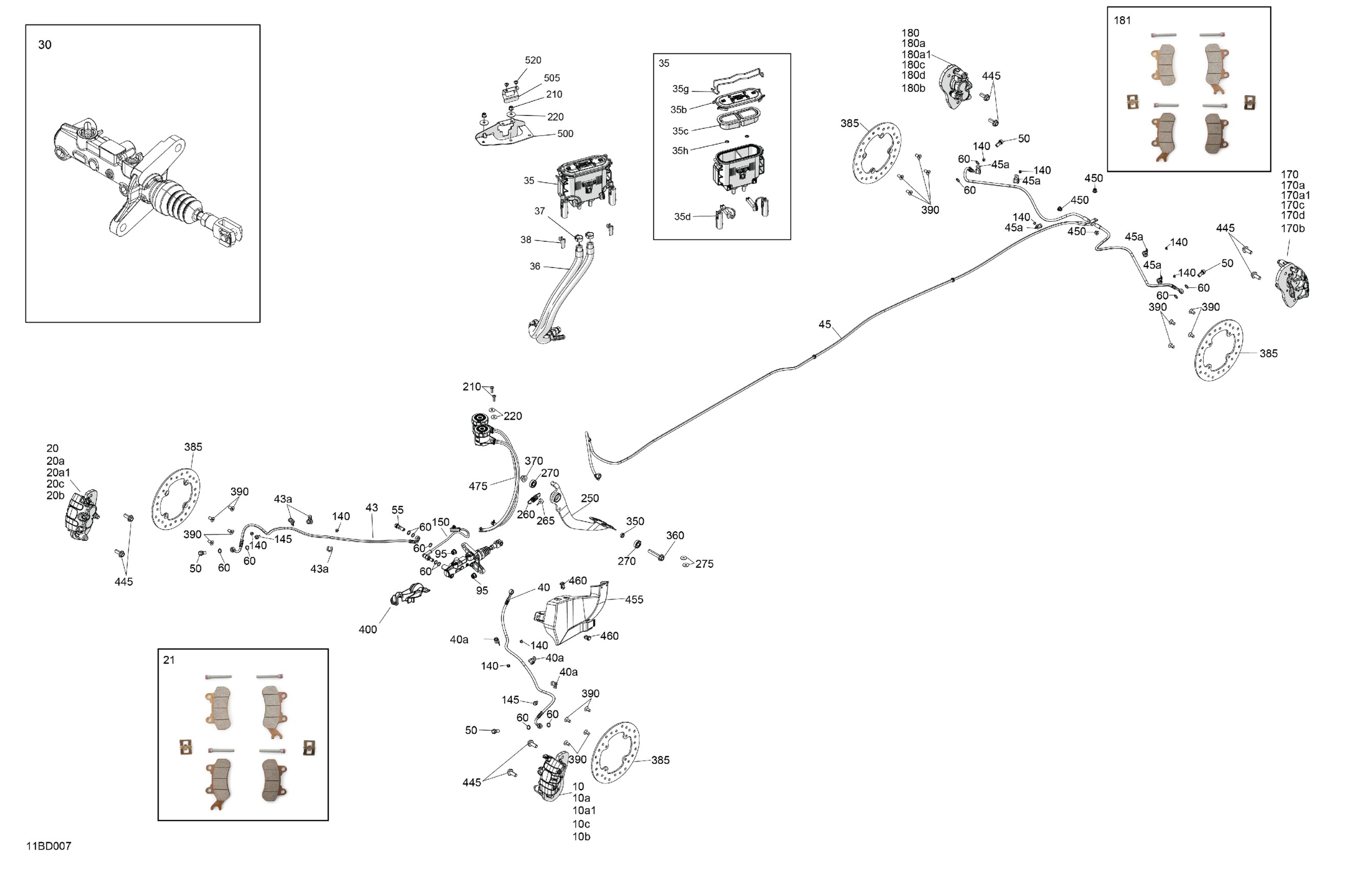

Can-Am CE - Maverick Trail 700 - BASE - 7RRC - Catalyst Gray - 50" Width, 2024 03- Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$360.49

10a

LH Brake Pads

715900379

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10b

Bleeding Screw

705601017

$6.35

10c

Cap Spring Kit

715900385

$17.59

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$370.99

20a

RH Brake Pads

715900380

$79.49

20a1

Pin Kit | Packages STD & PRO

715900384

$12.12

20b

Bleeding Screw

705601017

$6.35

20c

Cap Spring Kit

715900385

$17.59

21

Front Brake Pad Set

703501198

$116.49

30

Master Cylinder

705602156

$379.99

35

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

35b

Diaphragm Cover Ass'y

219800350

$17.59

35c

Diaphragm Cover Ass'y

219800350

$17.59

35d

Oil Level Sensor

705601073

$54.99

35g

Spindle Lock

705601294

$15.81

35h

Push Nut | Not shown

211100002

$2.19

36

Hose

705601801

$10.49

37

Oetiker Clamp

293650046

$2.89

38

Clip

710001343

$9.09

40

LH Front Caliper Hose | Includes 40 to 40a

705601852

$79.49

40a

Clamp

293650256

$5.49

43

RH Front Caliper Hose | Includes 43 to 43a

705601853

$86.99

43a

Clamp

293650256

$5.49

45

Rear Caliper Hose | Includes 45 to 45a

705601956

$158.99

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Double Banjo Bolt

705601723

$7.90

60

Copper Washer

705601628

$4.44

95

Hex. Elastic Flange Nut M8

233281416

$1.48

140

Pop Rivet 3/16 X ,425

293150293

$0.35

145

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601250

$59.49

170

LH Rear Brake Caliper | Includes 170 to 170d

705602184

$264.99

170a

LH Brake Pads

715900386

$79.49

170a1

Pin Kit | Packages STD & PRO

715900384

$12.12

170b

Pin Kit | Packages STD & PRO

715900384

$12.12

170c

Bleeding Screw

705601017

$6.35

170d

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | Includes 180 to 180d

705602185

$328.49

180a

RH Brake Pads

715900387

$79.49

180a1

Pin Kit | Packages STD & PRO

715900384

$12.12

180b

Pin Kit | Packages STD & PRO

715900384

$12.12

180c

Bleeding Screw

705601017

$6.35

180d

Cap Spring Kit

715900385

$17.59

181

Rear Brake Pad Set

703501199

$116.49

210

Elastic Flange Nut M5

233251494

$2.11

220

Flat Washer

250200040

$1.90

250

Brake Pedal

705601537

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

270

Bearing

705600458

$19.99

275

Nylon Flat Washer M8

250200183

$1.39

350

Bushing

705601622

$14.81

360

Hex. Flange Screw M10 X 55

207605546

$2.11

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Hose Support

705601750

$4.55

445

Hex. Flange Screw M10 X 25

207502546

$2.11

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

455

Master Cylinder Deflector

705601626

$8.60

460

Tuflok Plastic Rivet

293150230

$1.47

475

Tubing 16 Mm 1000Mm Long

219704408

$7.49

500

Reservoir Support

705601644

$14.76

505

Stopper Bracket

705601608

$7.55

520

Pop Rivet 3/16 X ,425

293150293

$0.35
