Description

Price

1

LH SWING ARM - Call your local BRP dealership

706001188

Unavailable

2

Rh Swing Arm

706003427

$296.99

3

Sway Bar

706001078

$95.49

4

Ball Bearing

293350037

$139.99

5

Circlip

293370041

$9.26

6

Nut

706000221

$20.99

7

Cover

706000749

$16.49

8

Circlip 45 mm

293370027

$4.14

9

Lever

706000554

$72.99

10

Washer

250200045

$7.73

11

Elastic Stop Nut M18

232591414

$4.39

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706001000

Unavailable

15

Black Rear Spring

706002785

$126.99

16

Hex. Flange Screw M10 X 55

207605544

$3.38

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

19

Loctite 271, 10 ml

293800005

$26.99

20

Oetiker Clamp

293650162

$9.79

21

Loctite 271, 10 ml

293800005

$26.99

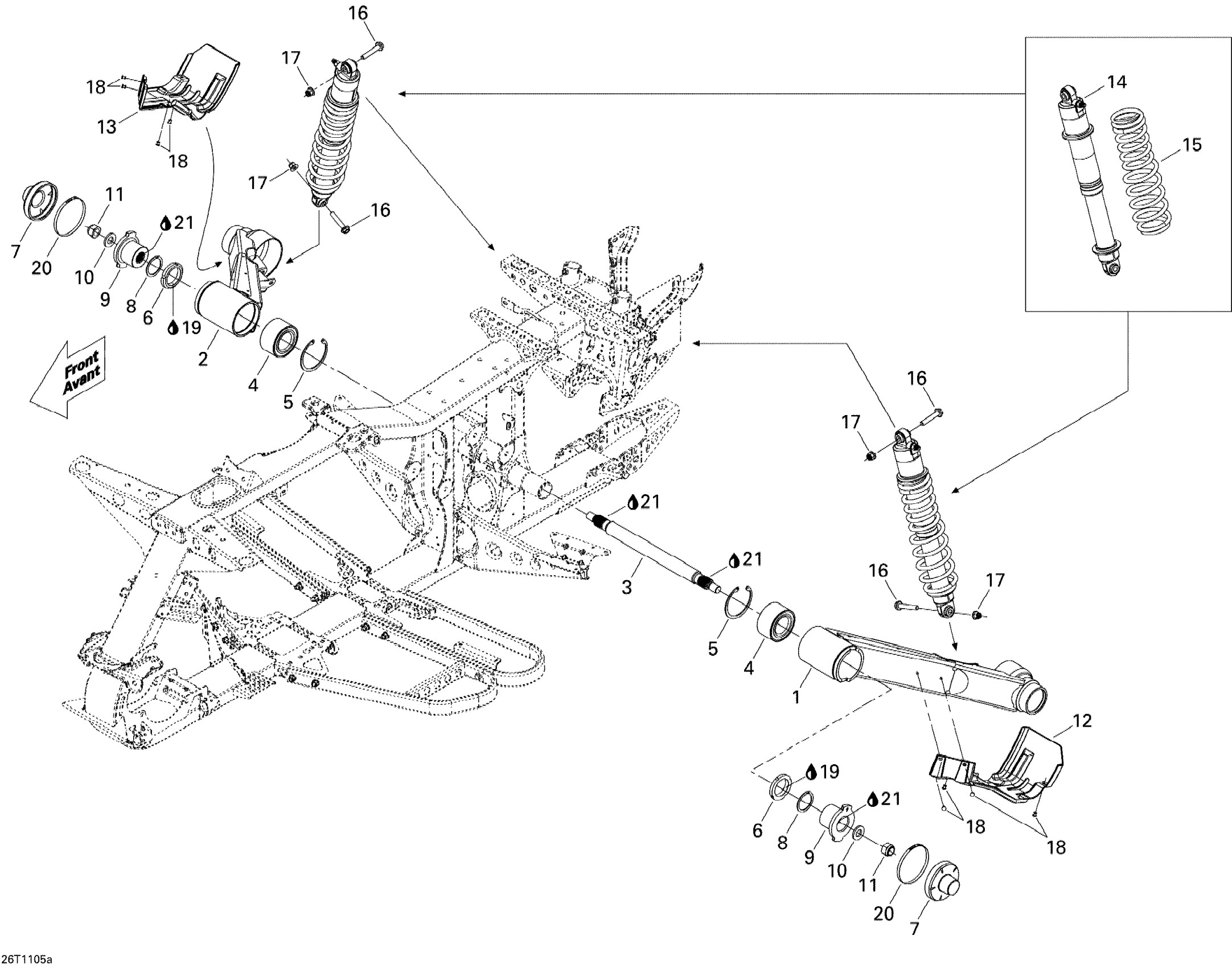

Can-Am Outlander Max 800R EFI Ltd, 2011 08- Rear Suspension Diagram

LH SWING ARM - Call your local BRP dealership

Rh Swing Arm

Sway Bar

Ball Bearing

Circlip

Nut

Cover

Circlip 45 mm

Lever

Washer

Elastic Stop Nut M18

LH PROTECTOR - Call your local BRP dealership

RH PROTECTOR - Call your local BRP dealership

REAR SHOCK - Call your local BRP dealership

Black Rear Spring

Hex. Flange Screw M10 X 55

Hex. Flange Elastic Nut M10

Pop Rivet 3/16" | DS 650 X

Loctite 271, 10 ml

Oetiker Clamp

Loctite 271, 10 ml
