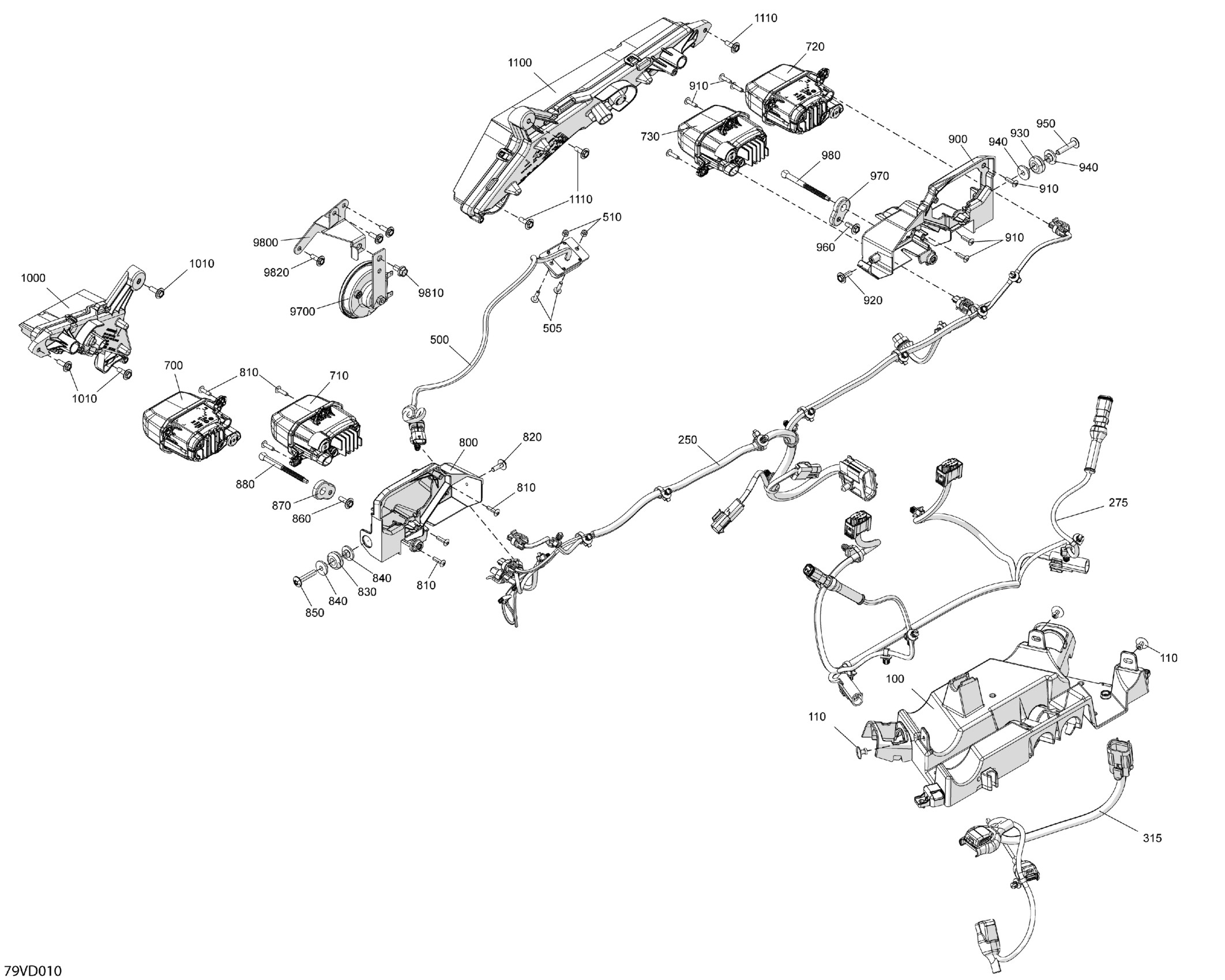

Can-Am CE - Maverick R 996NT - XRS - 7ARK - Neo Yellow - 77" Width SAS, 2024 08- Electric - Front Section Diagram

Description

Price

100

Multi Porpuse Support

710007813

$19.99

110

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

250

Headlight Wiring Harness

710007725

$97.99

275

Junction Wiring Harness

710007724

$119.99

315

Differential Wiring Harness

710007357

$48.99

500

Camera

710007892

$319.99

505

Torx Head Screw M4 X 16

250000797

$2.09

510

Elastic Stop Nut M4

232541484

$0.74

525

Edge Cut Trim 1000Mm

219704548

Unavailable

700

Low Beam Light

710008089

$129.99

710

High Beam Light

710006911

$129.99

715

Washer Cal

517309027

$6.09

720

Low Beam Light

710008089

$129.99

730

High Beam Light

710006911

$129.99

735

Washer Cal

517309027

$6.09

800

LH Front Headlight Support

708500013

$47.99

810

Torx-Truss Pt K40 X 16

250000759

$2.11

820

Screw PT Type K-50 X 16

250000959

$2.11

830

Overmolded Grommet

293720130

$4.69

840

Shoulder Bushing

710004749

$2.69

850

Stainless, Torx Screw M6 X 30

250000842

$2.11

860

Screw PT Type K-50 X 16

250000959

$2.11

870

Ball Socket

293900157

$9.59

880

Ajustment Screw

710005837

$6.35

900

RH Front Headlight Support

708500014

$47.99

910

Torx-Truss Pt K40 X 16

250000759

$2.11

920

Screw PT Type K-50 X 16

250000959

$2.11

930

Overmolded Grommet

293720130

$4.69

940

Shoulder Bushing

710004749

$2.69

950

Stainless, Torx Screw M6 X 30

250000842

$2.11

960

Screw PT Type K-50 X 16

250000959

$2.11

970

Ball Socket

293900157

$9.59

980

Ajustment Screw

710005837

$6.35

1000

LH Auxiliary LED Light

710007638

$459.99

1010

Screw PT Type K-50 X 16

250000959

$2.11

1100

RH Auxiliary LED Light

710007644

$459.99

1110

Screw PT Type K-50 X 16

250000959

$2.11

9700

Horn

710004791

$38.99

9800

Front Horn Support

710008130

$93.99

9810

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

9820

Screw PT Type K-50 X 16

250000959

$2.11
